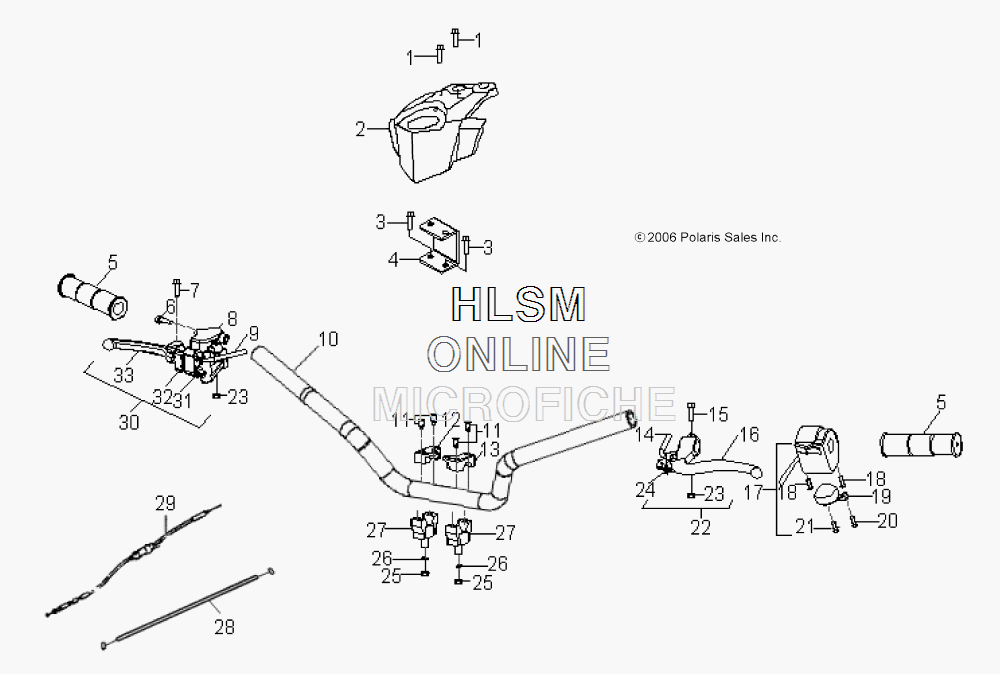

HANDLEBAR для Polaris OUTLAW 50 - BOARDWALK BLUE [A13KA05AF] - 2013 года выпуска
-
№АртикулНазвание
-
10450667 BOLTBOLT
-
20454868-070 POD, HANDLEBAR (BLACK)POD, HANDLEBAR (BLACK)
-
30450701 BOLTBOLT
-
40451790 BRACKET, COVERBRACKET, COVER
-
50451333 GRIP, HANDLEBARGRIP, HANDLEBAR
-
60451788 BOLTBOLT
-
70450806 BOLT, BRAKE LEVER, RIGHT HANDBOLT, BRAKE LEVER, RIGHT HAND
-
80453721 MOUNT, LEVER, BRAKE, RIGHT HANDMOUNT, LEVER, BRAKE, RIGHT HAND
-
90453736 WIRE, BRAKE SWITCHWIRE, BRAKE SWITCH
-
100453882-067 HANDLEBAR (BLACK)HANDLEBAR (BLACK)
-
110450148 BOLTBOLT
-
120450461 COVER, CLAMP, RIGHT HANDCOVER, CLAMP, RIGHT HAND
-
130450460 COVER, CLAMP, LEFT HANDCOVER, CLAMP, LEFT HAND
-
140453815 SENSOR, BRAKESENSOR, BRAKE
-
150450807 BOLTBOLT
-
160450690 LEVER, BRAKE, SIDELEVER, BRAKE, SIDE
-
170453359 ASM., SWITCH, LEFT HAND (INCL. 18-21)ASM., SWITCH, LEFT HAND (INCL. 18-21)
-
180451148 SCREWSCREW
-
190453566 ASM., MANUAL CHOKEASM., MANUAL CHOKE
-
200453708 BOLTBOLT
-
210451149 BOLTBOLT
-
220453916 ASM., LEVER, BRAKE, LEFT HAND (INCL. 14-16,23,24)ASM., LEVER, BRAKE, LEFT HAND (INCL. 14-16,23,24)
-
230450808 NUTNUT
-
240450688 LOCK, HAND BRAKELOCK, HAND BRAKE
-
250450276 NUTNUT
-
260450279 WASHERWASHER
-
270450459 CLAMP, SADDLECLAMP, SADDLE
-
280453883 CABLE, CHOKECABLE, CHOKE
-
290453884 CABLE, THROTTLECABLE, THROTTLE
-
300453917 ASM., LEVER, BRAKE, RIGHT HAND (INCL. 6-9,23,31-33)ASM., LEVER, BRAKE, RIGHT HAND (INCL. 6-9,23,31-33)
-
300453917 ASM., LEVER, BRAKE, RIGHT HAND (INCL. 6-9,23,31-33)ASM., LEVER, BRAKE, RIGHT HAND (INCL. 6-9,23,31-33)
-
310452202 ARM, THROTTLEARM, THROTTLE
-
320450994 BRACKET, BRAKE CABLEBRACKET, BRAKE CABLE
-
330450691 LEVER, BRAKE, SIDE, RIGHT HANDLEVER, BRAKE, SIDE, RIGHT HAND
