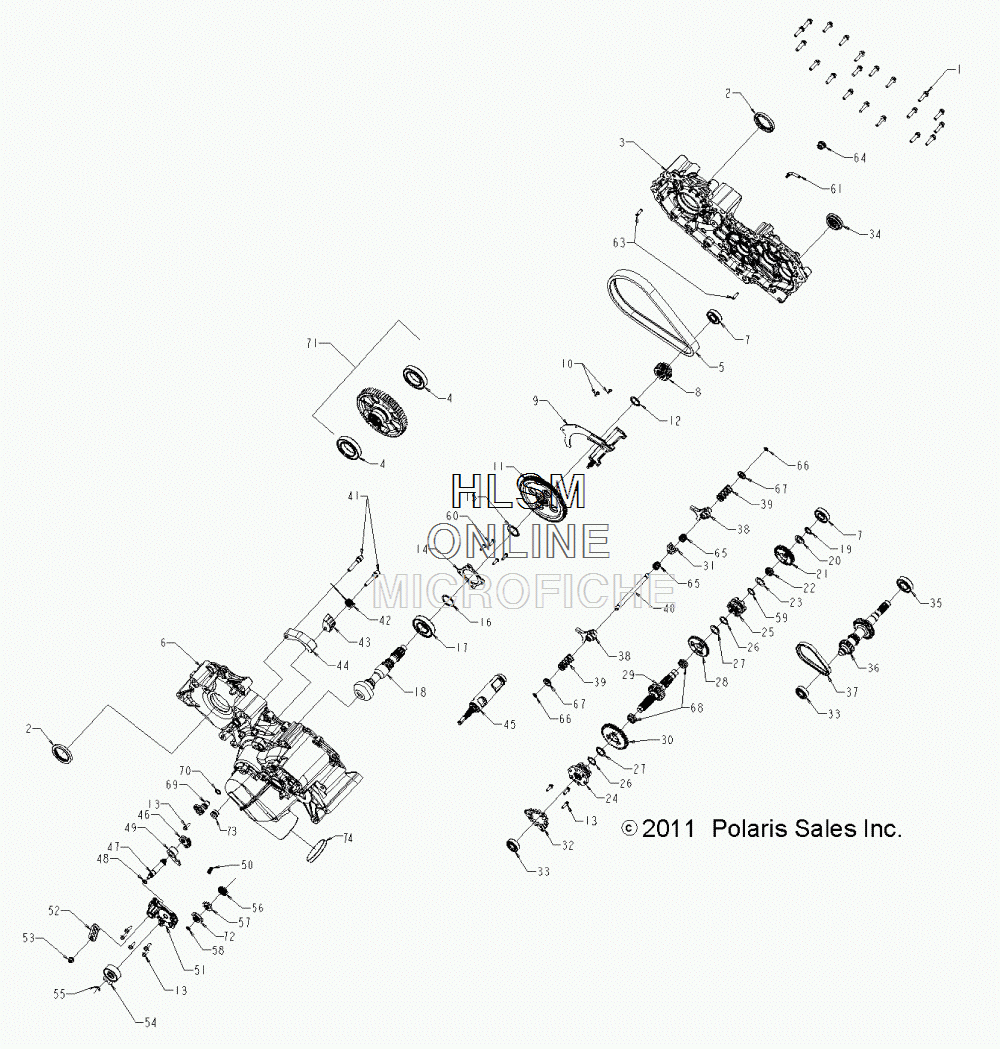

GEARCASE для Polaris HAWKEYE 400 HO 2X4 - (BLUE FIRE) METALLIC [A13MB46FZ] - 2013 года выпуска`
-
№АртикулНазвание
-
1332928 ASM., GEARCASE (INCL. ALL)ASM., GEARCASE (INCL. ALL)
-
13234114 SCREWSCREW
-
23233878 SEAL, TRIPLE LIPSEAL, TRIPLE LIP
-
33235264 GEARCASE. COVER, LEFT HAND, MACHGEARCASE. COVER, LEFT HAND, MACH
-
43233268 BEARING, BALLBEARING, BALL
-
53234057 CHAINCHAIN
-
63235265 GEARCASE, MAIN, RIGHT HAND, MACHGEARCASE, MAIN, RIGHT HAND, MACH
-
73233018 BEARING, BALLBEARING, BALL
-
83234060 SPROCKET, 19TSPROCKET, 19T
-
93234061 DEFLECTOR, OILDEFLECTOR, OIL
-
103233749 SCREW, TAPPING W/PLAIN WASHERSCREW, TAPPING W/PLAIN WASHER
-
113234062 GEAR OUTPUT, 91TGEAR OUTPUT, 91T
-
123233699 RING, RETAININGRING, RETAINING
-
133234247 SCREW, TAPPINGSCREW, TAPPING
-
143234063 COVER, CENTER DRIVE BEARINGCOVER, CENTER DRIVE BEARING
-
153233364 RING, RETAININGRING, RETAINING
-
163234271 SHIMSHIM
-
173234065 BEARING, BALLBEARING, BALL
-
183234263 PINION, CENTER DRIVE, 13TPINION, CENTER DRIVE, 13T
-
193234067 RING, RETAININGRING, RETAINING
-
203233176 WASHER, THRUSTWASHER, THRUST
-
213234352 GEAR, SPURGEAR, SPUR
-
223233009 BEARING, NEEDLEBEARING, NEEDLE
-
233233855 WASHERWASHER
-
243234257 DOG, L/PDOG, L/P
-
253234258 DOG, ENGAGEMENT, 6 FACEDOG, ENGAGEMENT, 6 FACE
-
263233306 RING, RETAININGRING, RETAINING
-
273234248 WASHER, THRUSTWASHER, THRUST
-
283234290 SPROCKET, 38T, 6 FACESPROCKET, 38T, 6 FACE
-
293234280 SHAFT, REVERSE, 26TSHAFT, REVERSE, 26T
-
303234291 GEAR, 33T, 6 FACEGEAR, 33T, 6 FACE
-
313234073 COLLAR, SHIFTCOLLAR, SHIFT
-
323233915 PLATE, PARK, 12 FACEPLATE, PARK, 12 FACE
-
333234274 BEARING, BALLBEARING, BALL
-
343234851 SEALSEAL
-
353233019 BEARINGBEARING
-
363234348 SHAFT, INPUTSHAFT, INPUT
-
373234264 CHAINCHAIN
-
383234077 FORK, SHIFTFORK, SHIFT
-
393234078 SPRING, COMPRESSIONSPRING, COMPRESSION
-
403234079 RAIL, SHIFT SHAFTRAIL, SHIFT SHAFT
-
413233432 PIN, DOWELPIN, DOWEL
-
423233431 SPRING, TORSIONSPRING, TORSION
-
433233434 CAM, CHAIN TENSIONERCAM, CHAIN TENSIONER
-
443233433 SHOE, CHAIN TENSIONERSHOE, CHAIN TENSIONER
-
453234360 DRUM, SHIFTDRUM, SHIFT
-
463233832 GEAR, SECTOR 31TGEAR, SECTOR 31T
-
473233831 SHAFT, SHIFTSHAFT, SHIFT
-
483233869 O-RINGO-RING
-
493233829 PAWL, DETENTPAWL, DETENT
-
503234578 SPRING, COMPRESSIONSPRING, COMPRESSION
-
513234188 COVER, SECTOR GEAR W/PINSCOVER, SECTOR GEAR W/PINS
-
523234584 BELLCRANKBELLCRANK
-
533233961 NUT, LOCKNUT, LOCK
-
543233835 SWITCH, ROTARY, 6 PINSWITCH, ROTARY, 6 PIN
-
553233834 RING, RETAININGRING, RETAINING
-
563233839 GEAR, SECTOR, 16TGEAR, SECTOR, 16T
-
573233909 STAR, DETENTSTAR, DETENT
-
583233076 O-RINGO-RING
-
593234336 RING, RETAININGRING, RETAINING
-
603234086 SCREWSCREW
-
613234230 TUBE, VENTTUBE, VENT
-
633234244 PIN, DOWELPIN, DOWEL
-
643233194 PLUGPLUG
-
653234089 SPRING, COMPRESSIONSPRING, COMPRESSION
-
663234090 RING, RETAININGRING, RETAINING
-
673234091 WASHER, CUPWASHER, CUP
-
683233103 BEARING, NEEDLEBEARING, NEEDLE
-
694012167 SENSOR, SPEEDSENSOR, SPEED
-
703234302 O-RINGO-RING
-
713234421 SUBASM., SHAFT, 59TSUBASM., SHAFT, 59T
-
723234081 DISC, LOCKOUTDISC, LOCKOUT
-
733234529 PLUG, MAGNETICPLUG, MAGNETIC
-
743022301 PLUG, EXPANSIONPLUG, EXPANSION
