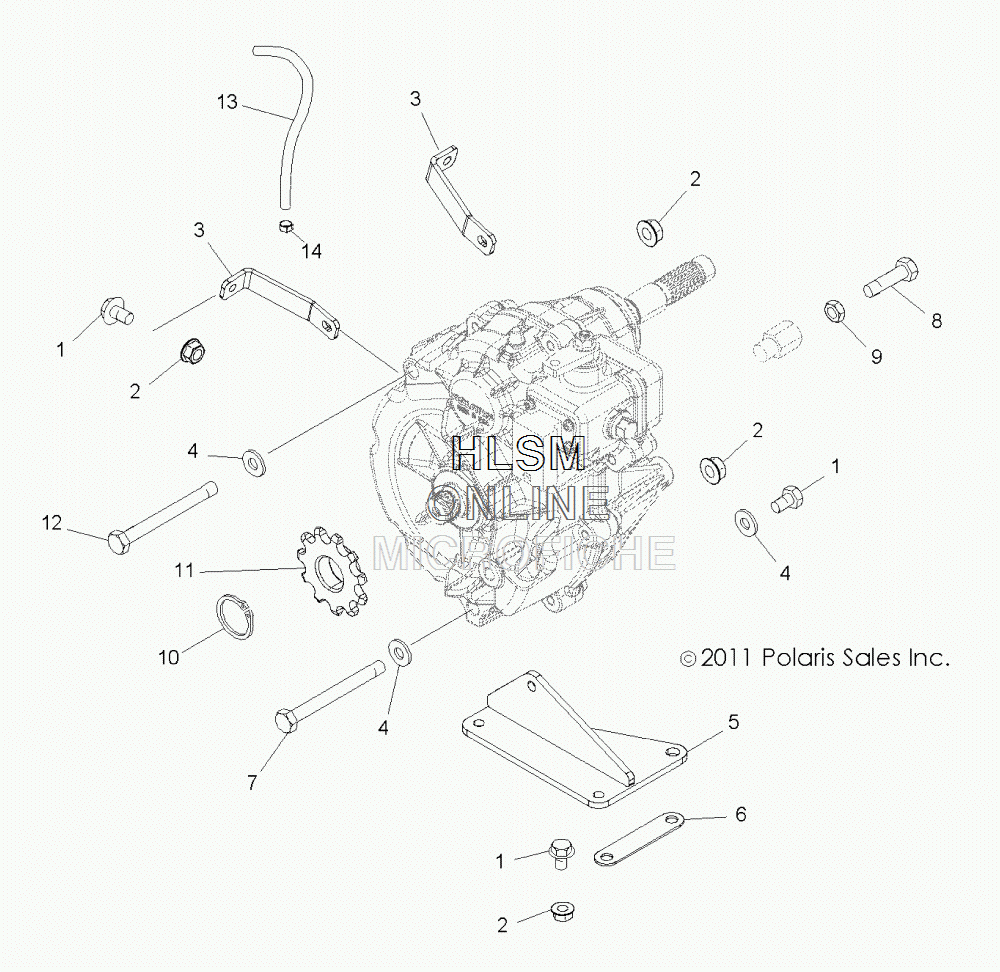

GEARCASE - MAIN - MOUNTING для Polaris TRAIL BLAZER 330 INTL [A12NA32FA] - 2012 года выпуска
-
№АртикулНазвание
-
17518364 BOLT, FLANGEBOLT, FLANGE
-
27547180 NUT, FLANGEDNUT, FLANGED
-
35248185 BRACKET, MOUNT, TRANSMISSIONBRACKET, MOUNT, TRANSMISSION
-
47555806 WASHER, FLATWASHER, FLAT
-
51012886-067 MOUNT, TRANSMISSION, BLACKMOUNT, TRANSMISSION, BLACK
-
65243296 SPACERSPACER
-
77517646 SCREWSCREW
-
87517631 SCREWSCREW
-
97542404 NUTNUT
-
107710434 RING, SNAPRING, SNAP
-
113221043 SPROCKET, 11TSPROCKET, 11T
-
127517640 SCREWSCREW
-
138450003-1525 LINE, FUELLINE, FUEL
-
147080307 CLAMP, HOSECLAMP, HOSE
Все узлы модели:
- AIR INTAKE SYSTEM
- AXLE - REAR W/ HOUSING
- BATTERY
- BRAKE - FRONT CALIPER
- BRAKE - FRONT MASTER CYLINDER
- BRAKE - REAR CALIPER
- BRAKE - REAR CALIPER - MOUNTING
- BRAKE - REAR MASTER CYLINDER W/ FOOT PEDAL
- BRAKE - VALVE SYSTEM W/ LINES
- BUMPER - FRONT
- CAB - FRONT
- CAB - REAR
- CAMSHAFT W/ VALVE ASSY.
- CARBURETOR - BRACKET
- CARBURETOR - LOWER
- CARBURETOR - UPPER
- CLUTCH - PRIMARY
- CLUTCH - SECONDARY
- CLUTCH COVER
- CONTROLS- THROTTLE ASSY/CABLE
- COOLING SYSTEM
- CRANKCASE
- CRANKSHAFT W/ CYLINDER
- CYLINDER HEAD W/ CYLINDER
- DECALS
- ELECTRICAL COMPONENTS 1
- ELECTRICAL COMPONENTS 2
- ENGINE - MOUNTING
- EXHAUST SYSTEM
- FRAME
- FUEL PUMP
- FUEL TANK
- GAUGES AND INDICATORS
- GEAR SELECTOR
- GEARCASE
- • GEARCASE - MAIN - MOUNTING
- HANDLEBAR - CONTROL ASSY.
- HEADLIGHT
- IGNITION SYSTEM
- OIL PUMP AND OIL FILTER
- RECOIL STARTER
- SHORT BLOCK
- STARTING MOTOR
- STEERING POST
- STEERING POST LOCK
- SUSPENSION - A-ARM/STRUT - MOUNTING
- SUSPENSION - FRONT STRUT
- SUSPENSION - REAR SHOCK
- SUSPENSION - SWING ARM
- TAIL LIGHT
- TOOL KIT
- WHEEL - FRONT
- WHEEL - REAR
- WIRE HARNESS
