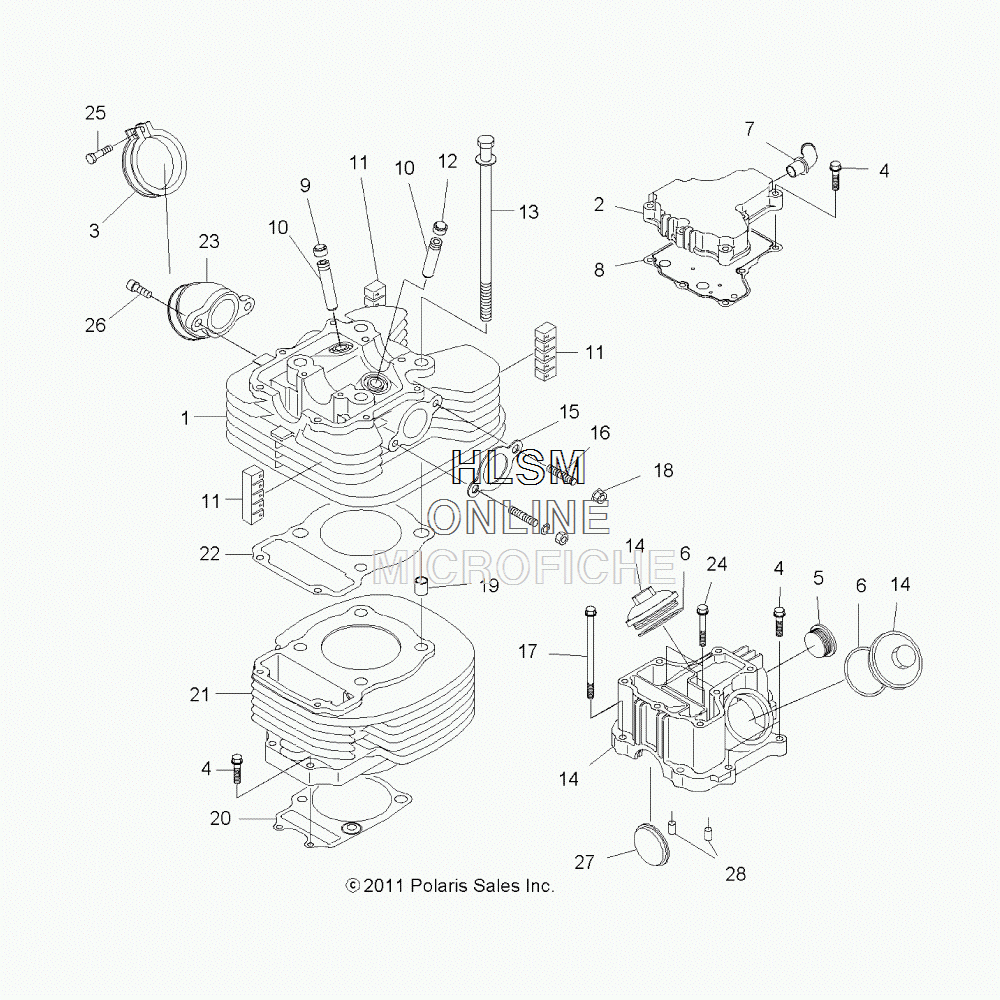

CYLINDER HEAD W/ CYLINDER для Polaris TRAIL BLAZER 330 [A12NA32AA] - 2012 года выпуска

  • №
    Артикул
    Название
  • 1
    3089270 ASM., CYLINDER HEAD (INCL. 9,10,12,14,16,28)
    ASM., CYLINDER HEAD (INCL. 9,10,12,14,16,28)
  • 2
    3089271 ASM., COVER, BREATHER (INCL. 7)
    ASM., COVER, BREATHER (INCL. 7)
  • 3
    3090180 ASM., ADAPTER BAND (INCL. 25)
    ASM., ADAPTER BAND (INCL. 25)
  • 4
    3084874 BOLT, FLANGE
    BOLT, FLANGE
  • 5
    3089272 ASM., PLUG
    ASM., PLUG
  • 6
    3086414 O-RING
    O-RING
  • 7
    3085850 ASM., PIPE
    ASM., PIPE
  • 8
    3087034 GASKET, BREATHER COVER
    GASKET, BREATHER COVER
  • 9
    3084858 SEAL, INTAKE VALVE
    SEAL, INTAKE VALVE
  • 10
    3084994 GUIDE, VALVE
    GUIDE, VALVE
  • 11
    3084798 FIN, DAMPER A
    FIN, DAMPER A
  • 12
    3084859 SEAL, EXHAUST VALVE
    SEAL, EXHAUST VALVE
  • 13
    3086418 ASM., BOLT AND WASHER
    ASM., BOLT AND WASHER
  • 14
    3087259 COVER, VALVE
    COVER, VALVE
  • 15
    3086421 GASKET, EXHAUST
    GASKET, EXHAUST
  • 16
    3090095 STUD
    STUD
  • 17
    3087160 BOLT, FLANGE
    BOLT, FLANGE
  • 18
    3082910 NUT, FLANGE
    NUT, FLANGE
  • 19
    3087266 KNOCK, PIPE
    KNOCK, PIPE
  • 20
    3086407 GASKET, CYLINDER
    GASKET, CYLINDER
  • 21
    3087236 UNIT, CYLINDER
    UNIT, CYLINDER
  • 22
    3087238 GASKET, HEAD
    GASKET, HEAD
  • 23
    3087050 ASM., ADAPTER
    ASM., ADAPTER
  • 24
    3087159 BOLT, FLANGE
    BOLT, FLANGE
  • 25
    3081497 ASM., SCREW AND WASHER
    ASM., SCREW AND WASHER
  • 26
    3081330 BOLT, SOCKET, HEAD
    BOLT, SOCKET, HEAD
  • 27
    3086416 GASKET, CAM
    GASKET, CAM
  • 28
    3087275 KNOCK, PIPE
    KNOCK, PIPE
