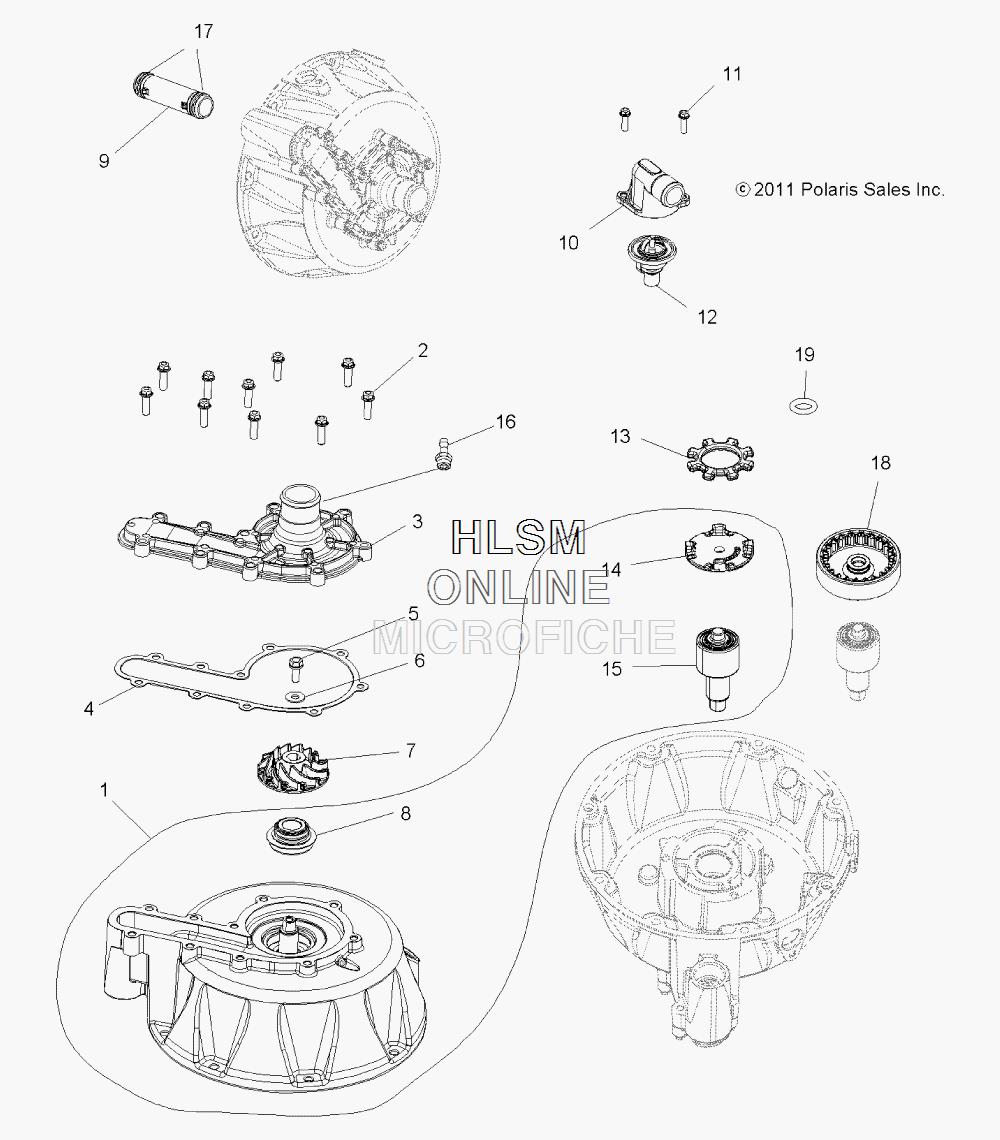

COOLING SYSTEM - WATER PUMP для Polaris SPORTSMAN XP TOURING EPS 850 INTL [A12DN8EFW] - 2012 года выпуска

  • №
    Артикул
    Название
  • 1
    2203939 KIT, COVER, STATOR W/WATER PUMP (INCL. 8,14,15) (BUILT 9/05/11 AND BEFORE)
    KIT, COVER, STATOR W/WATER PUMP (INCL. 8,14,15) (BUILT 9/05/11 AND BEFORE)
  • 1
    1204236 ASM., STATOR COVER W/WATER PUMP (INCL. 2-8,14,15, RETAINER, STATOR WIRE, STATOR COVER, STATOR, FITTING) (BUILT 9/05/11 AND BEFORE)
    ASM., STATOR COVER W/WATER PUMP (INCL. 2-8,14,15, RETAINER, STATOR WIRE, STATOR COVER, STATOR, FITTING) (BUILT 9/05/11 AND BEFORE)
  • 1
    1204491 ASM., STATOR COVER W/WATER PUMP (INCL. 2-8,14,15, RETAINER, STATOR WIRE, STATOR COVER, STATOR, FITTING) (BUILT 9/06/11 AND AFTER)
    ASM., STATOR COVER W/WATER PUMP (INCL. 2-8,14,15, RETAINER, STATOR WIRE, STATOR COVER, STATOR, FITTING) (BUILT 9/06/11 AND AFTER)
  • 2
    7518855 SCREW
    SCREW
  • 3
    5137326 COVER, WATER PUMP
    COVER, WATER PUMP
  • 4
    5412954 GASKET, COVER
    GASKET, COVER
  • 5
    7518854 BOLT
    BOLT
  • 6
    7556451 WASHER, FLAT
    WASHER, FLAT
  • 7
    5632427 IMPELLER, WATER PUMP, CAST
    IMPELLER, WATER PUMP, CAST
  • 8
    3610136 SEAL
    SEAL
  • 9
    5334925 TUBE, WATER TRANSFER (INCL. O-RINGS)
    TUBE, WATER TRANSFER (INCL. O-RINGS)
  • 10
    5632606 COVER, THERMOSTAT
    COVER, THERMOSTAT
  • 11
    7518576 SCREW
    SCREW
  • 12
    7052445 THERMOSTAT
    THERMOSTAT
  • 13
    5413433 COUPLER, INSERT (BUILT 9/05/11 AND BEFORE)
    COUPLER, INSERT (BUILT 9/05/11 AND BEFORE)
  • 14
    5136306 COUPLER, WATER PUMP BEARING (BUILT 9/05/11 AND BEFORE)
    COUPLER, WATER PUMP BEARING (BUILT 9/05/11 AND BEFORE)
  • 15
    3514633 BEARING W/SHAFT
    BEARING W/SHAFT
  • 17
    5412955 O-RING
    O-RING
  • 18
    5137242 COUPLER, SPLINE INT, WP BEARING (BUILT 9/06/11 AND AFTER)
    COUPLER, SPLINE INT, WP BEARING (BUILT 9/06/11 AND AFTER)
  • 19
    5414286 O-RING
    O-RING
