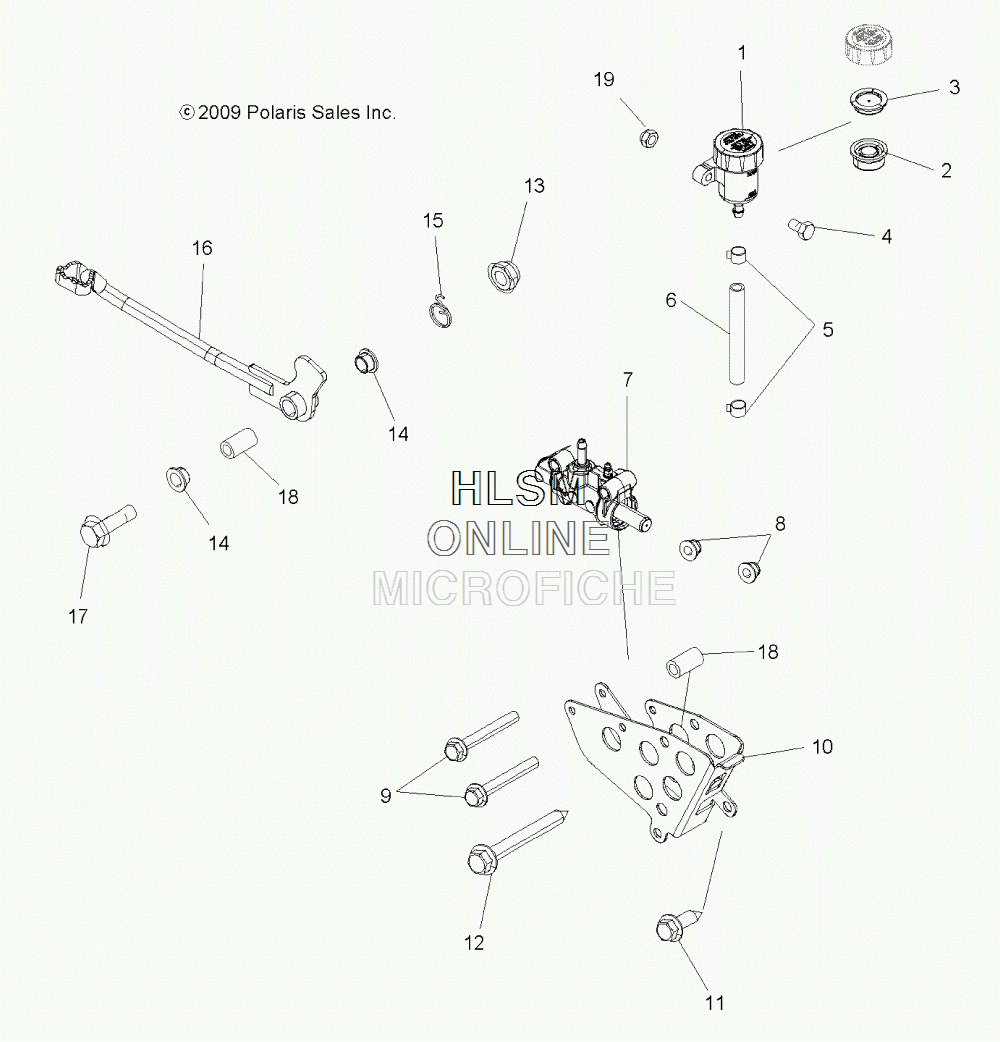

BRAKE - PEDAL W/MASTER CYLINDER для Polaris SPORTSMAN XP 850 - POLARIS PURSUIT CAMO [A12ZN85AQ] - 2012 года выпуска
-
№АртикулНазвание
-
11911224 ASM., RESERVOIR, BRAKE, REAR (INCL. 2,3, CAP)ASM., RESERVOIR, BRAKE, REAR (INCL. 2,3, CAP)
-
25413262 DIAPHRAGM, BRAKE RESERVOIRDIAPHRAGM, BRAKE RESERVOIR
-
35437041 RING, BRAKE RESERVOIRRING, BRAKE RESERVOIR
-
47518533 BOLT, FLANGE, BLACKBOLT, FLANGE, BLACK
-
57080003 CLAMP, HOSECLAMP, HOSE
-
61911267-826 HOSE, RESERVOIR, BRAKEHOSE, RESERVOIR, BRAKE
-
71911123 ASM., MASTER CYLINDERASM., MASTER CYLINDER
-
87547274 NUT, NYLOK, FLANGENUT, NYLOK, FLANGE
-
97517950 SCREWSCREW
-
105251561 BRACKET, MOUNT, BRAKEBRACKET, MOUNT, BRAKE
-
117518555 BOLT, FLANGEBOLT, FLANGE
-
127518677 BOLTBOLT
-
137547333 NUT, FLANGENUT, FLANGE
-
145433189 BUSHING, PIVOT, PEDALBUSHING, PIVOT, PEDAL
-
157041750 SPRING, TORSION, BRAKESPRING, TORSION, BRAKE
-
161911207-067 LEVER, BRAKE, BLACKLEVER, BRAKE, BLACK
-
177518559 BOLTBOLT
-
185135720 SPACERSPACER
-
197546703 NUT, NYLOKNUT, NYLOK
