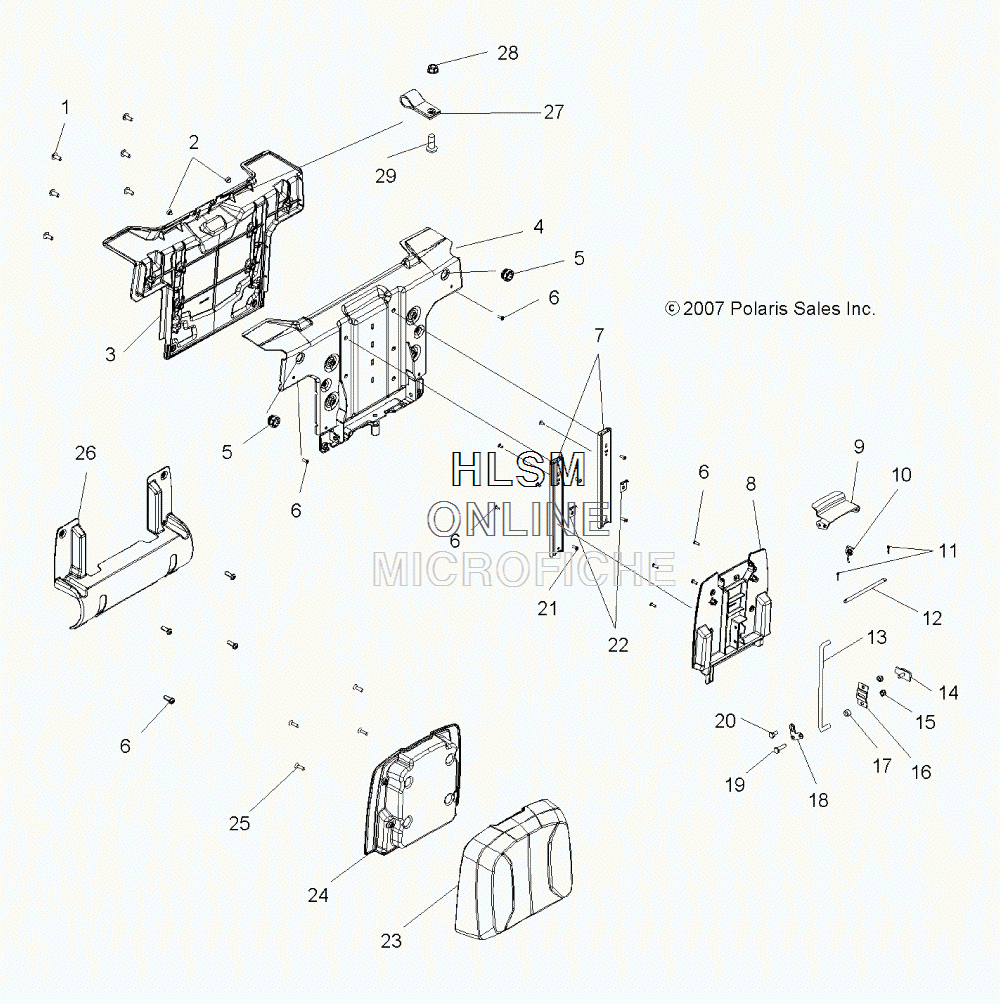

SEAT - PASSENGER - BACK для Polaris SPORTSMAN X2 550 INTL [A12TN55FA] - 2012 года выпуска`
-
№АртикулНазвание
-
17518601 SCREWSCREW
-
25413087 BUMPER, RUBBERBUMPER, RUBBER
-
35436531 BASE COVER, PASSENGER SEATBASE COVER, PASSENGER SEAT
-
41015676-067 SUPPORT, SEAT BACKSUPPORT, SEAT BACK
-
55412994 GROMMETGROMMET
-
67512076 SCREWSCREW
-
77081379 SLIDE, SINGLE, EXTENSION (PAIR)SLIDE, SINGLE, EXTENSION (PAIR)
-
85436532 BASE SLIDER, PASSENGER SEATBASE SLIDER, PASSENGER SEAT
-
95250944 PLATE, HANDLE, SEATPLATE, HANDLE, SEAT
-
107043219 SPRINGSPRING
-
117661010 PINPIN
-
125135336 ROD, PASSENGER SEATROD, PASSENGER SEAT
-
135250162 ROD, HANDLE, PASSENGER BACKROD, HANDLE, PASSENGER BACK
-
145631980 LATCH, SLIDERLATCH, SLIDER
-
157542122 NUTNUT
-
165249903 PLATE RETAINER SLIDEPLATE RETAINER SLIDE
-
177556373 SPACERSPACER
-
185250163 PLATE SLIDER, PIVOTPLATE SLIDER, PIVOT
-
197518615 SCREW, SHOULDERSCREW, SHOULDER
-
207512102 BOLTBOLT
-
217518256 SCREWSCREW
-
225250454 BRACKET, STOPBRACKET, STOP
-
235436149-070 BUN, SEATBUN, SEAT
-
245436150 BASE, SEATBASE, SEAT
-
257517652 SCREWSCREW
-
265436533-070 COVER, LATCHCOVER, LATCH
-
275813086 HANDLE, SEATHANDLE, SEAT
-
287542153 NUT, FLANGENUT, FLANGE
-
297517685 SCREWSCREW
