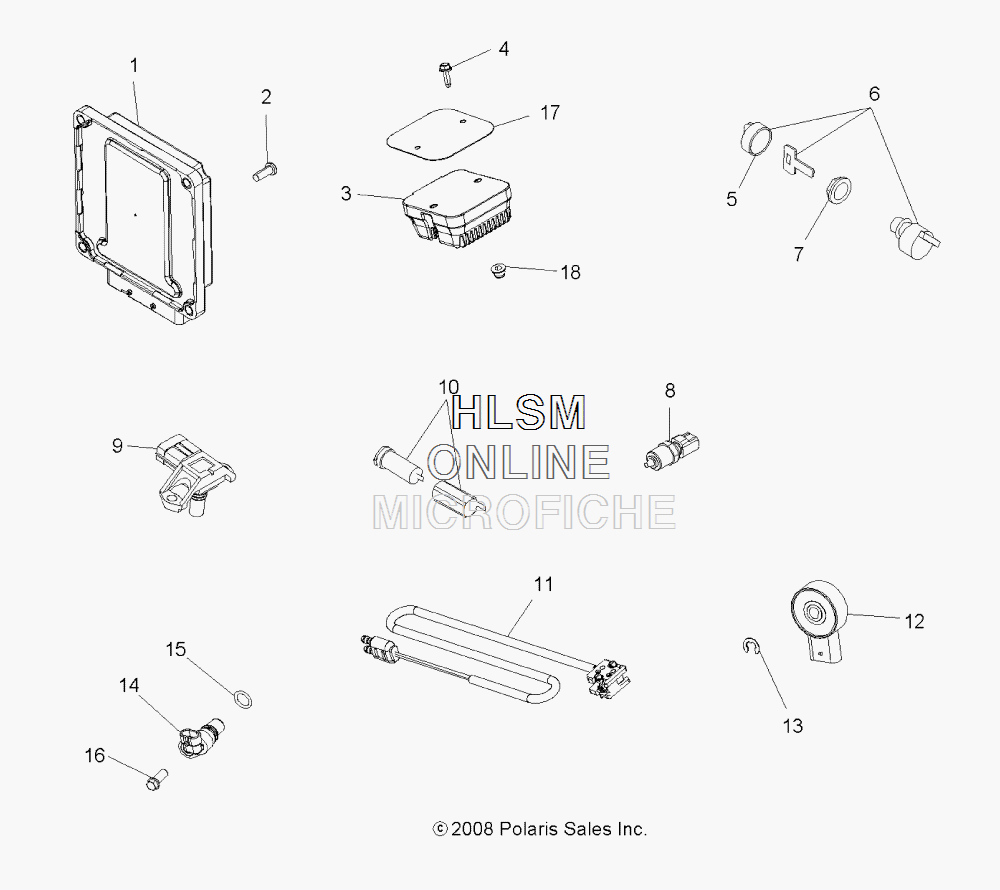

ELECTRICAL COMPONENTS для Polaris SPORTSMAN X2 550 - SAGEBRUSH GREEN METALLIC [A12TN55AA] - 2012 года выпуска

  • №
    Артикул
    Название
  • 1
    4012561 MODULE, ENGINE CONTROL
    MODULE, ENGINE CONTROL
  • 2
    7512098 SCREW
    SCREW
  • 3
    4012678 REGULATOR, VOLTAGE
    REGULATOR, VOLTAGE
  • 4
    7519202 SCREW
    SCREW
  • 5
    5433534 COVER, KEY
    COVER, KEY
  • 6
    4012165 SWITCH, KEY, 3 POSITION
    SWITCH, KEY, 3 POSITION
  • 7
    5433733 NUT, IGNITION
    NUT, IGNITION
  • 8
    3089892 SENSOR, WATER TEMP
    SENSOR, WATER TEMP
  • 9
    3090141 SENSOR, T-MAP
    SENSOR, T-MAP
  • 10
    4010638 RECEPTACLE, POD, 12 V
    RECEPTACLE, POD, 12 V
  • 11
    2202794 KIT, BRAKE LIGHT SWITCH (BRAKE LIGHTS)
    KIT, BRAKE LIGHT SWITCH (BRAKE LIGHTS)
  • 12
    3233835 SWITCH (GEAR POSITION)
    SWITCH (GEAR POSITION)
  • 13
    3233834 RING, RETAINING
    RING, RETAINING
  • 14
    4012167 SENSOR, SPEED (ATV SPEED)
    SENSOR, SPEED (ATV SPEED)
  • 14
    7670116 CLIP, ROUTING, HINGED (FOR USE W/SPEED SENSOR)
    CLIP, ROUTING, HINGED (FOR USE W/SPEED SENSOR)
  • 15
    3234302 O-RING
    O-RING
  • 16
    3234329 SCREW
    SCREW
  • 17
    5253294 COVER, VOLTAGE REGULATOR
    COVER, VOLTAGE REGULATOR
  • 18
    7547274 NUT, FLANGE
    NUT, FLANGE
