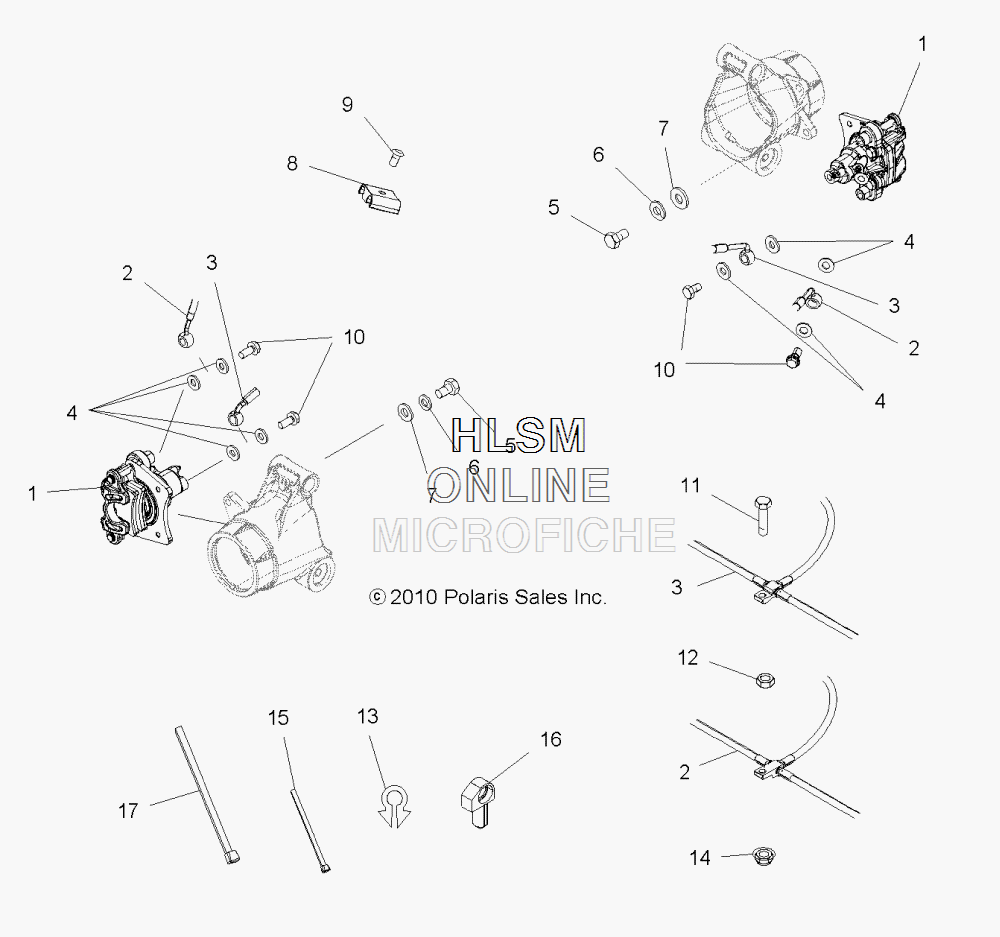

BRAKE - REAR BRAKE LINES для Polaris SPORTSMAN FOREST 500 - MEDIUM (YELLOW) [A12MH50FY] - 2012 года выпуска
-
№АртикулНазвание
-
11911122 ASM., CALIPER, BRAKEASM., CALIPER, BRAKE
-
21911788 LINE, BRAKE, REARLINE, BRAKE, REAR
-
31911789 LINE, BRAKE, REAR, AUX.LINE, BRAKE, REAR, AUX.
-
45413212 SEALSEAL
-
57512457 SCREWSCREW
-
67552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
77556188 WASHER, FLATWASHER, FLAT
-
87670126 CLIP, RETAINING, DUALCLIP, RETAINING, DUAL
-
97517756 SCREWSCREW
-
101910499 BOLT, BANJOBOLT, BANJO
-
117515153 SCREWSCREW
-
127542105 NUTNUT
-
137080756 CLIP, SNAP INCLIP, SNAP IN
-
147542153 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
157080138 CABLE TIECABLE TIE
-
167670102 CLIPCLIP
-
177080492 CABLE TIE, 11 INCHCABLE TIE, 11 INCH
