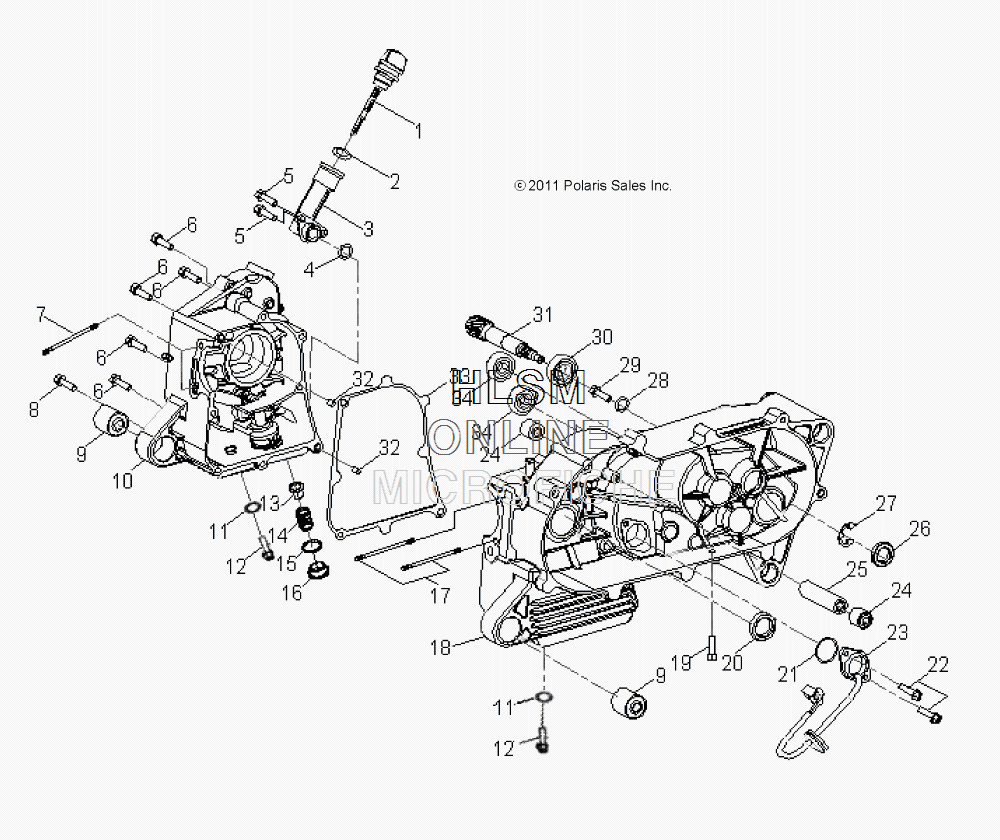

CRANKCASE для Polaris SPORTSMAN 90 [A12FA09AA] - 2012 года выпуска
-
№АртикулНазвание
-
160454772 ASM., ENGINEASM., ENGINE
-
10453542 DIPSTICK, OILDIPSTICK, OIL
-
20453508 O-RINGO-RING
-
30454687 NECK, OIL FILLERNECK, OIL FILLER
-
40453827 O-RINGO-RING
-
50453519 BOLTBOLT
-
60453612 BOLTBOLT
-
70453613 STUDSTUD
-
80453614 BOLTBOLT
-
90450587 BUSHING, RUBBERBUSHING, RUBBER
-
100454688 CRANKCASE, RIGHT HANDCRANKCASE, RIGHT HAND
-
110452133 WASHER, FLATWASHER, FLAT
-
120452132 BOLTBOLT
-
130452369 SCREENSCREEN
-
140452370 SPRING, SCREENSPRING, SCREEN
-
150452371 O-RINGO-RING
-
160454689 CAP, OIL FILLCAP, OIL FILL
-
170453616 STUDSTUD
-
180454818 CRANKCASE, LEFT HANDCRANKCASE, LEFT HAND
-
190450325 BOLTBOLT
-
200453522 SEAL, OILSEAL, OIL
-
210452129 O-RINGO-RING
-
220452138 BOLTBOLT
-
230452128 SENSOR, GEAR POSITIONSENSOR, GEAR POSITION
-
240451139 BUSHING, RUBBERBUSHING, RUBBER
-
250453617 SPACER, COLLARSPACER, COLLAR
-
260450200 SEAL, OILSEAL, OIL
-
270450198 CIRCLIPCIRCLIP
-
280453460 WASHER, FLATWASHER, FLAT
-
290450158 BOLTBOLT
-
300450199 BEARINGBEARING
-
310453456 SHAFT, DRIVESHAFT, DRIVE
-
320452342 PIN, DOWELPIN, DOWEL
-
330453419 GASKETGASKET
-
340450254 BEARING, BALLBEARING, BALL
