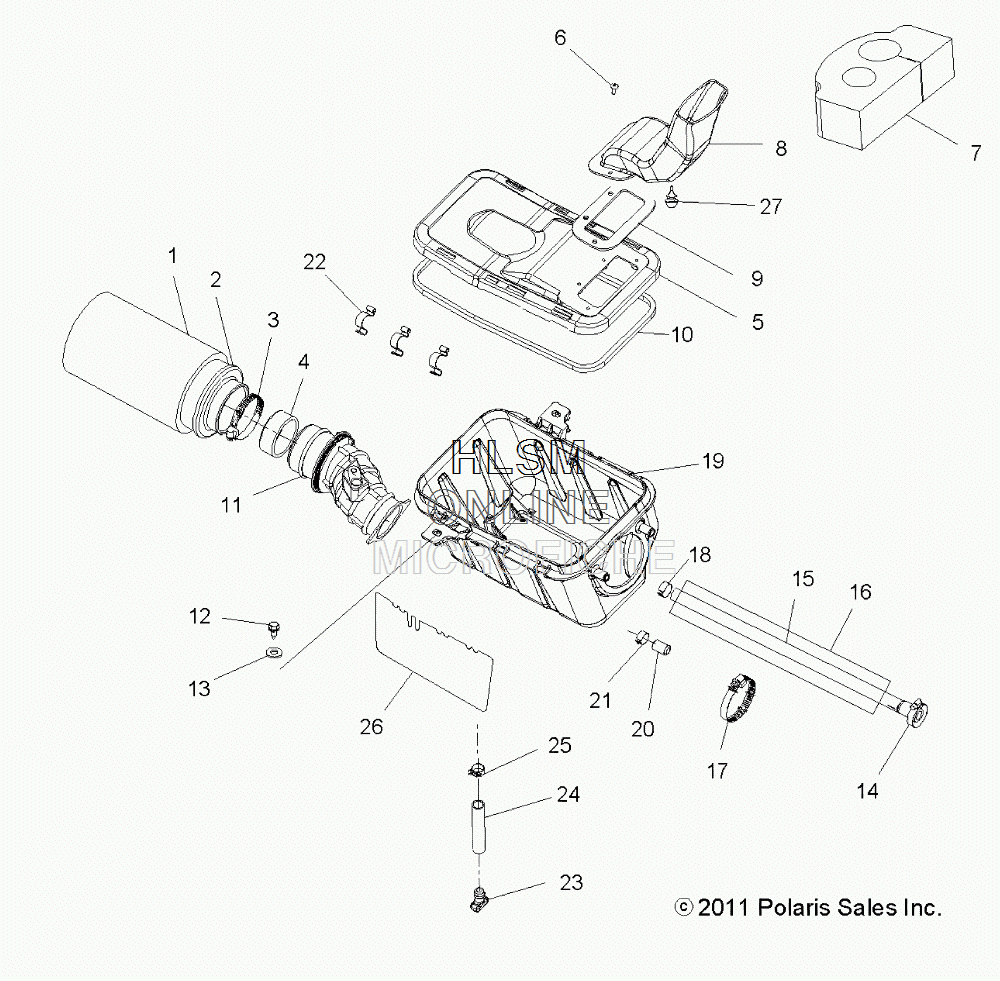

AIR INTAKE SYSTEM для Polaris SPORTSMAN 800 EFI - SAGEBRUSH GREEN METALLIC [A12MH76AX] - 2012 года выпуска
-
№АртикулНазвание
-
15811633 FILTER, PRECLEAN SLEEVEFILTER, PRECLEAN SLEEVE
-
27080595 FILTER, AIRFILTER, AIR
-
37080707 CLAMP, NARROW BANDCLAMP, NARROW BAND
-
45433847 SLEEVE, CARBURETOR, INNERSLEEVE, CARBURETOR, INNER
-
55432868 COVER, AIR BOXCOVER, AIR BOX
-
67517317 SCREWSCREW
-
75811626 SEAL, FOAMSEAL, FOAM
-
85438625 DUCT, AIR INLETDUCT, AIR INLET
-
95411422 GASKET, INTAKEGASKET, INTAKE
-
105812829 SEAL, COVERSEAL, COVER
-
115414037 BOOT, AIR INTAKE, EFIBOOT, AIR INTAKE, EFI
-
127515179 SCREWSCREW
-
137555859 WASHER, FLATWASHER, FLAT
-
147080694 CLAMP, HOSE, SPRINGCLAMP, HOSE, SPRING
-
155414094 HOSE, BREATHER, SPLITHOSE, BREATHER, SPLIT
-
168450108-34 SHEATH, REFLECTIVE SLEEVESHEATH, REFLECTIVE SLEEVE
-
177080511 CLAMP, NARROW BANDCLAMP, NARROW BAND
-
187080699 CLAMP, HOSECLAMP, HOSE
-
195438552 BOX, AIRBOX, AIR
-
205433396 CAP, ENDCAP, END
-
217080534 CLAMP, HOSECLAMP, HOSE
-
225242044 CLIPCLIP
-
235435299 PLUG, TRAPPLUG, TRAP
-
248450059-150 LINE, FUELLINE, FUEL
-
257080650 CLAMP, HOSECLAMP, HOSE
-
265813652 FOILFOIL
-
275412465 BUMPERBUMPER
