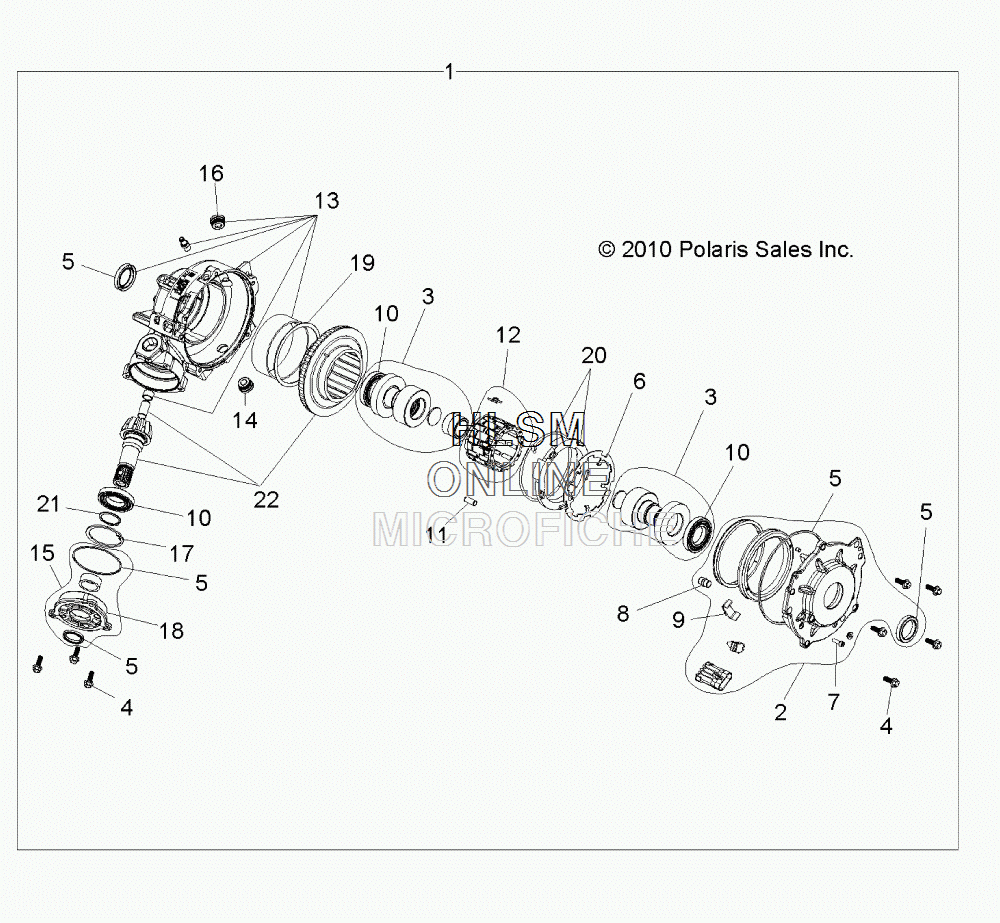

GEARCASE - FRONT для Polaris SPORTSMAN 400 HO 4X4 - BOARDWALK BLUE [A12MH46AF] - 2012 года выпуска

  • №
    Артикул
    Название
  • 1
    1332956 ASM., GEARCASE, AWD (INCL. ALL)
    ASM., GEARCASE, AWD (INCL. ALL)
  • 2
    3235162 ASM., COVER, OUTPUT
    ASM., COVER, OUTPUT
  • 3
    3234936 KIT, OUTPUT HUB (INCL. HUB ASM. FEMALE, HUB ASM. MALE)
    KIT, OUTPUT HUB (INCL. HUB ASM. FEMALE, HUB ASM. MALE)
  • 4
    3234405 KIT, BOLT (INCL. 8 SCREWS)
    KIT, BOLT (INCL. 8 SCREWS)
  • 5
    3235330 KIT, SEAL REPAIR (INCL. ALL SEALS)
    KIT, SEAL REPAIR (INCL. ALL SEALS)
  • 6
    3234407 PLATE, ARMATURE
    PLATE, ARMATURE
  • 7
    3234408 SET, SCREW
    SET, SCREW
  • 8
    3234594 ASM., THRUST BUTTON
    ASM., THRUST BUTTON
  • 9
    3235183 PLATE, THRUST
    PLATE, THRUST
  • 10
    3234390 BEARING
    BEARING
  • 11
    3234393 KIT, ROLLER (INCL. COMPLETE SET OF ROLLERS)
    KIT, ROLLER (INCL. COMPLETE SET OF ROLLERS)
  • 12
    3234907 ASM., ROLL CAGE (INCL. CAGE AND COMPLETE SET OF CLIPS)
    ASM., ROLL CAGE (INCL. CAGE AND COMPLETE SET OF CLIPS)
  • 12
    3235262 ASM., ROLL CAGE, BILLET ALUM (HIGH PERFORMANCE ACCESSORY) (INCL. CLIP SET)
    ASM., ROLL CAGE, BILLET ALUM (HIGH PERFORMANCE ACCESSORY) (INCL. CLIP SET)
  • 13
    3234411 ASM., GEARCASE (INCL. GEARCASE, BUSHING, GARLOCK BEARING, FILL PLUG, VENT TUBE, OIL SEAL)
    ASM., GEARCASE (INCL. GEARCASE, BUSHING, GARLOCK BEARING, FILL PLUG, VENT TUBE, OIL SEAL)
  • 14
    3234412 ASM., DRAIN PLUG, MAGNETIC
    ASM., DRAIN PLUG, MAGNETIC
  • 15
    3235337 COVER, INPUT (INCL. INPUT COVER, O-RING, OIL SEAL, NEEDLE FOLLER BEARING)
    COVER, INPUT (INCL. INPUT COVER, O-RING, OIL SEAL, NEEDLE FOLLER BEARING)
  • 16
    3234414 PLUG, OIL FILL
    PLUG, OIL FILL
  • 17
    3234416 RING, RETAINING
    RING, RETAINING
  • 18
    3234418 COVER, INPUT
    COVER, INPUT
  • 19
    3234437 SPACER, RING GEAR
    SPACER, RING GEAR
  • 20
    3234908 KIT, SPRING (INCL. SPRING RETAINER, TORSION SPRING)
    KIT, SPRING (INCL. SPRING RETAINER, TORSION SPRING)
  • 21
    3235177 RING, RETAINING
    RING, RETAINING
  • 22
    3235189 ASM., RING AND PINION GEAR (INCL. RING GEAR SUB ASM., PINION GEAR, DOWEL PIN)
    ASM., RING AND PINION GEAR (INCL. RING GEAR SUB ASM., PINION GEAR, DOWEL PIN)
