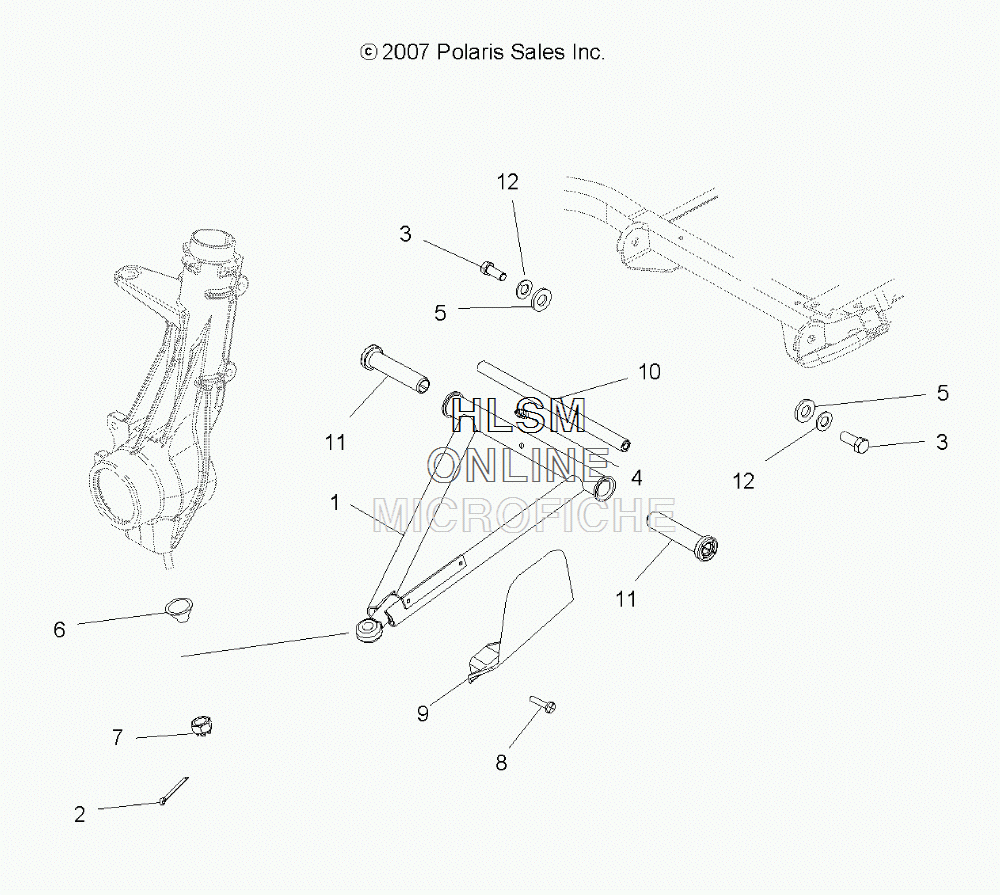

SUSPENSION - A-ARM/STRUT - MOUNTING для Polaris SCRAMBLER 500 4X4 [A12NG50AA] - 2012 года выпуска`
-
№АртикулНазвание
-
12202284-067 KIT, A-FRAME, BLACK, LEFT HAND (INCL. 2-5,10-12)KIT, A-FRAME, BLACK, LEFT HAND (INCL. 2-5,10-12)
-
12202285-067 KIT, A-FRAME, BLACK, RIGHT HAND (INCL. 2-5,10-12)KIT, A-FRAME, BLACK, RIGHT HAND (INCL. 2-5,10-12)
-
27661203 PIN, COTTERPIN, COTTER
-
37512492 SCREWSCREW
-
47080433 FITTING, LUBRICATIONFITTING, LUBRICATION
-
57555832 WASHERWASHER
-
65412658 BOOT, BALL JOINT, GREASELESSBOOT, BALL JOINT, GREASELESS
-
77542438 NUT, CASTLENUT, CASTLE
-
87512084 SCREWSCREW
-
95431150-070 SHIELD, CV JOINT, BLACK, LEFT HANDSHIELD, CV JOINT, BLACK, LEFT HAND
-
95431149-070 SHIELD, CV JOINT, BLACK, RIGHT HANDSHIELD, CV JOINT, BLACK, RIGHT HAND
-
105133806 SHAFT, A-ARMSHAFT, A-ARM
-
115436973 BUSHING, A-ARM, LONGBUSHING, A-ARM, LONG
-
127552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
