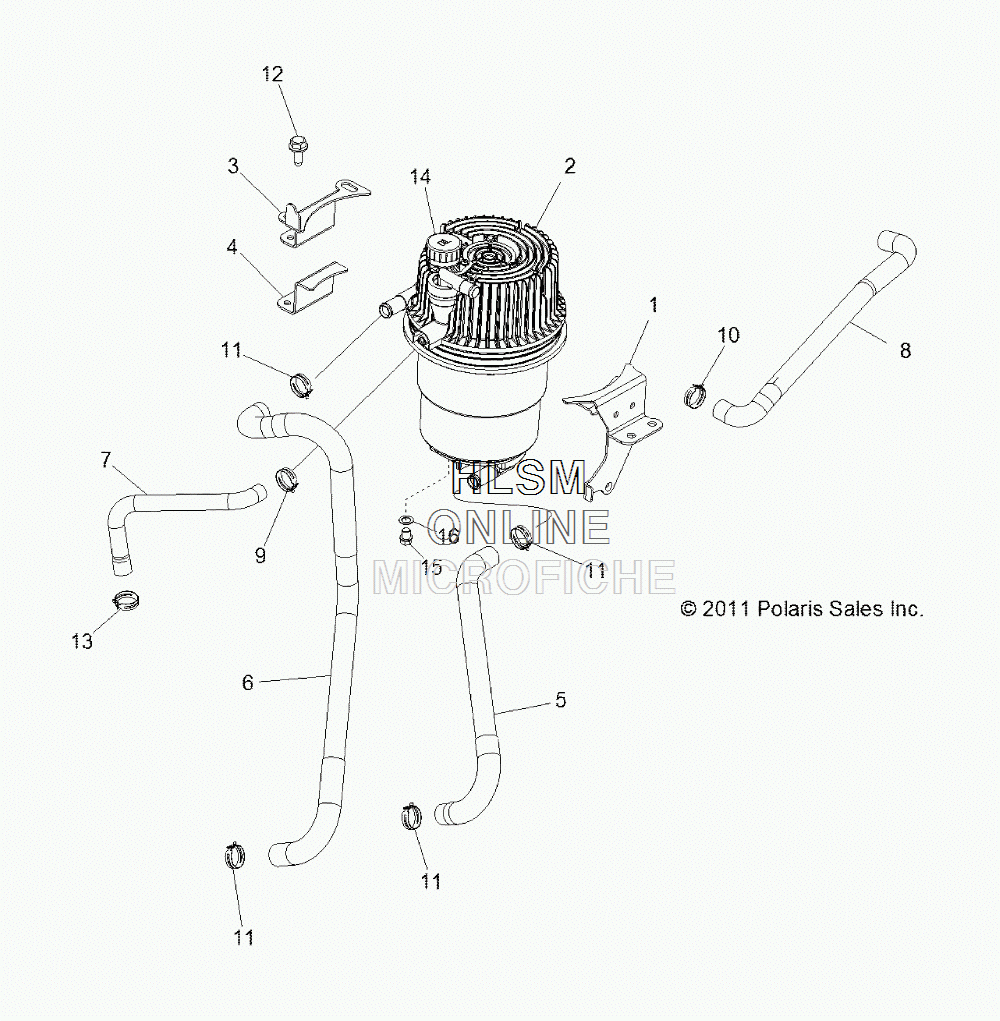

OIL TANK W/ LINES для Polaris RZR XP 900 EFI INDY RED [R12JT87AW] - 2012 года выпуска

  • №
    Артикул
    Название
  • 1
    1018059 MOUNT, OIL BOTTLE, FRONT
    MOUNT, OIL BOTTLE, FRONT
  • 2
    1204213 ASM., OIL TANK (INCL. 14)
    ASM., OIL TANK (INCL. 14)
  • 3
    5254062 BRACKET, OIL BOTTLE, UPPER, REAR
    BRACKET, OIL BOTTLE, UPPER, REAR
  • 4
    5254063 BRACKET, OIL BOTTLE, LOWER, REAR
    BRACKET, OIL BOTTLE, LOWER, REAR
  • 5
    5413931 LINE, MAIN, OIL SUPPLY
    LINE, MAIN, OIL SUPPLY
  • 6
    5413932 LINE, MAIN, OIL RETURN
    LINE, MAIN, OIL RETURN
  • 7
    5413933 LINE, OIL/AIR, TOP
    LINE, OIL/AIR, TOP
  • 8
    5413934 LINE, OIL BOTTLE VENT
    LINE, OIL BOTTLE VENT
  • 9
    7081026 CLAMP, HOSE, SPRING
    CLAMP, HOSE, SPRING
  • 10
    7080841 CLAMP, SPRINGBAND
    CLAMP, SPRINGBAND
  • 11
    7081415 CLAMP, CONSTANT TENSION
    CLAMP, CONSTANT TENSION
  • 12
    7518555 BOLT
    BOLT
  • 13
    7081533 CLAMP, HOSE, SPRING
    CLAMP, HOSE, SPRING
  • 14
    5439524 DIPSTICK
    DIPSTICK
  • 15
    7052548 PLUG, DRAIN
    PLUG, DRAIN
  • 16
    0451514 SEAL
    SEAL
