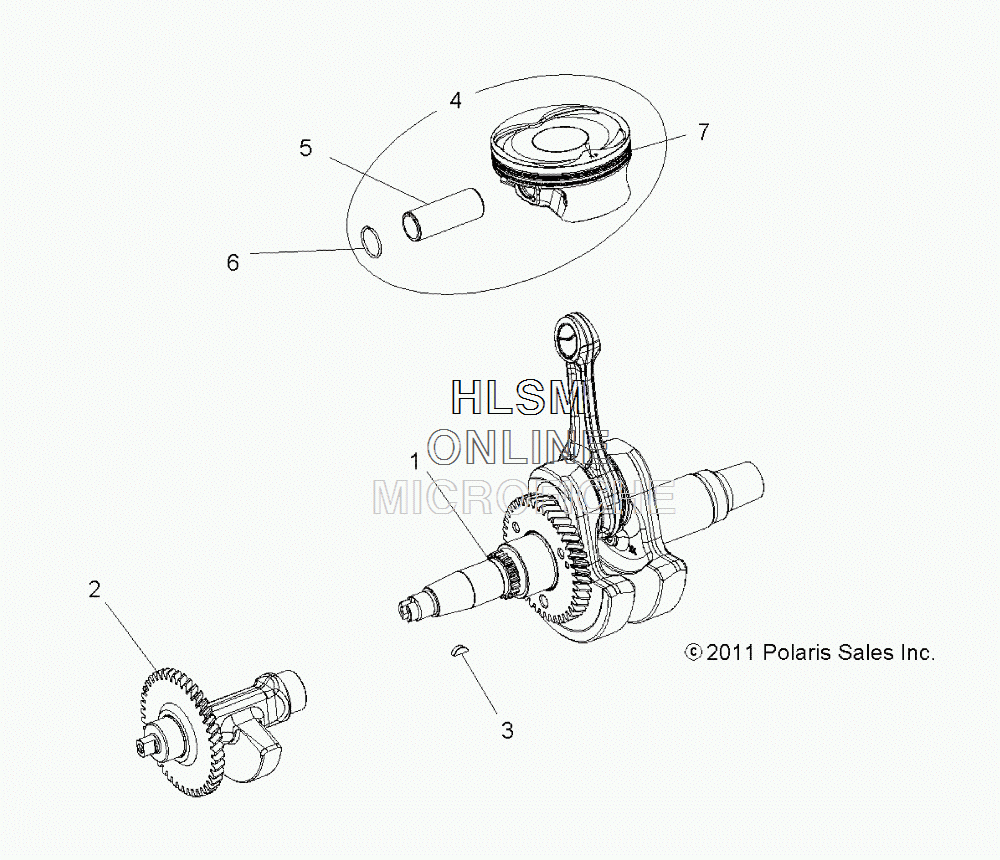

CRANKSHAFT W/ PISTON AND BALANCE SHAFT для Polaris RZR 570 EFI [R12VH57AD] - 2012 года выпуска

  • №
    Артикул
    Название
  • 1
    2204729 ASM., CRANKSHAFT (INCL. CRANKSHAFT, JET, OIL PUMP)
    ASM., CRANKSHAFT (INCL. CRANKSHAFT, JET, OIL PUMP)
  • 2
    1204515 ASM., BALANCE SHAFT
    ASM., BALANCE SHAFT
  • 3
    7721122 KEY, WOODRUFF
    KEY, WOODRUFF
  • 4
    3022288 ASM., PISTON (INCL. 4-7)
    ASM., PISTON (INCL. 4-7)
  • 4
    2204732 KIT, ASM., PISTON, 99MM, STANDARD (INCL. STANDARD SIZE PISTON, PIN, CLIPS, RING SET)
    KIT, ASM., PISTON, 99MM, STANDARD (INCL. STANDARD SIZE PISTON, PIN, CLIPS, RING SET)
  • 4
    2204734 KIT, ASM., PISTON, 99MM, +0.25MM (INCL. +0.25MM SIZE PISTON, PIN, CLIPS, RING SET)
    KIT, ASM., PISTON, 99MM, +0.25MM (INCL. +0.25MM SIZE PISTON, PIN, CLIPS, RING SET)
  • 4
    2204730 KIT, ASM., PISTON, 99MM, +0.50MM (INCL. +0.50MM SIZE PISTON, PIN, CLIPS, RING SET)
    KIT, ASM., PISTON, 99MM, +0.50MM (INCL. +0.50MM SIZE PISTON, PIN, CLIPS, RING SET)
  • 5
    3022291 PIN, PISTON
    PIN, PISTON
  • 6
    7710479 RING, RETAINING
    RING, RETAINING
  • 7
    2204733 KIT, RING, STANDARD (INCL. QTY 1 EACH OF TOP RING, OIL SCRAPER RING, AND SECOND COMPRESSION RING)
    KIT, RING, STANDARD (INCL. QTY 1 EACH OF TOP RING, OIL SCRAPER RING, AND SECOND COMPRESSION RING)
  • 7
    2204735 KIT, RING, +0.25MM (INCL. QTY 1 EACH OF TOP RING, OIL SCRAPER RING, AND SECOND COMPRESSION RING)
    KIT, RING, +0.25MM (INCL. QTY 1 EACH OF TOP RING, OIL SCRAPER RING, AND SECOND COMPRESSION RING)
  • 7
    2204731 KIT, RING, +0.50MM (INCL. QTY 1 EACH OF TOP RING, OIL SCRAPER RING, AND SECOND COMPRESSION RING)
    KIT, RING, +0.50MM (INCL. QTY 1 EACH OF TOP RING, OIL SCRAPER RING, AND SECOND COMPRESSION RING)
