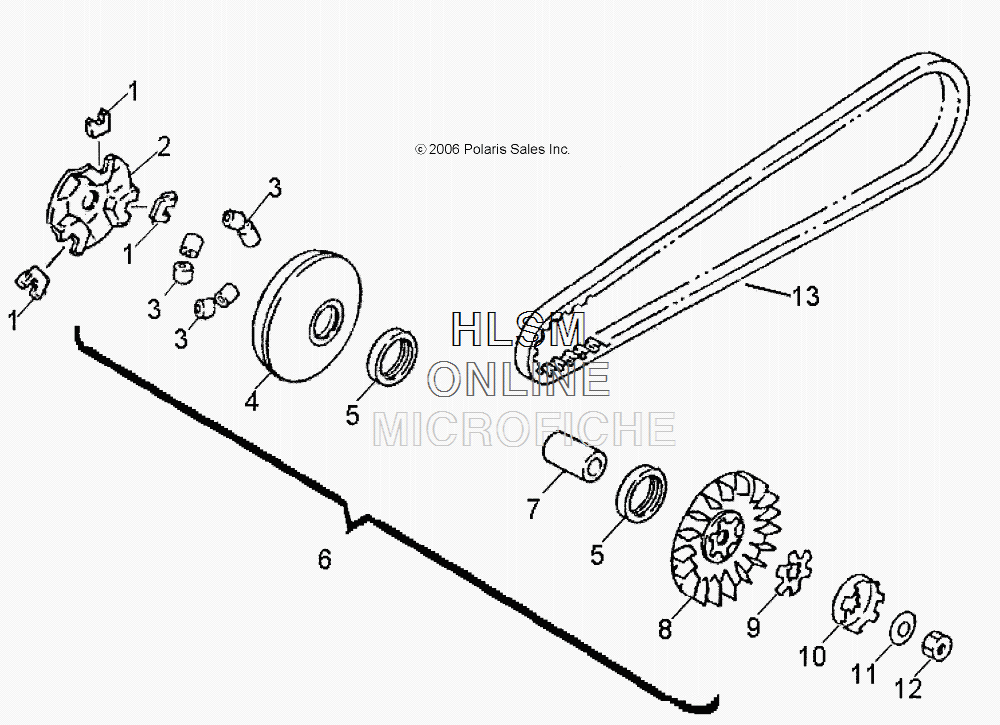

CLUTCH - PRIMARY для Polaris OUTLAW 50 - PINK [A12KA05AD] - 2012 года выпуска`
-
№АртикулНазвание
-
10453602 BUSHING, SLIDERBUSHING, SLIDER
-
20453603 PLATE, CAMPLATE, CAM
-
30453901 ROLLERROLLER
-
40453605 WHEEL, SLOT, DRIVE CLUTCHWHEEL, SLOT, DRIVE CLUTCH
-
50453606 SEAL, OILSEAL, OIL
-
60453902 ASM., DRIVE CLUTCH (INCL. 1-9)ASM., DRIVE CLUTCH (INCL. 1-9)
-
70453607 BUSHINGBUSHING
-
80453608 SHEAVE, MOVEABLESHEAVE, MOVEABLE
-
90453609 WASHER, CLAWWASHER, CLAW
-
100450245 CLUTCH, ONE-WAYCLUTCH, ONE-WAY
-
110453809 WASHER, SPRINGWASHER, SPRING
-
120450249 NUTNUT
-
130453455 BELT, DRIVENBELT, DRIVEN
