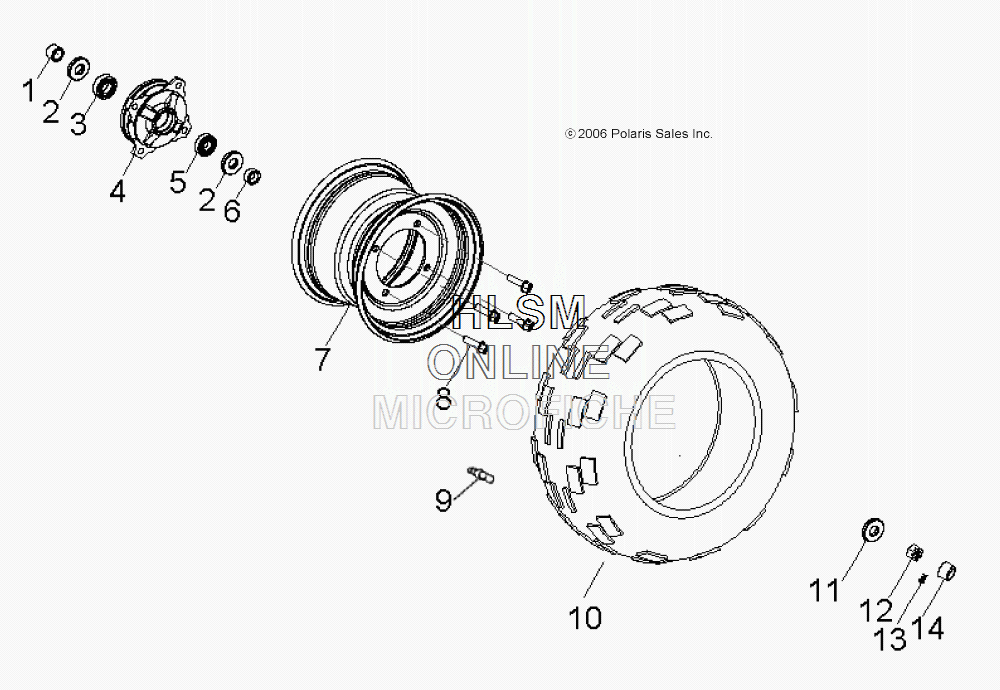

FRONT WHEELS для Polaris OUTLAW 50 - BOARDWALK BLUE [A12KA05AF] - 2012 года выпуска
-
№АртикулНазвание
-
10450390 SPACER, INNERSPACER, INNER
-
20450389 SEAL, OILSEAL, OIL
-
30454013 ASM., BEARINGASM., BEARING
-
40450885-385 DRUM, BRAKE, SILVERDRUM, BRAKE, SILVER
-
50454014 ASM., BEARINGASM., BEARING
-
60450391 SPACER, OUTERSPACER, OUTER
-
70451776-067 RIM, FRONT, BLACK (AF)RIM, FRONT, BLACK (AF)
-
80450124 BOLT, HEXBOLT, HEX
-
90454715 VALVE, RIMVALVE, RIM
-
100452053 TIRE, 16X6.5-7TIRE, 16X6.5-7
-
110450397 WASHERWASHER
-
120450394 NUT, LOCKNUT, LOCK
-
130450395 PIN, COTTERPIN, COTTER
-
140450829 CAP, RUBBERCAP, RUBBER
