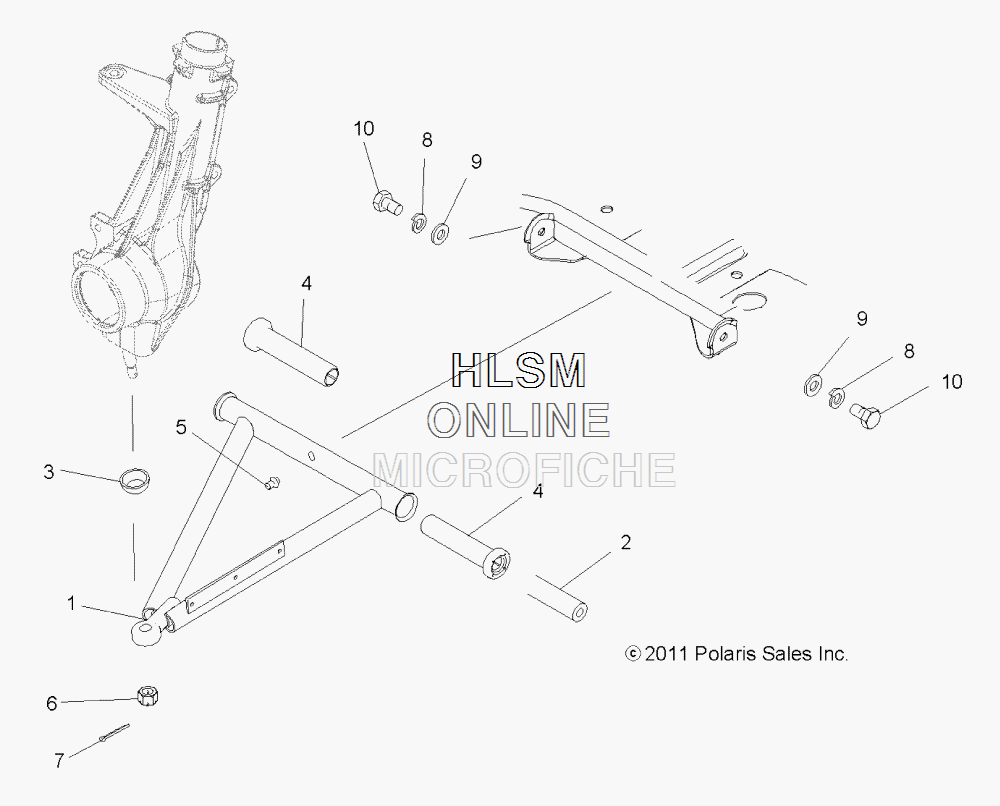

SUSPENSION - A-ARM/STRUT - MOUNTING для Polaris HAWKEYE 400 HO 2X4 [A12MB46FZ] - 2012 года выпуска`
-
№АртикулНазвание
-
12202906 KIT, A-FRAME, LEFT HAND (INCL. 2,4,8-10)KIT, A-FRAME, LEFT HAND (INCL. 2,4,8-10)
-
12202907 KIT, A-FRAME, RIGHT HAND (INCL. 2,4,8-10)KIT, A-FRAME, RIGHT HAND (INCL. 2,4,8-10)
-
25133806 SHAFT, A-ARMSHAFT, A-ARM
-
35412658 BOOT, BALL JOINT, GREASELESSBOOT, BALL JOINT, GREASELESS
-
45436973 BUSHING, A-ARM, LONGBUSHING, A-ARM, LONG
-
57080433 FITTING, LUBRICATIONFITTING, LUBRICATION
-
67542438 NUT, CASTLENUT, CASTLE
-
77661203 PIN, COTTERPIN, COTTER
-
87552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
97555832 WASHERWASHER
-
107512492 SCREWSCREW
