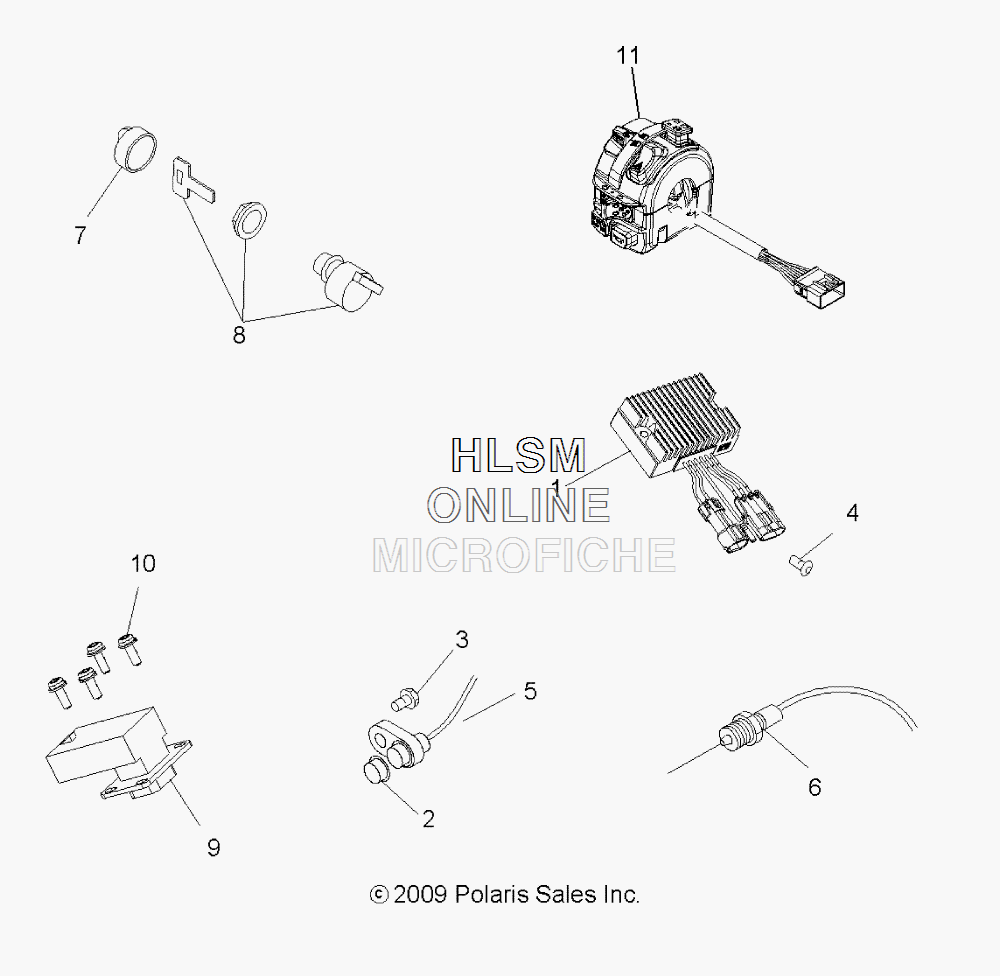

ELECTRICAL COMPONENTS для Polaris TRAIL BOSS 330 INTL (A11EA32FA) - 2011 года выпуска`
-
№АртикулНазвание
-
14012192 RECTIFIER, REGULATORRECTIFIER, REGULATOR
-
25132382 CAP, HALL SENSORCAP, HALL SENSOR
-
37517658 SCREWSCREW
-
47512084 SCREWSCREW
-
54011640 SENSOR, HALL EFFECT (BRAKE LIGHT)SENSOR, HALL EFFECT (BRAKE LIGHT)
-
64012510 SWITCH, FAN ON, HOT LIGHTSWITCH, FAN ON, HOT LIGHT
-
75433534 COVER, KEYCOVER, KEY
-
84012166 SWITCH, KEY, 4 POSITION (INCL. 7)SWITCH, KEY, 4 POSITION (INCL. 7)
-
85433733 NUT, IGNITION SWITCHNUT, IGNITION SWITCH
-
84010278 BLANK, KEY, SERIES 2000,22100,6700,7800 (SEE NOTE)BLANK, KEY, SERIES 2000,22100,6700,7800 (SEE NOTE)
-
93234002 SWITCH, 3 POSITION, GEAR INDICATIONSWITCH, 3 POSITION, GEAR INDICATION
-
103233749 SCREWSCREW
-
114012435 SWITCH, HANDLE BAR (LEFT)SWITCH, HANDLE BAR (LEFT)
