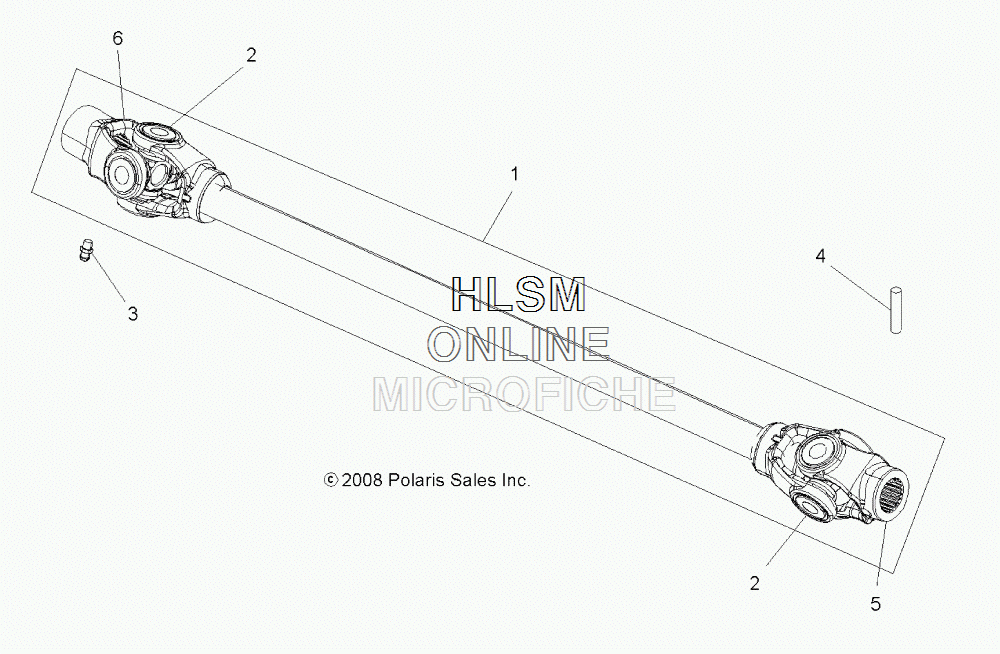

PROP SHAFT - FRONT (BUILT 11/22/10 AND BEFORE) для Polaris SPORTSMAN X2 550 - SAGE BRUSH METALLIC (A11TN55AA) - 2011 года выпуска`
-
№АртикулНазвание
-
11332430 ASM., SHAFT, PROP, FRONT (INCL. 2,3,5) (BUILT 11/19/10 AND BEFORE)ASM., SHAFT, PROP, FRONT (INCL. 2,3,5) (BUILT 11/19/10 AND BEFORE)
-
22203703 KIT, U-JOINTKIT, U-JOINT
-
37080424 FITTING LUBRICATINGFITTING LUBRICATING
-
47661913 PIN, SPRINGPIN, SPRING
-
52203704 FITTING, YOKEFITTING, YOKE
-
61590469 YOKE, SPLINE W/FITTING (INCL. 3)YOKE, SPLINE W/FITTING (INCL. 3)
