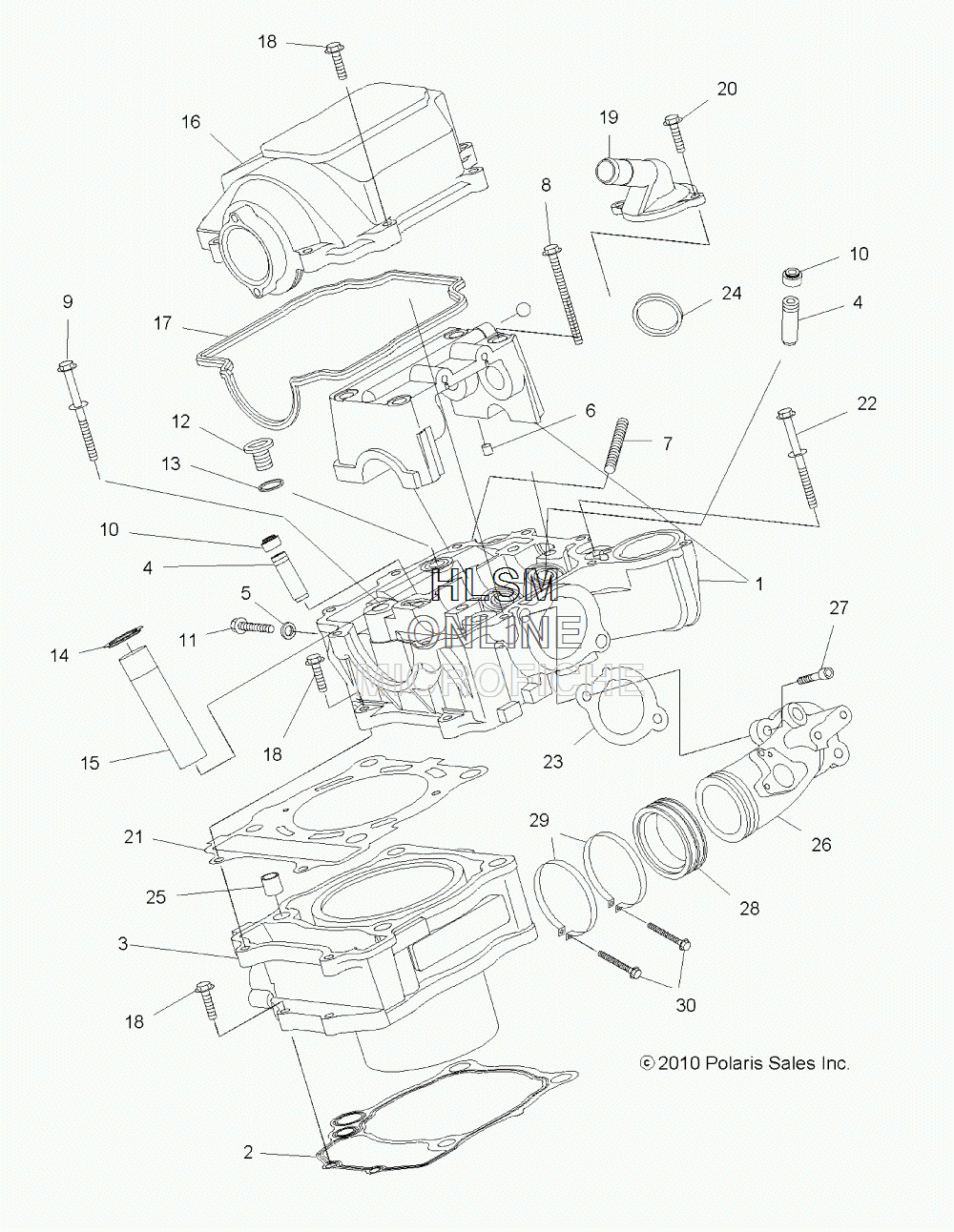

CYLINDER для Polaris SPORTSMAN TOURING EPS 2-PASS INTL - BOARDWALK BLUE (A11DX55AZ) - 2011 года выпуска

  • №
    Артикул
    Название
  • 1
    3090300 HEAD, CYLINDER (INCL. 4,6,7, ROCKER ARM SUPPORT)
    HEAD, CYLINDER (INCL. 4,6,7, ROCKER ARM SUPPORT)
  • 2
    3090092 GASKET, CYLINDER
    GASKET, CYLINDER
  • 3
    3090202 UNIT, CYLINDER
    UNIT, CYLINDER
  • 4
    3090203 GUIDE, VALVE
    GUIDE, VALVE
  • 5
    3088030 GASKET, COPPER
    GASKET, COPPER
  • 6
    3084721 PIN, DOWEL
    PIN, DOWEL
  • 7
    3090095 STUD
    STUD
  • 8
    3090096 BOLT, FLANGE
    BOLT, FLANGE
  • 9
    3084875 ASM., BOLT, CYLINDER HEAD
    ASM., BOLT, CYLINDER HEAD
  • 10
    3090098 SEAL, EXHAUST VALVE
    SEAL, EXHAUST VALVE
  • 11
    3088135 BOLT, FLANGE
    BOLT, FLANGE
  • 12
    3084860 PLUG
    PLUG
  • 13
    3084861 GASKET
    GASKET
  • 14
    3090100 GASKET, SPARK PLUG PIPE
    GASKET, SPARK PLUG PIPE
  • 15
    3090099 PIPE, SPARK PLUG
    PIPE, SPARK PLUG
  • 16
    3090101 COVER, ROCKER
    COVER, ROCKER
  • 17
    3090204 O-RING, ROCKER COVER
    O-RING, ROCKER COVER
  • 18
    3084874 BOLT, FLANGE
    BOLT, FLANGE
  • 19
    3090205 ADAPTOR, WATER OUT
    ADAPTOR, WATER OUT
  • 20
    3084877 BOLT, FLANGE
    BOLT, FLANGE
  • 21
    3090104 GASKET, HEAD
    GASKET, HEAD
  • 22
    3090206 ASM., BOLT, CYLINDER HEAD
    ASM., BOLT, CYLINDER HEAD
  • 23
    3090144 GASKET, INTAKE PIPE
    GASKET, INTAKE PIPE
  • 24
    3090004 GASKET, EXHAUST
    GASKET, EXHAUST
  • 25
    3087266 KNOCK, PIPE
    KNOCK, PIPE
  • 26
    3090137 PIPE, INTAKE
    PIPE, INTAKE
  • 27
    3081330 BOLT, SOCKET HEAD
    BOLT, SOCKET HEAD
  • 28
    3090208 ADAPTER
    ADAPTER
  • 29
    3090209 ASM., BAND ADAPTER (INCL. 30)
    ASM., BAND ADAPTER (INCL. 30)
  • 30
    3081497 SCREW
    SCREW
