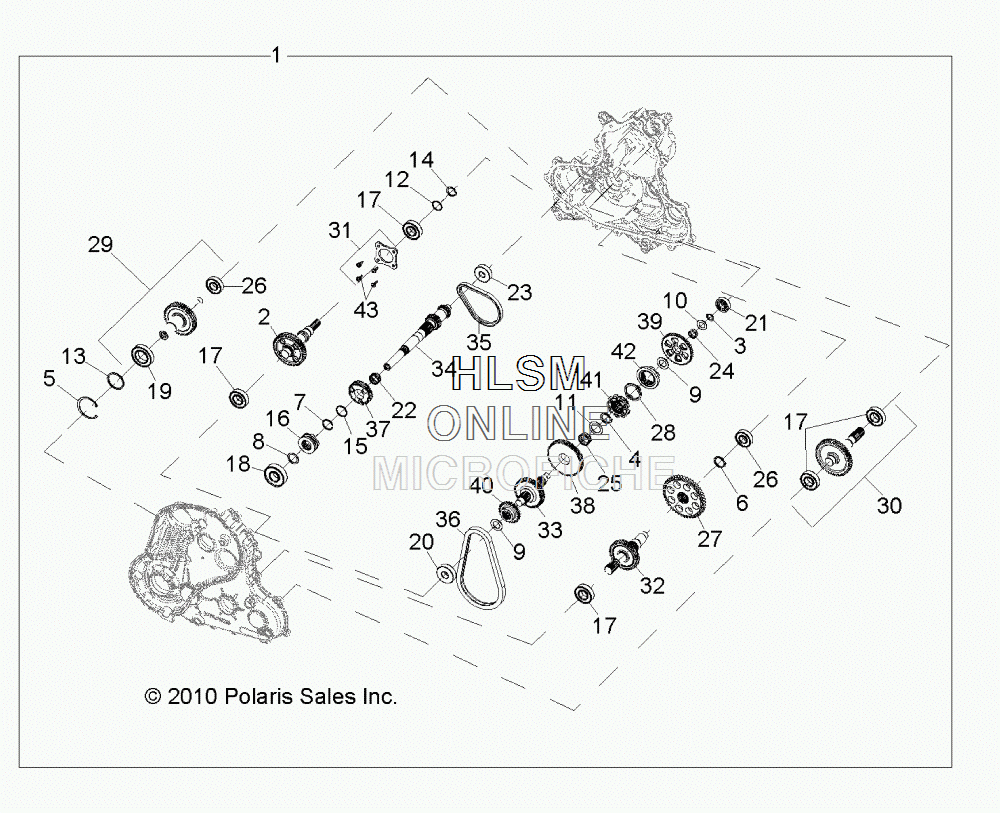

GEARCASE - MAIN - INTERNAL COMPONENTS для Polaris SPORTSMAN 850 TOURING EPS 2-PASS INTL - 2011 года выпуска
-
№АртикулНазвание
-
11332848 ASM., TRANSMISSION (INCL. ALL)ASM., TRANSMISSION (INCL. ALL)
-
23235194 SHAFT, INPUTSHAFT, INPUT
-
33234318 RING, RETAINING, EXTERNALRING, RETAINING, EXTERNAL
-
43234327 RING, RETAINING, EXTERNALRING, RETAINING, EXTERNAL
-
53234741 RING, RETAINING, INTERNALRING, RETAINING, INTERNAL
-
63233699 RING, RETAINING, EXTERNALRING, RETAINING, EXTERNAL
-
73234641 RING, RETAINING, EXTERNALRING, RETAINING, EXTERNAL
-
83234248 WASHER, THRUSTWASHER, THRUST
-
93234643 SHIMSHIM
-
103234644 SHIMSHIM
-
113234646 WASHER, THRUSTWASHER, THRUST
-
122204343 KIT, INPUT SHAFT, SHIM PACKKIT, INPUT SHAFT, SHIM PACK
-
132204268 KIT, SHIMKIT, SHIM
-
143233106 RING, SNAPRING, SNAP
-
153234757 WASHER, THRUSTWASHER, THRUST
-
163235190 DOG, ENGAGEMENT, HIGHDOG, ENGAGEMENT, HIGH
-
173233019 BEARINGBEARING
-
183233020 BEARINGBEARING
-
193233265 BEARING, BALLBEARING, BALL
-
203234651 BEARING, BALLBEARING, BALL
-
213234274 BEARING, BALLBEARING, BALL
-
223234759 BEARING, NEEDLEBEARING, NEEDLE
-
233234652 BEARING, BALLBEARING, BALL
-
243234655 BEARING, NEEDLEBEARING, NEEDLE
-
253234656 BEARING, NEEDLEBEARING, NEEDLE
-
263233018 BEARING, BALLBEARING, BALL
-
273234998 SPROCKET, 44TSPROCKET, 44T
-
283234688 SPRING, WAVESPRING, WAVE
-
293235191 SUBASM., PRIMARY SHAFTSUBASM., PRIMARY SHAFT
-
303234723 ASM., OUTPUT, FRONTASM., OUTPUT, FRONT
-
313235198 SUBASM., COVER, BEARING (INCL. 43)SUBASM., COVER, BEARING (INCL. 43)
-
323235195 SHAFT, OUTPUTSHAFT, OUTPUT
-
333234774 SHAFT, REVERSE, 53TSHAFT, REVERSE, 53T
-
343235063 SHAFT, INPUT, 25TSHAFT, INPUT, 25T
-
353234737 CHAIN, SILENTCHAIN, SILENT
-
363234738 CHAIN, SILENTCHAIN, SILENT
-
373235193 GEAR, HELICAL, 42TGEAR, HELICAL, 42T
-
383234706 GEAR, 67TGEAR, 67T
-
393234707 SPROCKET, 48TSPROCKET, 48T
-
403234708 SPROCKET, 23TSPROCKET, 23T
-
413234718 DOG, ENGAGEMENT, LOWDOG, ENGAGEMENT, LOW
-
423234719 DOG, ENGAGEMENT, REV/LOWDOG, ENGAGEMENT, REV/LOW
-
433234309 SCREWSCREW
