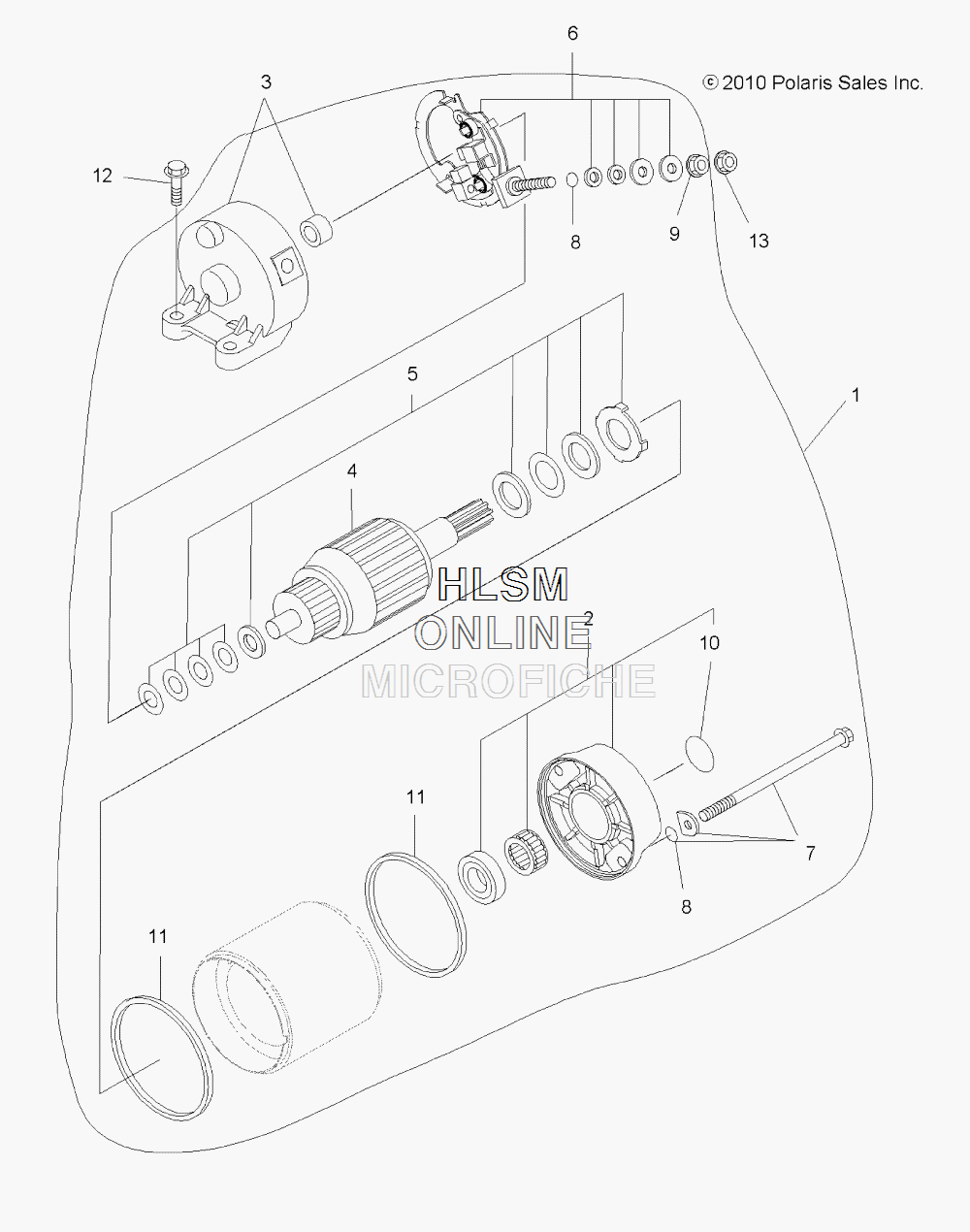

STARTING MOTOR для Polaris SPORTSMAN 550 TOURING EPS 2-PASS (A11DX55FL) - 2011 года выпуска

  • №
    Артикул
    Название
  • 1
    3090221 MOTOR, STARTING (INCL. 1-12)
    MOTOR, STARTING (INCL. 1-12)
  • 2
    3090222 ASM., BRACKET, FRONT (INCL. BEARING, 10)
    ASM., BRACKET, FRONT (INCL. BEARING, 10)
  • 3
    3090224 ASM., BRACKET, REAR (INCL. BUSHING)
    ASM., BRACKET, REAR (INCL. BUSHING)
  • 4
    3089915 ASM., ARMATURE
    ASM., ARMATURE
  • 5
    3089912 SET, WASHER
    SET, WASHER
  • 6
    3088169 SET, CARBON BRUSH
    SET, CARBON BRUSH
  • 7
    3084983 ASM., BOLT SET
    ASM., BOLT SET
  • 8
    3084408 O-RING
    O-RING
  • 9
    3083649 NUT, FLANGE
    NUT, FLANGE
  • 10
    3090223 O-RING
    O-RING
  • 11
    3084405 RING, RUBBER
    RING, RUBBER
  • 12
    3084877 BOLT, FLANGE
    BOLT, FLANGE
  • 13
    3083856 NUT, FLANGE
    NUT, FLANGE
