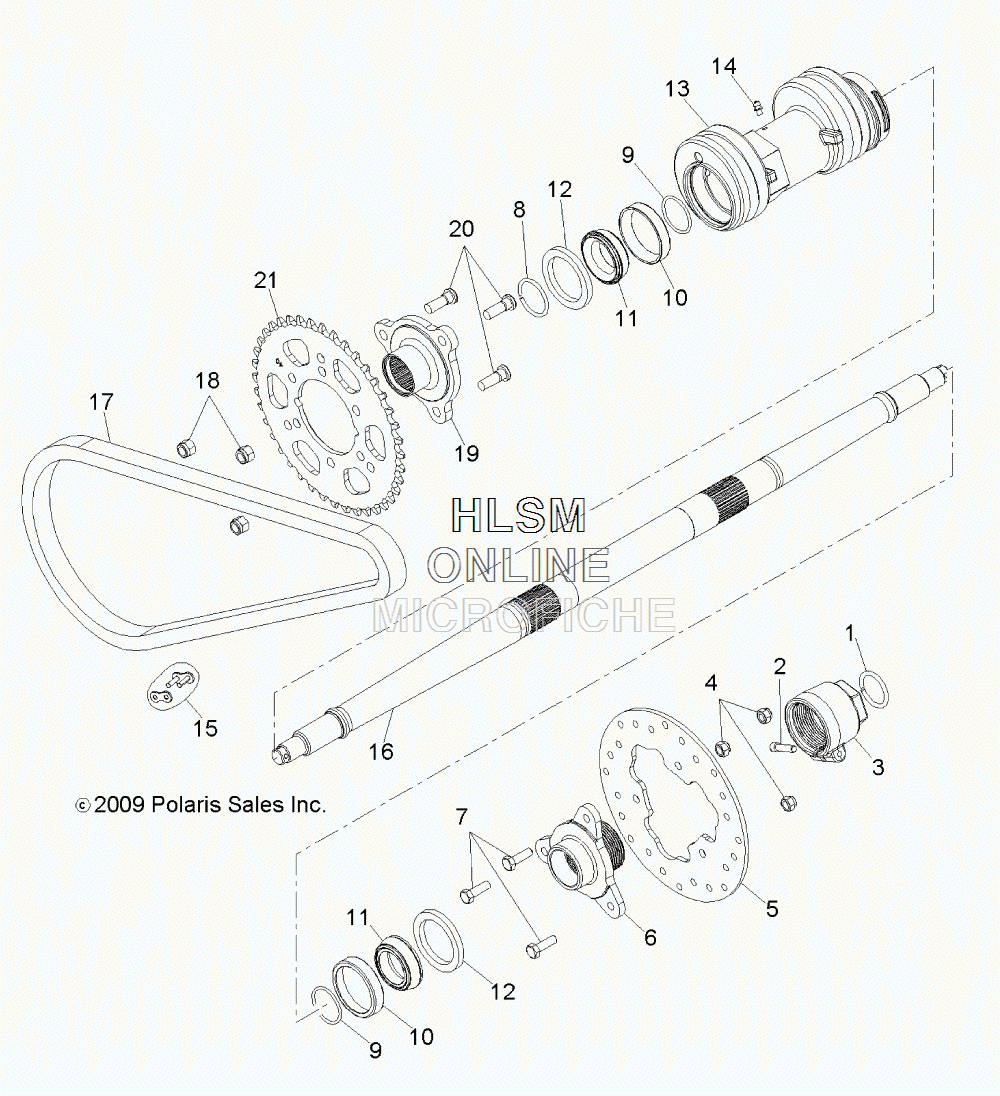

AXLE - REAR W/ HOUSING для Polaris SCRAMBLER 500 4X4 INTL (A11NG50FA) - 2011 года выпуска

  • №
    Артикул
    Название
  • 1
    7670160 RING, RETAINING
    RING, RETAINING
  • 2
    7515102 SCREW
    SCREW
  • 3
    5137563 NUT, AXLE
    NUT, AXLE
  • 4
    7547217 NUT, NYLOK
    NUT, NYLOK
  • 5
    5253186 DISC, BRAKE
    DISC, BRAKE
  • 6
    5631457 HUB, BRAKE DISC
    HUB, BRAKE DISC
  • 7
    7512365 SCREW, CAP
    SCREW, CAP
  • 8
    7670161 RING, RETAINING
    RING, RETAINING
  • 9
    5411965 O-RING
    O-RING
  • 10
    3514679 BEARING, CUP, TAPERED
    BEARING, CUP, TAPERED
  • 11
    3514680 BEARING, CONE, TAPERED
    BEARING, CONE, TAPERED
  • 12
    3610070 SEAL, LIP
    SEAL, LIP
  • 13
    5134460 HOUSING, AXLE, REAR
    HOUSING, AXLE, REAR
  • 14
    7080306 FITTING, LUBRICATION
    FITTING, LUBRICATION
  • 15
    3221192 LINK, CONNECTOR
    LINK, CONNECTOR
  • 16
    5133967 AXLE, REAR
    AXLE, REAR
  • 17
    3221193-076 CHAIN, O-RING (INCL. 15)
    CHAIN, O-RING (INCL. 15)
  • 18
    7542439 NUT, NYLOK
    NUT, NYLOK
  • 19
    1520702 ASM., HUB, SPROCKET (INCL. 20)
    ASM., HUB, SPROCKET (INCL. 20)
  • 20
    7515513 STUD
    STUD
  • 21
    3222109 SPROCKET, REAR AXLE, 36T
    SPROCKET, REAR AXLE, 36T
