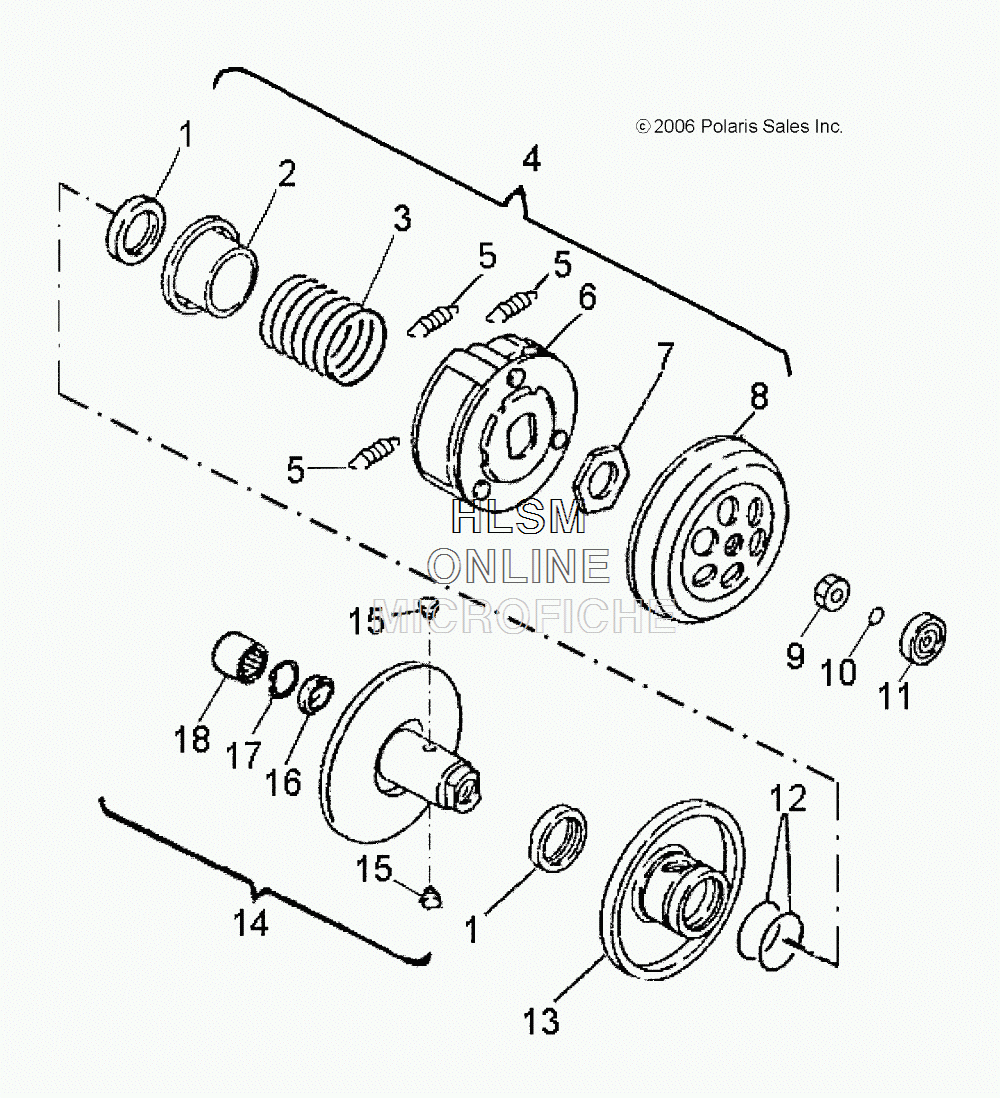

CLUTCH - SECONDARY для Polaris OUTLAW 90 - (BRIGHT WHITE) (A11KA09AD) - 2011 года выпуска

  • №
    Артикул
    Название
  • 1
    0450211 SEAL, OIL
    SEAL, OIL
  • 2
    0453589 SEAL, COLLAR
    SEAL, COLLAR
  • 3
    0453590 SPRING, CLUTCH
    SPRING, CLUTCH
  • 4
    0453454 ASM., SECONDARY SHEAVE (INCL. 1-8,12-18)
    ASM., SECONDARY SHEAVE (INCL. 1-8,12-18)
  • 5
    0453591 SPRING, WEIGHT
    SPRING, WEIGHT
  • 6
    0453592 CARRIER, CLUTCH
    CARRIER, CLUTCH
  • 7
    0453593 NUT
    NUT
  • 8
    0453594 COVER, CLUTCH
    COVER, CLUTCH
  • 9
    0450224 NUT
    NUT
  • 10
    0450226 O-RING
    O-RING
  • 11
    0450225 BEARING
    BEARING
  • 12
    0453595 O-RING
    O-RING
  • 13
    0453596 SHEAVE, MOVEABLE
    SHEAVE, MOVEABLE
  • 14
    0453597 ASM., SHEAVE, DRIVEN (INCL. 15-18)
    ASM., SHEAVE, DRIVEN (INCL. 15-18)
  • 15
    0453598 PIN, GUIDE
    PIN, GUIDE
  • 16
    0453599 BEARING
    BEARING
  • 17
    0453600 CIRCLIP
    CIRCLIP
  • 18
    0453601 BEARING, NEEDLE
    BEARING, NEEDLE
