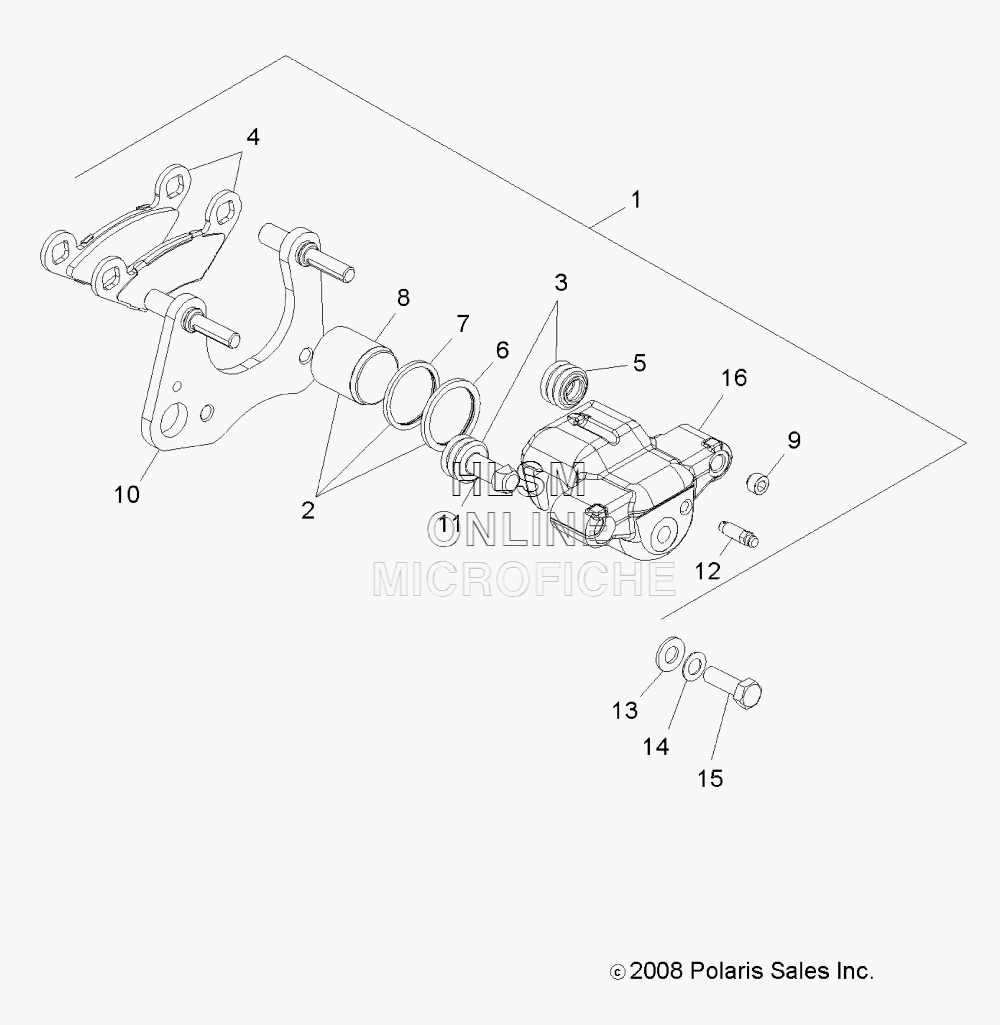

BRAKES- FRONT CALIPER для Polaris TRAIL BLAZER 330 (A10NA32AA) (INDY RED) - 2010 года выпуска

  • №
    Артикул
    Название
  • 1
    1911540 ASM., CALIPER (LEFT) (INCL. 1-12,16)
    ASM., CALIPER (LEFT) (INCL. 1-12,16)
  • 1
    1911541 ASM., CALIPER (RIGHT) (INCL. 1-12,16)
    ASM., CALIPER (RIGHT) (INCL. 1-12,16)
  • 2
    1930665 KIT, PISTON AND SEAL (INCL. 6-8)
    KIT, PISTON AND SEAL (INCL. 6-8)
  • 3
    1930642 KIT, BOOT, FRONT BRAKE (INCL. 5,11)
    KIT, BOOT, FRONT BRAKE (INCL. 5,11)
  • 4
    2202412 ASM., KIT, FRONT BRAKE PAD (INCL. 4 PADS)
    ASM., KIT, FRONT BRAKE PAD (INCL. 4 PADS)
  • 5
    5412506 BOOT, PIN SEAL
    BOOT, PIN SEAL
  • 6
    5410779 RING, SQUARE, MOLDED, .094
    RING, SQUARE, MOLDED, .094
  • 7
    5410780 RING, SQUARE, MOLDED, .103 X .134
    RING, SQUARE, MOLDED, .103 X .134
  • 8
    5132294 PISTON, BRAKE, LONG
    PISTON, BRAKE, LONG
  • 9
    7518863 SCREW, SOCKET SET
    SCREW, SOCKET SET
  • 10
    1910513 ASM., MOUNT, CALIPER, FRONT
    ASM., MOUNT, CALIPER, FRONT
  • 11
    5412505 BOOT, BUSHING
    BOOT, BUSHING
  • 12
    7081343 SCREW, BLEEDER
    SCREW, BLEEDER
  • 13
    7558402 WASHER, FLAT
    WASHER, FLAT
  • 14
    7552901 WASHER, SPRING LOCK
    WASHER, SPRING LOCK
  • 15
    7512365 SCREW, CAP
    SCREW, CAP
