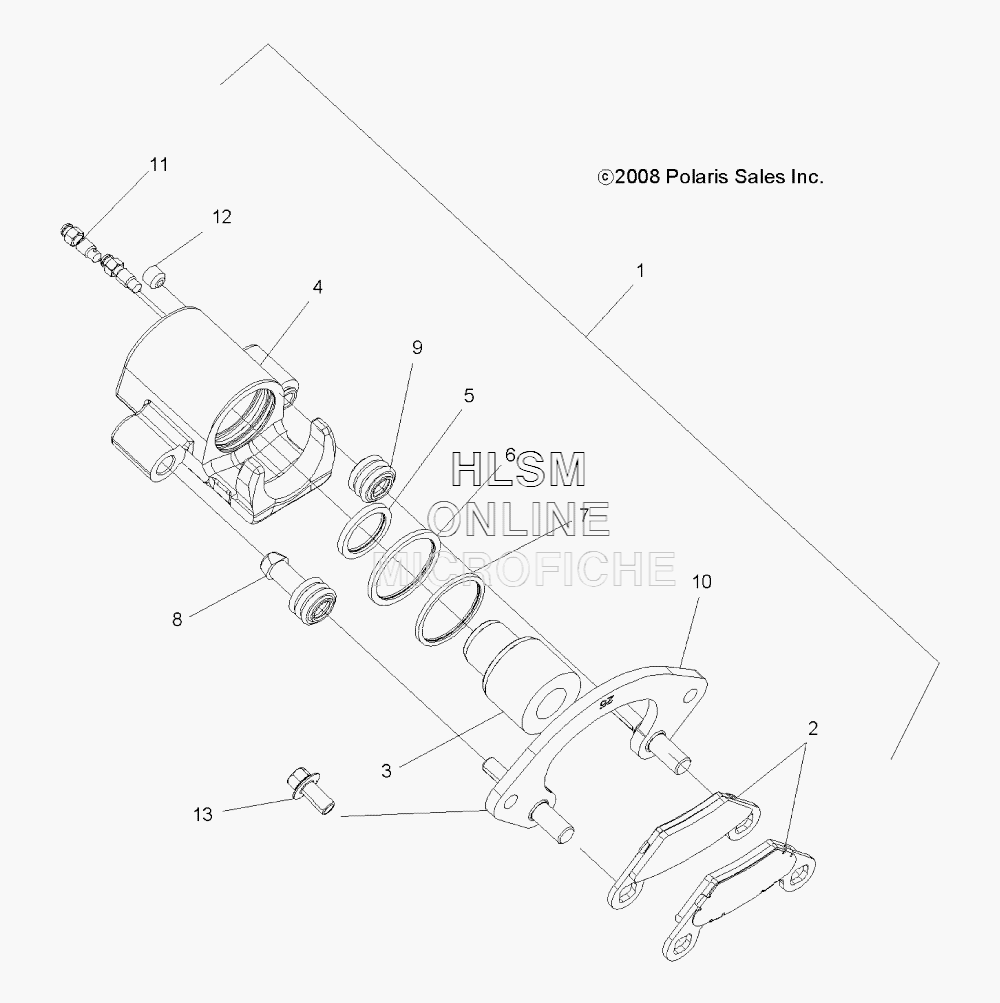

BRAKES- REAR CALIPER для Polaris SPORTSMAN XP EPS 850 INTL (A10ZX85FL) (SUNSET RED) - 2010 года выпуска

  • №
    Артикул
    Название
  • 1
    1911458 CALIPER, DUAL INPUT (LEFT) (INCL. ALL LESS 13)
    CALIPER, DUAL INPUT (LEFT) (INCL. ALL LESS 13)
  • 1
    1911459 CALIPER, DUAL INPUT (RIGHT) (INCL. ALL LESS 13)
    CALIPER, DUAL INPUT (RIGHT) (INCL. ALL LESS 13)
  • 2
    2204088 KIT, BRAKE PAD, REAR (INCL. 2 SETS, 4 PADS)
    KIT, BRAKE PAD, REAR (INCL. 2 SETS, 4 PADS)
  • 3
    5136698 PISTON, BRAKE, STEP
    PISTON, BRAKE, STEP
  • 5
    5410766 RING, SQUARE, MOLDED
    RING, SQUARE, MOLDED
  • 6
    5412010 SEAL, CALIPER, INNER
    SEAL, CALIPER, INNER
  • 7
    5412011 SEAL, CALIPER, OUTER
    SEAL, CALIPER, OUTER
  • 8
    5412505 BOOT, PIN BUSHING
    BOOT, PIN BUSHING
  • 9
    5412506 BOOT, PIN SEAL
    BOOT, PIN SEAL
  • 10
    1911225 ASM., CALIPER MOUNT
    ASM., CALIPER MOUNT
  • 11
    7081343 SCREW, BLEEDER
    SCREW, BLEEDER
  • 12
    7518863 SCREW, SOCKET SET
    SCREW, SOCKET SET
  • 13
    7518760 BOLT, FLANGE (CALIPER MOUNTING)
    BOLT, FLANGE (CALIPER MOUNTING)
