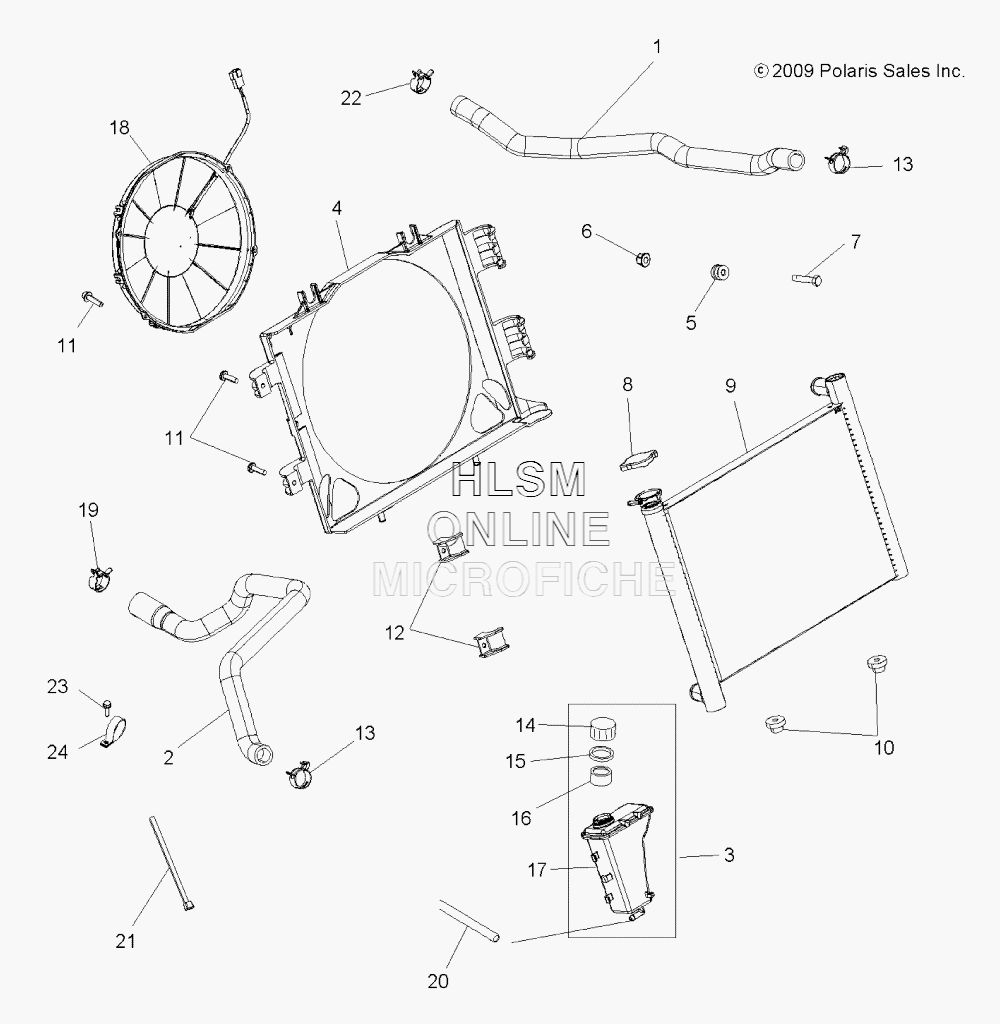

COOLING SYSTEM для Polaris SPORTSMAN XP 850 (A10ZN85AL) (INDY RED) - 2010 года выпуска`
-
№АртикулНазвание
-
11240407 ASM., HOSE, ENGINE OUTASM., HOSE, ENGINE OUT
-
21240449 ASM., HOSE, ENGINE INASM., HOSE, ENGINE IN
-
31240406 ASM., BOTTLE, COOLANT RECOVERY (INCL. 14-17,20)ASM., BOTTLE, COOLANT RECOVERY (INCL. 14-17,20)
-
45437627 SHROUDSHROUD
-
55413509 ASM., GROMMET AND INSERTASM., GROMMET AND INSERT
-
67547274 NUT, NYLOKNUT, NYLOK
-
77519202 SCREW, FLANGESCREW, FLANGE
-
81240466 CAP, PRESSURECAP, PRESSURE
-
91240404 RADIATORRADIATOR
-
105413510 GROMMET, RADIATOR MOUNT, LOWERGROMMET, RADIATOR MOUNT, LOWER
-
117518918 SCREWSCREW
-
125437628 CLIPCLIP
-
137080843 CLAMP, SPRINGBANDCLAMP, SPRINGBAND
-
145430743 CAP, OVERFLOW BOTTLE, DRILLEDCAP, OVERFLOW BOTTLE, DRILLED
-
155810279 GASKET, OVERFLOW CAPGASKET, OVERFLOW CAP
-
165433774 PLUG, CAPPLUG, CAP
-
175437257 BOTTLE, COLLANT RECOVERYBOTTLE, COLLANT RECOVERY
-
182411119 FANFAN
-
197081192 CLAMP, HOSECLAMP, HOSE
-
208450128-27 LINE, FUELLINE, FUEL
-
217080492 CABLE TIECABLE TIE
-
227080844 CLAMP, SPRINGBANDCLAMP, SPRINGBAND
-
237518513 BOLT, FLANGEBOLT, FLANGE
-
247080851 CLAMP, HOSECLAMP, HOSE
