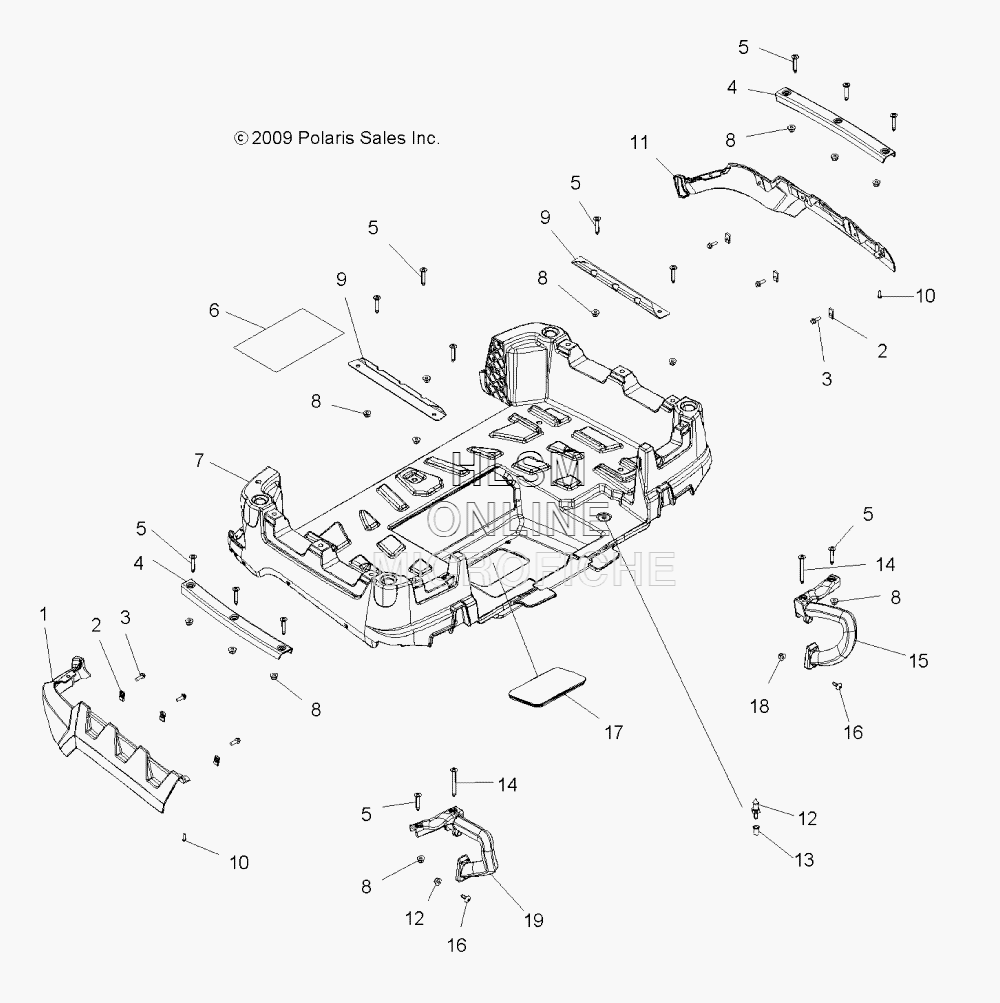

BODY- BOX- REAR для Polaris SPORTSMAN X2 550 (A10TN55AL) (INDY RED) - 2010 года выпуска

  • №
    Артикул
    Название
  • 1
    5437881-293 FENDER, REAR BOX (RIGHT) (INDY RED) (AL)
    FENDER, REAR BOX (RIGHT) (INDY RED) (AL)
  • 2
    7670057 NUT, U TYPE
    NUT, U TYPE
  • 3
    7517386 SCREW
    SCREW
  • 4
    5434803-070 TIE DOWN, SIDE (BLACK)
    TIE DOWN, SIDE (BLACK)
  • 5
    7518235 SCREW
    SCREW
  • 6
    5813012 FOIL, BOX
    FOIL, BOX
  • 7
    5437654-070 BOX, REAR, BASE (BLACK)
    BOX, REAR, BASE (BLACK)
  • 8
    7542343 NUT
    NUT
  • 9
    5437880-498 CHANNEL REAR RACK
    CHANNEL REAR RACK
  • 10
    7518238 SCREW
    SCREW
  • 11
    5437880-293 FENDER, REAR BOX (LEFT) (INDY RED) (AL)
    FENDER, REAR BOX (LEFT) (INDY RED) (AL)
  • 12
    5910284 PIN, SEAT LATCH
    PIN, SEAT LATCH
  • 13
    7542143 INSERT
    INSERT
  • 14
    7518215 SCREW
    SCREW
  • 15
    5436491-070 HANDLE, PASSENGER (LEFT) (BLACK)
    HANDLE, PASSENGER (LEFT) (BLACK)
  • 16
    7517685 SCREW
    SCREW
  • 17
    5413002 PLUG, DRAIN, BOX
    PLUG, DRAIN, BOX
  • 18
    7542153 NUT, NYLOK, FLANGED
    NUT, NYLOK, FLANGED
  • 19
    5436492-070 HANDLE, PASSENGER (RIGHT) (BLACK)
    HANDLE, PASSENGER (RIGHT) (BLACK)
