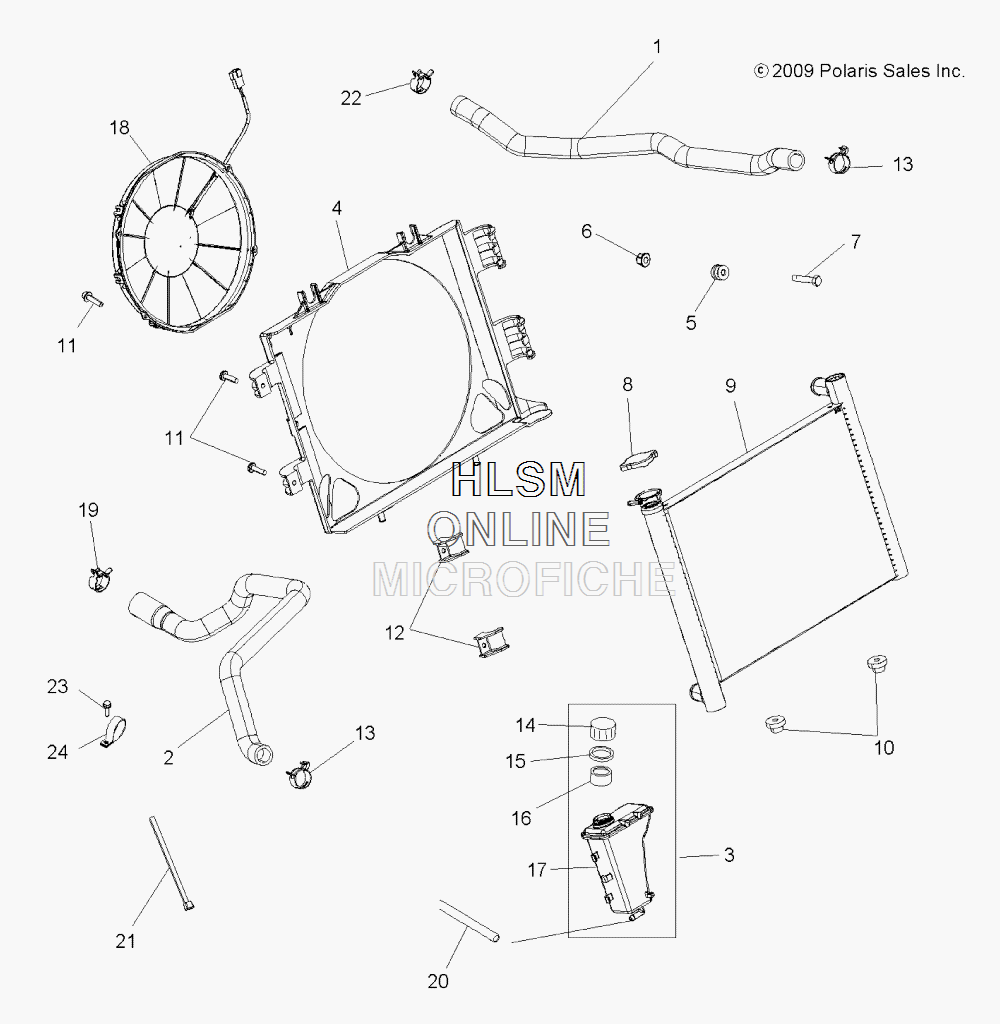

COOLING SYSTEM для Polaris SPORTSMAN TOURING EPS 850 (A10DX85AF) (BOARDWALK BLUE) - 2010 года выпуска

  • №
    Артикул
    Название
  • 1
    1240407 ASM., HOSE, ENGINE OUT
    ASM., HOSE, ENGINE OUT
  • 2
    1240449 ASM., HOSE, ENGINE IN
    ASM., HOSE, ENGINE IN
  • 3
    1240406 ASM., BOTTLE, COOLANT RECOVERY (INCL. 14-17,20)
    ASM., BOTTLE, COOLANT RECOVERY (INCL. 14-17,20)
  • 4
    5437627 SHROUD
    SHROUD
  • 5
    5413509 ASM., GROMMET AND INSERT
    ASM., GROMMET AND INSERT
  • 6
    7547274 NUT, NYLOK
    NUT, NYLOK
  • 7
    7519202 SCREW, FLANGE
    SCREW, FLANGE
  • 8
    1240466 CAP, PRESSURE
    CAP, PRESSURE
  • 9
    1240404 RADIATOR
    RADIATOR
  • 10
    5413510 GROMMET, RADIATOR MOUNT, LOWER
    GROMMET, RADIATOR MOUNT, LOWER
  • 11
    7518918 SCREW
    SCREW
  • 12
    5437628 CLIP
    CLIP
  • 13
    7080843 CLAMP, SPRINGBAND
    CLAMP, SPRINGBAND
  • 14
    5430743 CAP, OVERFLOW BOTTLE, DRILLED
    CAP, OVERFLOW BOTTLE, DRILLED
  • 15
    5810279 GASKET, OVERFLOW CAP
    GASKET, OVERFLOW CAP
  • 16
    5433774 PLUG, CAP
    PLUG, CAP
  • 17
    5437257 BOTTLE, COLLANT RECOVERY
    BOTTLE, COLLANT RECOVERY
  • 18
    2411578 FAN
    FAN
  • 19
    7081192 CLAMP, HOSE
    CLAMP, HOSE
  • 20
    8450128-27 LINE, FUEL
    LINE, FUEL
  • 21
    7080492 CABLE TIE
    CABLE TIE
  • 22
    7080844 CLAMP, SPRINGBAND
    CLAMP, SPRINGBAND
  • 23
    7518513 BOLT, FLANGE
    BOLT, FLANGE
  • 24
    7080851 CLAMP, HOSE
    CLAMP, HOSE
