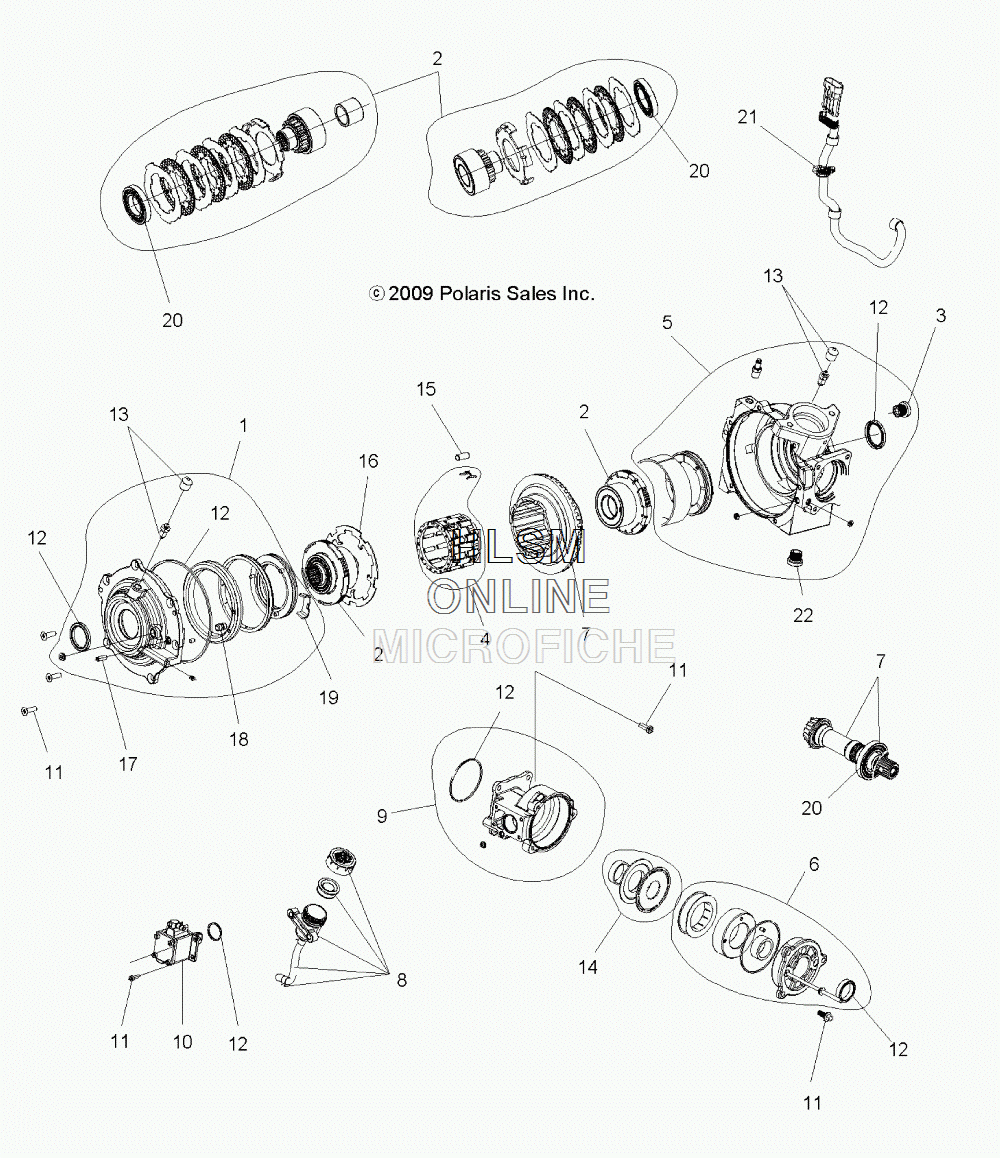

GEARCASE - INTERNAL COMPONENTS - FRONT (BUILT 3/05/10 AND BEFORE) для Polaris SPORTSMAN TOURING EPS 550 (A10DX55AL) (INDY RED) - 2010 года выпуска`
-
№АртикулНазвание
-
-1332828 ASM., GEARCASE, PINLESS, ADCASM., GEARCASE, PINLESS, ADC
-
-3234908 KIT, SPRINGKIT, SPRING
-
13234742 ASM., OUTPUT COVER (INCL. O-RING, DOWEL PIN, SET SCREW, SEAL, COVER, BLEEDER,ASM., OUTPUT COVER (INCL. O-RING, DOWEL PIN, SET SCREW, SEAL, COVER, BLEEDER,
-
23235054 KIT, HUB, OUTPUT, MALE AND FEMALE (INCL. HUBS, DISKS, BEARINGS)KIT, HUB, OUTPUT, MALE AND FEMALE (INCL. HUBS, DISKS, BEARINGS)
-
32203739 PLUG, FILLPLUG, FILL
-
43234466 ASM., ROLL CAGE (INCL. CAGE, H-CLIP SET)ASM., ROLL CAGE (INCL. CAGE, H-CLIP SET)
-
43235263 ASM., ROLL CAGE, ALUMINUM, NT (OPT)ASM., ROLL CAGE, ALUMINUM, NT (OPT)
-
53234747 ASM., GEARCASE, ADC (INCL. CASE, PLUGS, VENT, BLEEDER, SEAL, PISTON, BUSHING)ASM., GEARCASE, ADC (INCL. CASE, PLUGS, VENT, BLEEDER, SEAL, PISTON, BUSHING)
-
63234748 ASM., COVER INPUT (INCL. COVER, BACKDRIVE COIL, SEALS, BEARING, COIL POCKET INSERT)ASM., COVER INPUT (INCL. COVER, BACKDRIVE COIL, SEALS, BEARING, COIL POCKET INSERT)
-
73235055 KIT, GEAR, RING AND PINION (INCL. PINION, BEARING, RING GEAR)KIT, GEAR, RING AND PINION (INCL. PINION, BEARING, RING GEAR)
-
83234751 ASM., RESERVOIR (INCL. BODY, CAP, DIAPHRAGM, HOSE, CLAMP)ASM., RESERVOIR (INCL. BODY, CAP, DIAPHRAGM, HOSE, CLAMP)
-
93234752 ASM., NECK (INCL. NECK, O-RING)ASM., NECK (INCL. NECK, O-RING)
-
103234750 ASM., PUMP (INCL. COMPLETE PUMP)ASM., PUMP (INCL. COMPLETE PUMP)
-
113234745 KIT, FASTENER (INCL. ALL FASTENERS)KIT, FASTENER (INCL. ALL FASTENERS)
-
123234746 KIT, SEAL REPAIR (INCL. ALL SEALS, O-RINGS)KIT, SEAL REPAIR (INCL. ALL SEALS, O-RINGS)
-
133234431 KIT, BLEEDER VALVE (INCL. VALVE, COVER)KIT, BLEEDER VALVE (INCL. VALVE, COVER)
-
143234434 KIT, CAM AND ARMATURE, FWBD (INCL. BUSHING, CAM, ARMATURE PLATE)KIT, CAM AND ARMATURE, FWBD (INCL. BUSHING, CAM, ARMATURE PLATE)
-
153234393 KIT, ROLLER (INCL. FULL ROLLER SET)KIT, ROLLER (INCL. FULL ROLLER SET)
-
163234407 PLATE, ARMATUREPLATE, ARMATURE
-
172203731 SCREW, SETSCREW, SET
-
182203732 BUTTON, THRUSTBUTTON, THRUST
-
192203733 BUTTON, THRUST, DCBUTTON, THRUST, DC
-
203234390 BEARINGBEARING
-
213234601 CLIP, STRAIN RELIEFCLIP, STRAIN RELIEF
-
222203738 PLUG, DRAINPLUG, DRAIN
