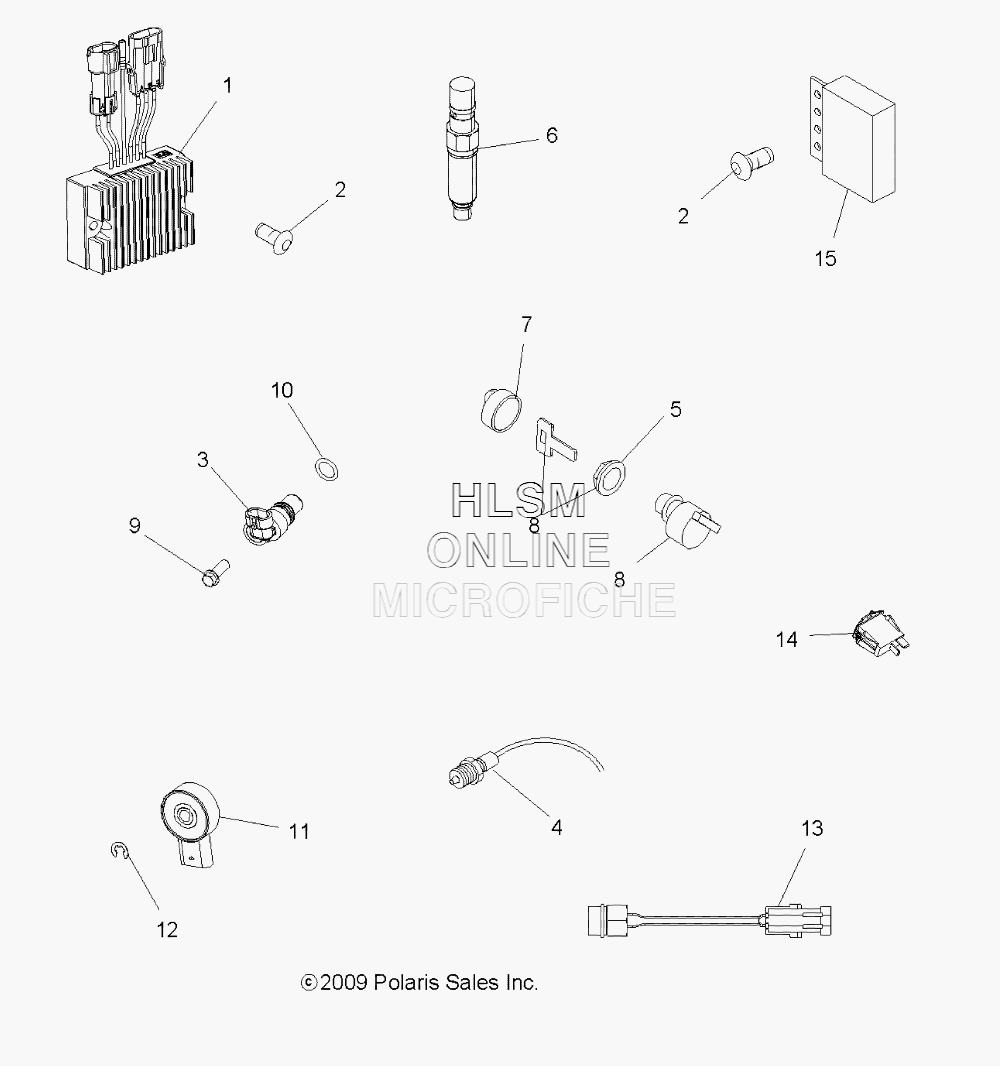

SWITCHES- SENSORS AND ECM для Polaris SPORTSMAN TOURING 500 HO INTL (A10DH50FX) (SAGE BRUSH GREEN METALLIC) - 2010 года выпуска
-
№АртикулНазвание
-
14012192 RECTIFIER/REGULATORRECTIFIER/REGULATOR
-
27512084 SCREWSCREW
-
34012167 SENSOR, SPEEDSENSOR, SPEED
-
43085352 SENSOR, THERMO (ENGINE THERMAL)SENSOR, THERMO (ENGINE THERMAL)
-
55433733 NUT, IGNITION SWITCHNUT, IGNITION SWITCH
-
64011478 SWITCH, BRAKE PRESSURESWITCH, BRAKE PRESSURE
-
75433534 COVER, KEYCOVER, KEY
-
84012166 SWITCH, KEY, 4 POSITION (INCL. 5,7, AND KEY)SWITCH, KEY, 4 POSITION (INCL. 5,7, AND KEY)
-
84010278 BLANK, KEY, SERIES 2000, 2100, 6700, 6800 (SEE NOTE)BLANK, KEY, SERIES 2000, 2100, 6700, 6800 (SEE NOTE)
-
84010321 BLANK, KEY, SERIES 2200, 2300, 2700, 2800 (SEE NOTE)BLANK, KEY, SERIES 2200, 2300, 2700, 2800 (SEE NOTE)
-
93234247 SCREWSCREW
-
103234302 O-RINGO-RING
-
113233835 SWITCH (GEAR POSITION)SWITCH (GEAR POSITION)
-
123233834 RING, RETAININGRING, RETAINING
-
134010808 SENSOR, THERMAL HARNESS (RADIATOR)SENSOR, THERMAL HARNESS (RADIATOR)
-
144011761 SWITCH, HAZARDSWITCH, HAZARD
-
154011553 MODULE, TURN/FLASHMODULE, TURN/FLASH
