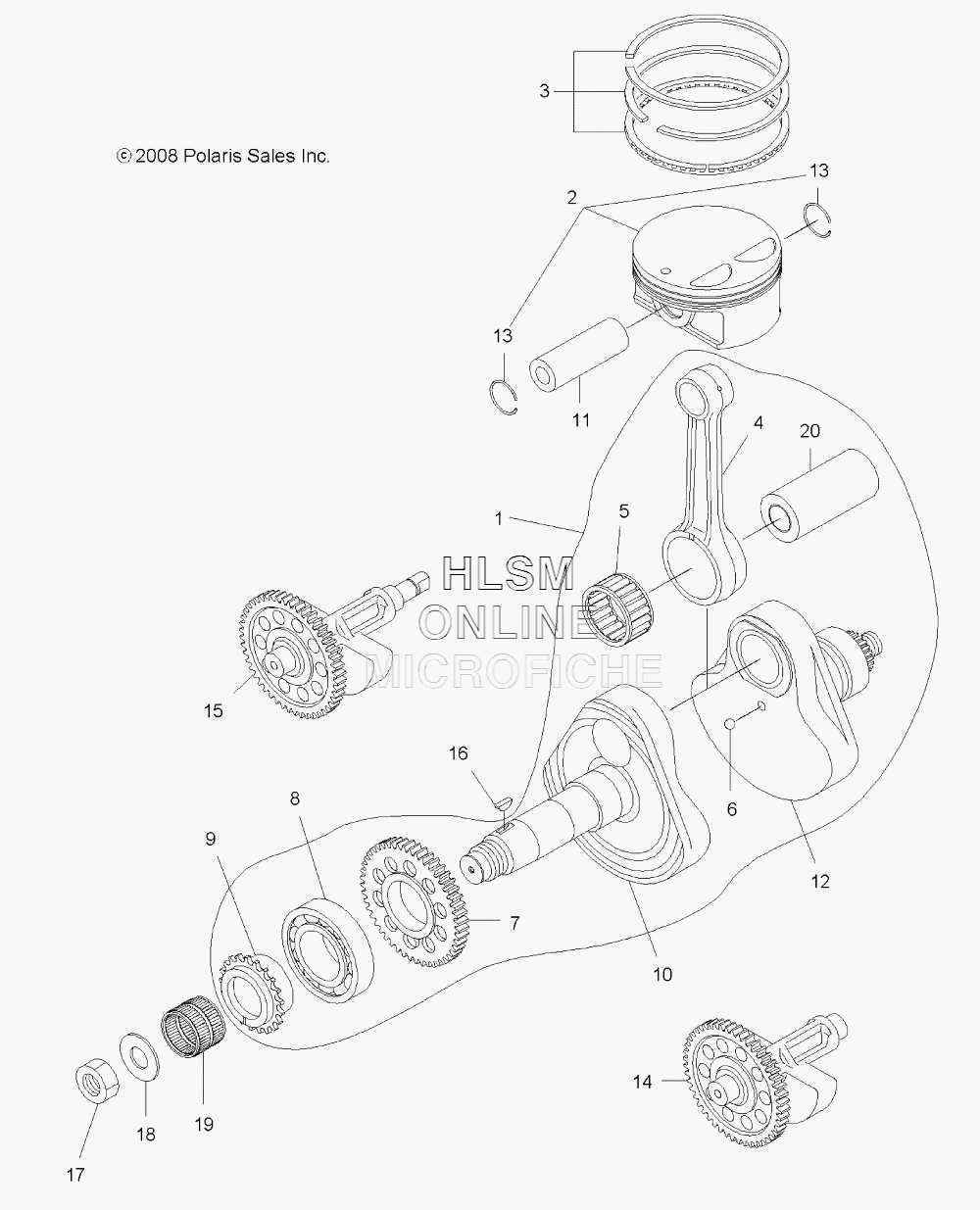

CRANKSHAFT AND PISTON для Polaris SPORTSMAN EPS 550 INTL (A10ZX55FX) (SAGEBRUSH GREEN METALLIC) - 2010 года выпуска

  • №
    Артикул
    Название
  • 1
    3090210 ASM., CRANKSHAFT (INCL. 4-10,12,20)
    ASM., CRANKSHAFT (INCL. 4-10,12,20)
  • 2
    3090173 PISTON, SET, STD. (INCL. PISTON, 3, QTY 2 OF #13)
    PISTON, SET, STD. (INCL. PISTON, 3, QTY 2 OF #13)
  • 2
    3090174 PISTON, SET, .25 OS (INCL. PISTON, 3, QTY 2 OF #13)
    PISTON, SET, .25 OS (INCL. PISTON, 3, QTY 2 OF #13)
  • 2
    3090175 PISTON, SET, .50 OS (INCL. PISTON, 3, QTY 2 OF #13)
    PISTON, SET, .50 OS (INCL. PISTON, 3, QTY 2 OF #13)
  • 3
    3090110 RING, PISTON SET, STD. (INCL. QTY 1 TOP, MIDDLE, LOWER RING)
    RING, PISTON SET, STD. (INCL. QTY 1 TOP, MIDDLE, LOWER RING)
  • 3
    3090176 RING, PISTON SET, .25 OS (INCL. QTY 1 TOP, MIDDLE, LOWER RING)
    RING, PISTON SET, .25 OS (INCL. QTY 1 TOP, MIDDLE, LOWER RING)
  • 3
    3090177 RING, PISTON SET, .50 OS (INCL. QTY 1 TOP, MIDDLE, LOWER RING)
    RING, PISTON SET, .50 OS (INCL. QTY 1 TOP, MIDDLE, LOWER RING)
  • 4
    3090172 ROD, CONNECTING
    ROD, CONNECTING
  • 5
    3085343 BEARING, LARGE END
    BEARING, LARGE END
  • 6
    3085024 BALL STEEL
    BALL STEEL
  • 7
    3090211 GEAR, BALANCER, DRIVE
    GEAR, BALANCER, DRIVE
  • 8
    3080676 BEARING, BALL
    BEARING, BALL
  • 9
    3090108 SPROCKET, CRANK
    SPROCKET, CRANK
  • 10
    3090169 CRANKSHAFT 1
    CRANKSHAFT 1
  • 11
    3090109 PIN, PISTON
    PIN, PISTON
  • 12
    3090170 CRANKSHAFT 2
    CRANKSHAFT 2
  • 13
    3085534 CLIP
    CLIP
  • 14
    3090212 SHAFT, BALANCER 1
    SHAFT, BALANCER 1
  • 15
    3090213 SHAFT, BALANCER 2
    SHAFT, BALANCER 2
  • 16
    3240168 KEY, WOODRUFF
    KEY, WOODRUFF
  • 17
    3090113 NUT
    NUT
  • 18
    3090114 WASHER
    WASHER
  • 19
    3087976 BEARING, NEEDLE
    BEARING, NEEDLE
  • 20
    3090171 PIN, CRANK
    PIN, CRANK
