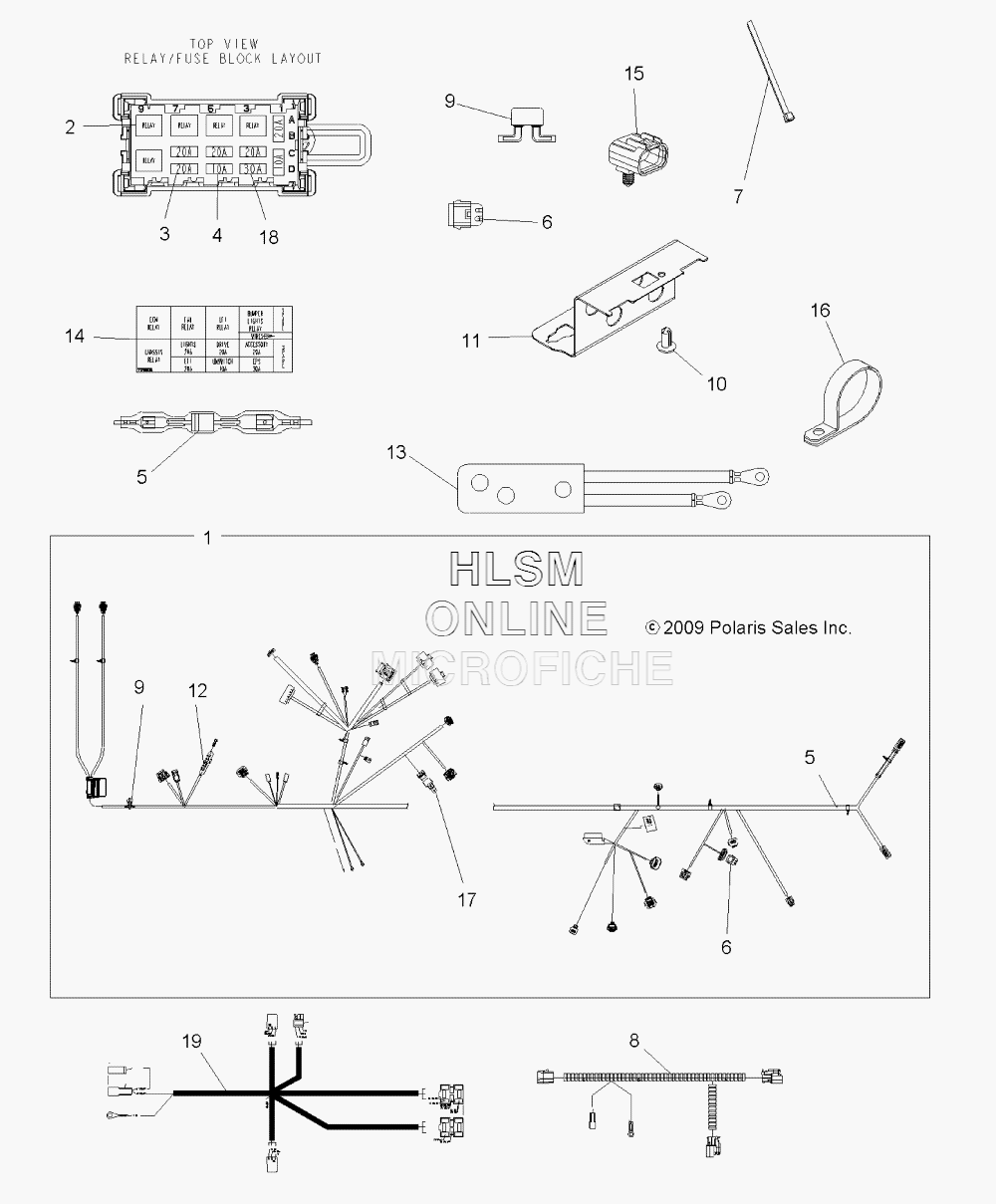

HARNESS для Polaris SPORTSMAN EPS 550 (A10ZX55AT) (NBU CAMO) - 2010 года выпуска

  • №
    Артикул
    Название
  • 1
    2411354 HARNESS, MAIN, SINGLE
    HARNESS, MAIN, SINGLE
  • 2
    4011283 RELAY
    RELAY
  • 3
    2434017 FUSE, 20AMP
    FUSE, 20AMP
  • 4
    2434016 FUSE, 10AMP
    FUSE, 10AMP
  • 5
    2411035 DIODE, 6AMP
    DIODE, 6AMP
  • 6
    4010924 MODULE, RESISTOR
    MODULE, RESISTOR
  • 7
    7080138 CABLE TIE
    CABLE TIE
  • 8
    2411236 HARNESS, ACCESORY, WORKLIGHTS (AT)
    HARNESS, ACCESORY, WORKLIGHTS (AT)
  • 9
    2411228 BREAKER, CURCUIT, 8 AMP
    BREAKER, CURCUIT, 8 AMP
  • 10
    7670125 FASTENER, PUSH-ON CLIP
    FASTENER, PUSH-ON CLIP
  • 11
    5253502 BRACKET, FUSE BLOCK
    BRACKET, FUSE BLOCK
  • 12
    2202607 KIT, FUSIBLE LINK, .8 MM
    KIT, FUSIBLE LINK, .8 MM
  • 12
    2202670 KIT, FUSIBLE LINK, 1.0 MM
    KIT, FUSIBLE LINK, 1.0 MM
  • 13
    2411186 HARNESS, WINCH, PRE-WIRE
    HARNESS, WINCH, PRE-WIRE
  • 14
    7175808 LABEL, FUSE BOX
    LABEL, FUSE BOX
  • 15
    4012170 COVER, DIAGNOSTIC
    COVER, DIAGNOSTIC
  • 16
    7080807 CLAMP, HOSE
    CLAMP, HOSE
  • 17
    4011407 RELAY
    RELAY
  • 18
    2434015 FUSE, MAIN, 30 AMP
    FUSE, MAIN, 30 AMP
  • 19
    2411066 HARNESS, WIRE, WARMERS (AT)
    HARNESS, WIRE, WARMERS (AT)
