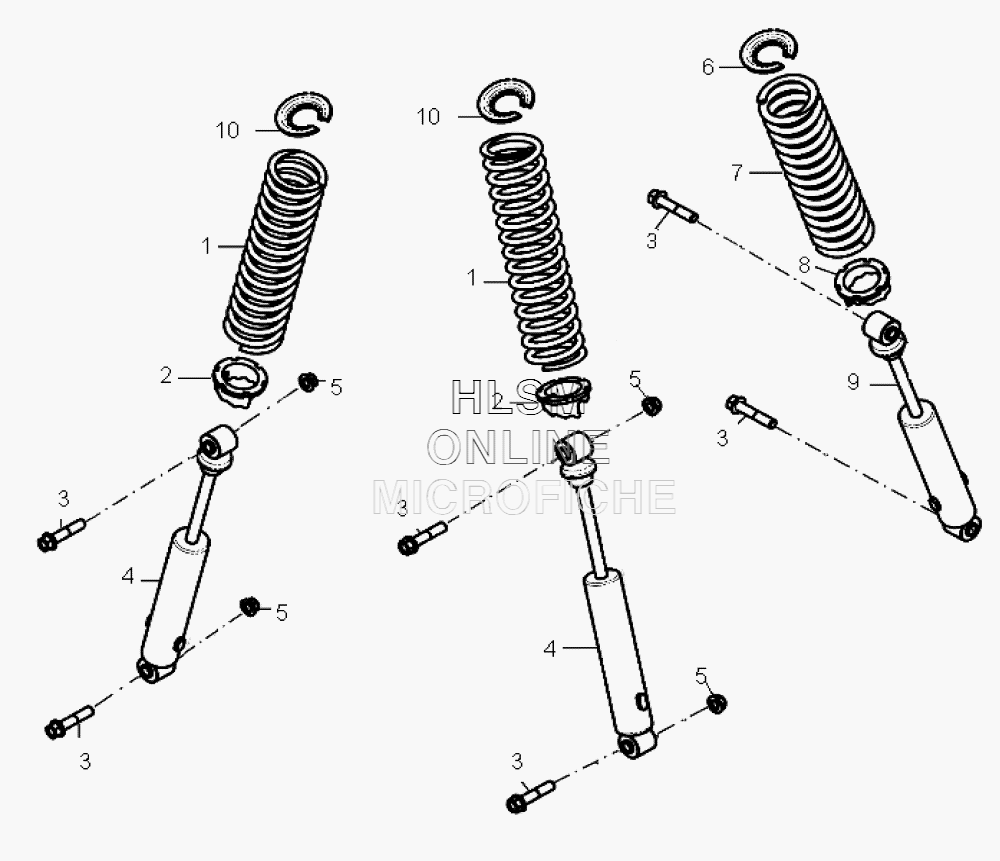

SUSPENSION- SHOCKS для Polaris SPORTSMAN 90 (A10FA09AB) (RED) - 2010 года выпуска`
-
№АртикулНазвание
-
10454644-067 SPRING, SUSPENSION, FRONT (BLACK)SPRING, SUSPENSION, FRONT (BLACK)
-
20453701 COLLAR, ADJUSTMENT, SPRING, FRONTCOLLAR, ADJUSTMENT, SPRING, FRONT
-
30450380 BOLT, HEXBOLT, HEX
-
40454645 SHOCK, FRONTSHOCK, FRONT
-
50450249 NUT, FLANGENUT, FLANGE
-
60453702 RETAINER, SPRINGRETAINER, SPRING
-
70454213-067 SPRING, SUSPENSION, REAR (BLACK)SPRING, SUSPENSION, REAR (BLACK)
-
70453703-067 SPRING, SUSPENSION, REAR (BLACK) (OPT.) (HEAVY)SPRING, SUSPENSION, REAR (BLACK) (OPT.) (HEAVY)
-
80453704 COLLAR, ADJUSTMENTCOLLAR, ADJUSTMENT
-
90454214 SHOCK, REARSHOCK, REAR
-
100454104 RETAINER, SUSPENSION, FRONTRETAINER, SUSPENSION, FRONT
