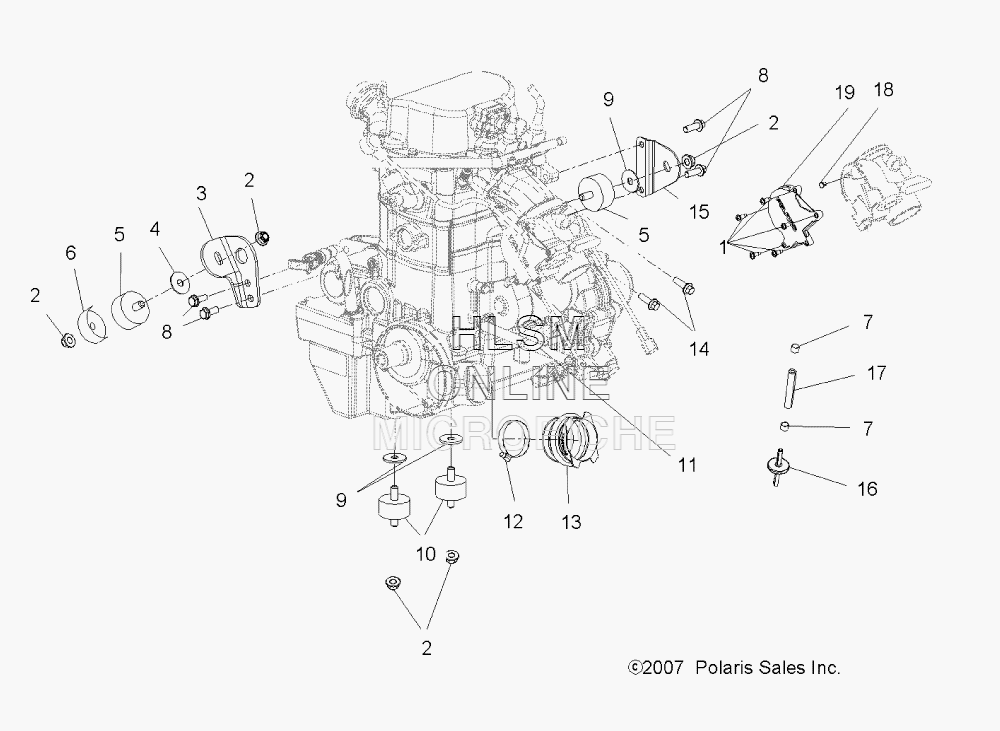

MOUNTING для Polaris SPORTSMAN 800 EFI (A10MN76AX) (SAGE BRUSH GREEN METALLIC) - 2010 года выпуска
-
№АртикулНазвание
-
13131515 SCREWSCREW
-
27547108 NUT, FLANGE LOCKNUT, FLANGE LOCK
-
35244771-067 MOUNT, ENGINE, LOWER, FRONT (BLACK)MOUNT, ENGINE, LOWER, FRONT (BLACK)
-
47555823 WASHERWASHER
-
53022071 ISOLATORISOLATOR
-
65245043 BRACKET, TORQUE STOPBRACKET, TORQUE STOP
-
77080307 CLAMP, HOSECLAMP, HOSE
-
87518364 BOLTBOLT
-
97555815 WASHER, FLATWASHER, FLAT
-
103022076 ISOLATORISOLATOR
-
114011139 CABLE, GROUND, STARTER/FRAMECABLE, GROUND, STARTER/FRAME
-
127080909 CLAMP, NARROWBANDCLAMP, NARROWBAND
-
135412634 BOOT, INTAKEBOOT, INTAKE
-
147516734 SCREWSCREW
-
155247368 BRACKET, MOUNT, ENGINE, TOPBRACKET, MOUNT, ENGINE, TOP
-
167052038 VALVE, CHECKVALVE, CHECK
-
178450113-04 HOSEHOSE
-
183131514 GUIDE, THROTTLE CABLEGUIDE, THROTTLE CABLE
-
191202578 ASM., COVER AND O-RINGASM., COVER AND O-RING
