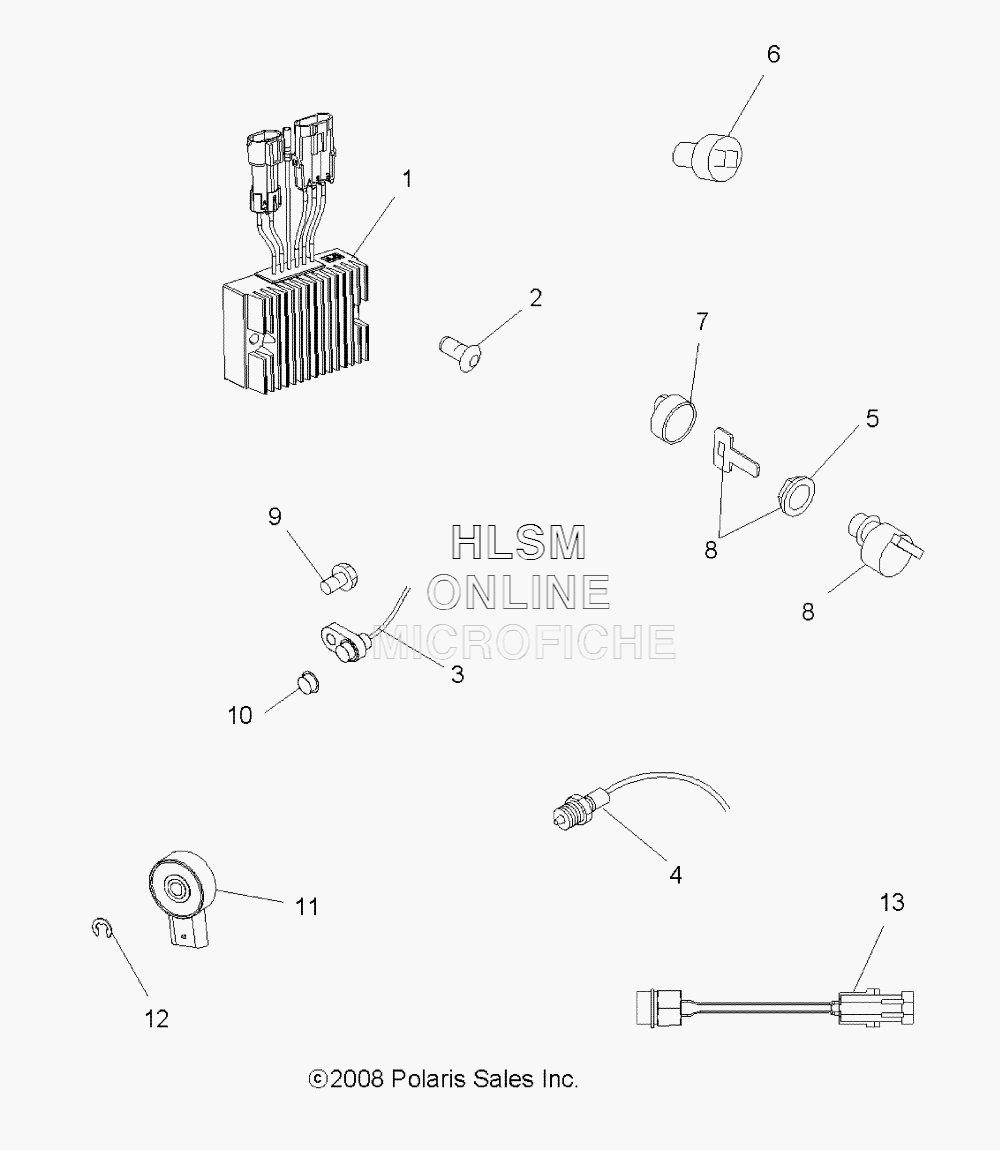

SWITCHES- SENSORS AND ECM для Polaris SPORTSMAN 500 HO (A10MH50AX) (SAGE BRUSH GREEN METALLIC) - 2010 года выпуска`
-
№АртикулНазвание
-
14012192 RECTIFIER/REGULATORRECTIFIER/REGULATOR
-
27512024 SCREWSCREW
-
34010298 SENSOR, HALL EFFECTSENSOR, HALL EFFECT
-
43085352 SENSOR, THERMO (ENGINE THERMAL)SENSOR, THERMO (ENGINE THERMAL)
-
55433733 NUT, IGNITION SWITCHNUT, IGNITION SWITCH
-
64110164 SWITCH (BRAKE PRESSURE)SWITCH (BRAKE PRESSURE)
-
75433534 COVER, KEYCOVER, KEY
-
84012165 SWITCH, KEY, 3 POSITION (INCL. 5,7, AND KEY)SWITCH, KEY, 3 POSITION (INCL. 5,7, AND KEY)
-
84010278 BLANK, KEY, SERIES 2000, 2100, 6700, 6800 (SEE NOTE)BLANK, KEY, SERIES 2000, 2100, 6700, 6800 (SEE NOTE)
-
84010321 BLANK, KEY, SERIES 2200, 2300, 2700, 2800 (SEE NOTE)BLANK, KEY, SERIES 2200, 2300, 2700, 2800 (SEE NOTE)
-
97517658 SCREWSCREW
-
105132382 CAPCAP
-
113233835 SWITCH (GEAR POSITION)SWITCH (GEAR POSITION)
-
123233834 RING, RETAININGRING, RETAINING
-
134010808 SENSOR, THERMAL HARNESS (RADIATOR)SENSOR, THERMAL HARNESS (RADIATOR)
