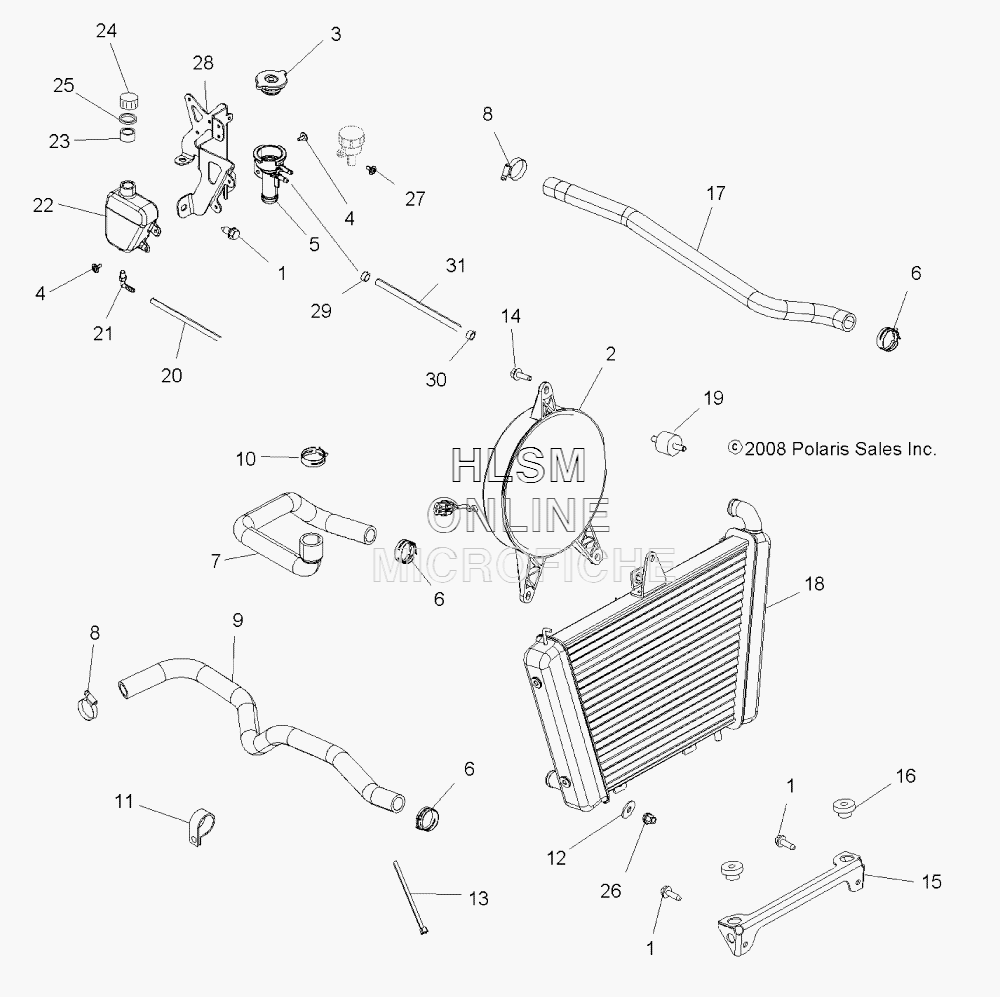

COOLING SYSTEM для Polaris SPORTSMAN 400 HO 4X4 (A10LH46AZ) (INDY RED) - 2010 года выпуска

  • №
    Артикул
    Название
  • 1
    7518529 SCREW
    SCREW
  • 2
    2520850 ASM., FAN AND MOTOR
    ASM., FAN AND MOTOR
  • 3
    1240508 CAP, PRESSURE
    CAP, PRESSURE
  • 4
    7512084 SCREW
    SCREW
  • 5
    5435196 FILLER, REMOTE COOLANT (BUILT 11/05/09 AND BEFORE)
    FILLER, REMOTE COOLANT (BUILT 11/05/09 AND BEFORE)
  • 5
    5438110 FILLER, REMOTE COOLANT (BUILT 11/06/09 AND AFTER)
    FILLER, REMOTE COOLANT (BUILT 11/06/09 AND AFTER)
  • 6
    7080841 CLAMP, SPRINGBAND
    CLAMP, SPRINGBAND
  • 7
    5413367 HOSE, ENGINE FILLER
    HOSE, ENGINE FILLER
  • 8
    7080696 CLAMP, HOSE
    CLAMP, HOSE
  • 9
    5413365 HOSE, ENGINE, LOWER
    HOSE, ENGINE, LOWER
  • 10
    7080844 CLAMP, SPRINGBAND
    CLAMP, SPRINGBAND
  • 11
    7080807 CLAMP, HOSE
    CLAMP, HOSE
  • 12
    7552801 WASHER, SPRING LOCK
    WASHER, SPRING LOCK
  • 13
    7080138 CABLE TIE
    CABLE TIE
  • 14
    7517975 BOLT
    BOLT
  • 15
    5251445-067 BRACKET, RADIATOR (BLACK)
    BRACKET, RADIATOR (BLACK)
  • 16
    5410584 BUSHING, MOUNT, LOWER RADIATOR
    BUSHING, MOUNT, LOWER RADIATOR
  • 17
    5413366 HOSE, ENGINE, UPPER
    HOSE, ENGINE, UPPER
  • 18
    1240361 RADIATOR (SWITCH NOT INCLUDED)
    RADIATOR (SWITCH NOT INCLUDED)
  • 18
    4011980 SWITCH, THERMAL
    SWITCH, THERMAL
  • 19
    3110071 MOUNT, RUBBER
    MOUNT, RUBBER
  • 20
    8450003-1525 LINE, FUEL
    LINE, FUEL
  • 21
    7052065 FITTING, 90 DEGREE
    FITTING, 90 DEGREE
  • 22
    5436936 TANK, SURGE
    TANK, SURGE
  • 23
    5433774 PLUG, CAP
    PLUG, CAP
  • 24
    5430743 CAP, OVERFLOW
    CAP, OVERFLOW
  • 25
    5810279 GASKET
    GASKET
  • 26
    7542105 NUT
    NUT
  • 27
    7517560 SCREW
    SCREW
  • 28
    5252816 BRACKET, RADIATOR FILL MOUNT
    BRACKET, RADIATOR FILL MOUNT
  • 29
    7080003 CLAMP, HOSE
    CLAMP, HOSE
  • 30
    7080236 CLAMP, HOSE
    CLAMP, HOSE
  • 31
    8450040-600 LINE, FUEL
    LINE, FUEL
