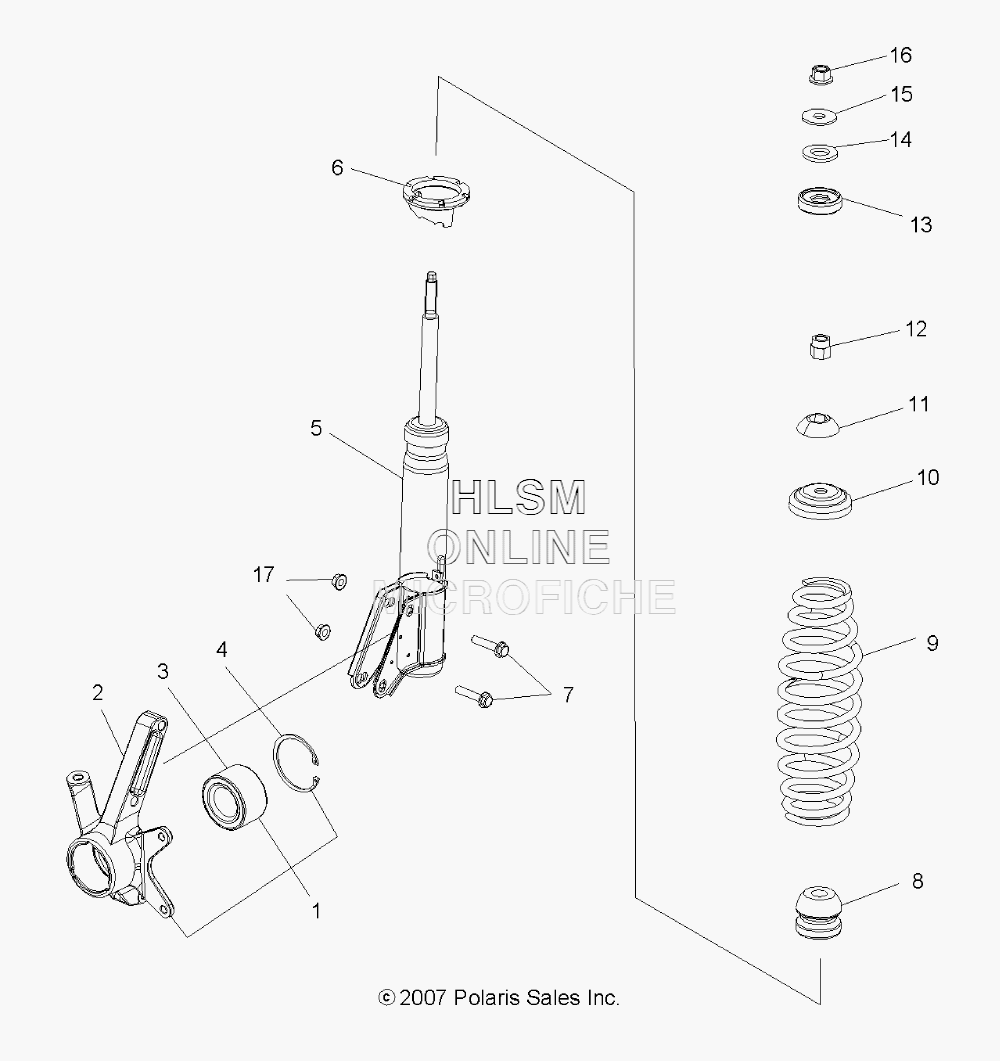

SUSPENSION- FRONT STRUT для Polaris SPORTSMAN 300 4X4 (A10LH27AZ) (SAGE BRUSH GREEN METALLIC) - 2010 года выпуска
-
№АртикулНазвание
-
11521209 ASM., KNUCKLE FRONT (LEFT) (INCL.2,3,4)ASM., KNUCKLE FRONT (LEFT) (INCL.2,3,4)
-
11521210 ASM., KNUCKLE, FRONT (RIGHT) (INCL.2,3,4)ASM., KNUCKLE, FRONT (RIGHT) (INCL.2,3,4)
-
25135607 KNUCKLE, FRONT (LEFT)KNUCKLE, FRONT (LEFT)
-
25135608 KNUCKLE, FRONT (RIGHT)KNUCKLE, FRONT (RIGHT)
-
33514634 BEARINGBEARING
-
47710507 RING, RETAININGRING, RETAINING
-
57043274 STRUT, FRONTSTRUT, FRONT
-
65631795 CAM, ADJUSTERCAM, ADJUSTER
-
77518474 SCREW, FLANGESCREW, FLANGE
-
85412665 BUMPERBUMPER
-
97043399-067 SPRING, COMPRESSION (BLACK)SPRING, COMPRESSION (BLACK)
-
105243364 RETAINER, SPRINGRETAINER, SPRING
-
115432871 PIVOT, BALL, BOTTOMPIVOT, BALL, BOTTOM
-
125135054 SPACERSPACER
-
135432872 PIVOT, BALL, TOPPIVOT, BALL, TOP
-
145810291 SPACER, RUBBERSPACER, RUBBER
-
157555749 WASHERWASHER
-
167547327 NUT, FLANGENUT, FLANGE
-
177547313 NUT, FLANGENUT, FLANGE
