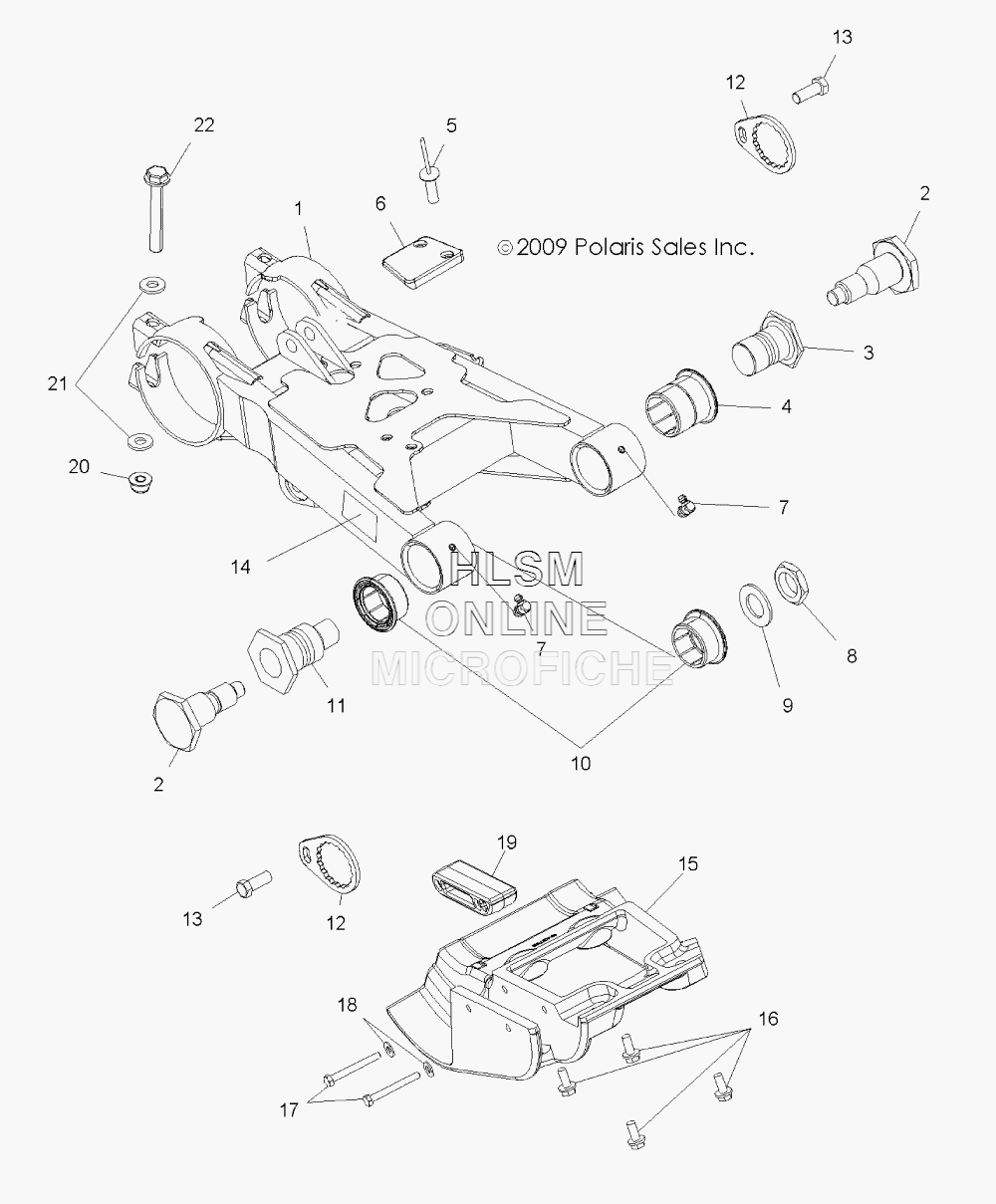

SUSPENSION- SWING ARM для Polaris SCRAMBLER 500 4X4 (A10NG50AA) (INDY RED) - 2010 года выпуска
-
№АртикулНазвание
-
11542756-067 ASM., SWING ARM (BLACK) (INCL. 4,7,10)ASM., SWING ARM (BLACK) (INCL. 4,7,10)
-
25134321 BOLT, PIVOTBOLT, PIVOT
-
35133166 BUSHING, PIVOT (LEFT)BUSHING, PIVOT (LEFT)
-
45434545 BUSHING (LEFT)BUSHING (LEFT)
-
57661046 RIVETRIVET
-
65432727 GUIDE, CHAIN, PADGUIDE, CHAIN, PAD
-
77080510 FITTINGFITTING
-
87547082 NUT, HEX, JAMNUT, HEX, JAM
-
97556035 WASHER, FLATWASHER, FLAT
-
105434546 BUSHING (RIGHT)BUSHING (RIGHT)
-
115133167 BUSHING, PIVOT (RIGHT)BUSHING, PIVOT (RIGHT)
-
125247488 BRACKET, BOLT LOCKBRACKET, BOLT LOCK
-
137515399 SCREWSCREW
-
147078572 DECAL, 'CHAIN FREE PLAY'DECAL, 'CHAIN FREE PLAY'
-
151542755 ASM., SWING ARM GUARDASM., SWING ARM GUARD
-
167518181 SCREWSCREW
-
177510006 BOLTBOLT
-
187558301 WASHER, FLATWASHER, FLAT
-
195435411 GUIDE, CHAINGUIDE, CHAIN
-
207547066 NUT, NYLOKNUT, NYLOK
-
217555883 WASHERWASHER
-
227512576 BOLTBOLT
