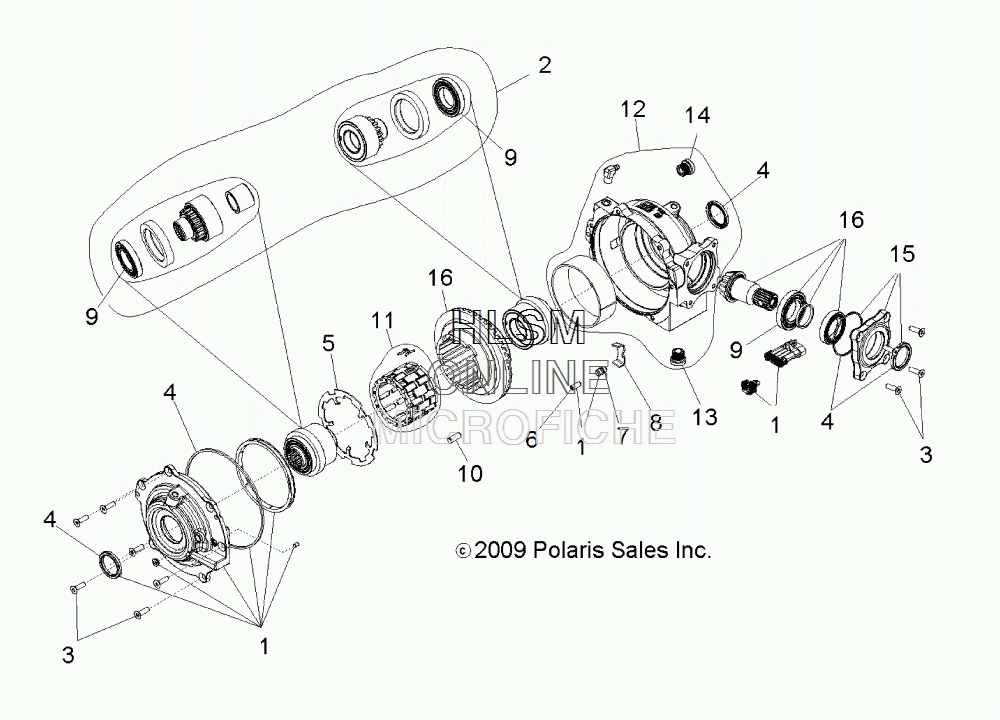

FRONT GEARCASE INTERNALS (BUILT 3/04/10 AND BEFORE) для Polaris RZR S 800EFI BOARDWALK BLUE [R10VH76AQ] - 2010 года выпуска`
-
№АртикулНазвание
-
-1332831 ASM., GEARCASE, FRONT (BUILT 3/04/10 AND BEFORE)ASM., GEARCASE, FRONT (BUILT 3/04/10 AND BEFORE)
-
-1332803 ASM., GEARCASE, FRONT (BUILT 3/05/10 AND AFTER)ASM., GEARCASE, FRONT (BUILT 3/05/10 AND AFTER)
-
12203726 ASM., COVER OUTPUTASM., COVER OUTPUT
-
23235057 KIT, OUTPUT HUB, MALE AND FEMALE (INCL. BEARING,KIT, OUTPUT HUB, MALE AND FEMALE (INCL. BEARING,
-
32203730 KIT, FASTENERKIT, FASTENER
-
42203729 KIT, SEAL REPAIRKIT, SEAL REPAIR
-
53234407 PLATE, ARMATUREPLATE, ARMATURE
-
62203731 SCREW, SETSCREW, SET
-
72203732 BUTTON, THRUSTBUTTON, THRUST
-
82203733 BUTTON, THRUSTBUTTON, THRUST
-
93234390 BEARINGBEARING
-
103234393 KIT, ROLLERKIT, ROLLER
-
113234466 ASM., ROLL CAGE (INCL. H-CLIP SPRING, ROLL CAGE)ASM., ROLL CAGE (INCL. H-CLIP SPRING, ROLL CAGE)
-
113235263 ASM., ROLL CAGE, ALUMINUM, NT (OPT)ASM., ROLL CAGE, ALUMINUM, NT (OPT)
-
122203735 KIT, GEARCASE (INCL. GEARCASE, OIL SEAL, BUSHING, BARBED HOSE FITTING, DRAIN PLUG, FILL PLUG)KIT, GEARCASE (INCL. GEARCASE, OIL SEAL, BUSHING, BARBED HOSE FITTING, DRAIN PLUG, FILL PLUG)
-
132203738 PLUG, DRAINPLUG, DRAIN
-
142203739 PLUG, FILLPLUG, FILL
-
152203736 ASM., INPUT COVER (INCL. OIL SEAL, INPUT COVER, O-RING)ASM., INPUT COVER (INCL. OIL SEAL, INPUT COVER, O-RING)
-
163235058 KIT, GEAR, RING AND PINION (INCL. CLUTCH HOUSING, PINION, BEARING, SPACER, BALL BEARING)KIT, GEAR, RING AND PINION (INCL. CLUTCH HOUSING, PINION, BEARING, SPACER, BALL BEARING)
