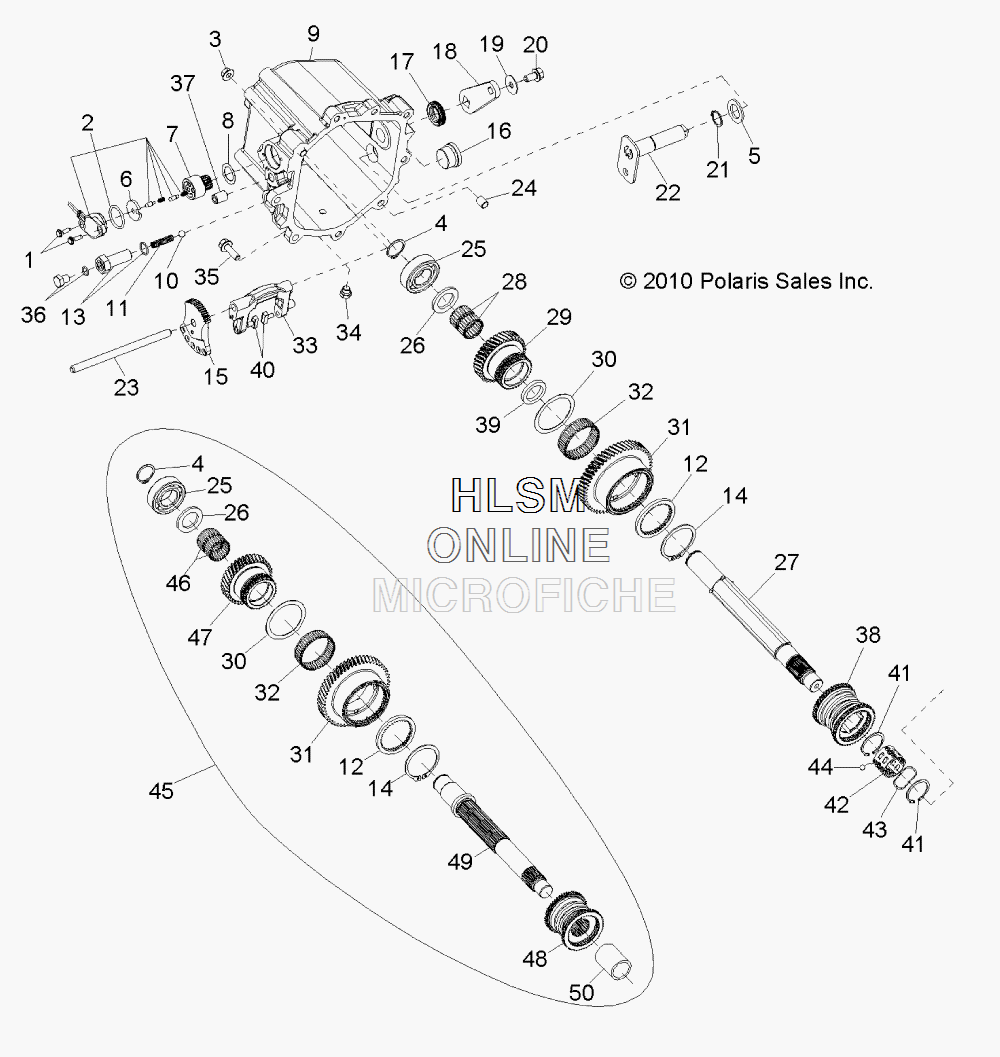

MAIN GEARCASE INTERNAL COMPONENTS 2 (BUILT 5/16/10 AND BEFORE) для Polaris RZR S 800 EFI STEALTH BLACK INTL [R10VH76FX] - 2010 года выпуска
-
№АртикулНазвание
-
-3235064 SUBASM., TRANSMISSIONSUBASM., TRANSMISSION
-
13234525 SCREW, FLANGESCREW, FLANGE
-
23234871 ASM., SENSORASM., SENSOR
-
33234500 NUT, FLANGENUT, FLANGE
-
43234893 RING, RETAININGRING, RETAINING
-
53234899 WASHERWASHER
-
63234523 SPACERSPACER
-
73234522 SENSOR, DRUM GEARSENSOR, DRUM GEAR
-
83234521 WASHERWASHER
-
93234890 ASM., COVER, SHIFT HOUSING (INCL. 17)ASM., COVER, SHIFT HOUSING (INCL. 17)
-
103234520 BALLBALL
-
113234870 SPRING, COMPRESSIONSPRING, COMPRESSION
-
123234874 PLATE, RETAININGPLATE, RETAINING
-
133234481 ASM., SLEEVE, DETENTASM., SLEEVE, DETENT
-
143234879 RING, RETAININGRING, RETAINING
-
153235067 PLATE, GEAR DETENTPLATE, GEAR DETENT
-
165133736 PLUG, FILL, W/O-RINGPLUG, FILL, W/O-RING
-
173234493 SEAL, OILSEAL, OIL
-
183234492 LEVER, SHIFT CABLELEVER, SHIFT CABLE
-
193234491 WASHERWASHER
-
203234490 SCREWSCREW
-
213234494 RING, RETAININGRING, RETAINING
-
223234900 ASM., SHIFTERASM., SHIFTER
-
233234914 PIN, PIVOTPIN, PIVOT
-
243234503 BUSHING, DOWELBUSHING, DOWEL
-
253234502 BEARING, BALLBEARING, BALL
-
263234510 WASHER, THRUSTWASHER, THRUST
-
303234905 WASHER, THRUSTWASHER, THRUST
-
313234535 GEAR, CLUTCH, 53TGEAR, CLUTCH, 53T
-
323234536 BEARING, NEEDLEBEARING, NEEDLE
-
333235066 YOKE, CLUTCHYOKE, CLUTCH
-
345133731 PLUG, DRAINPLUG, DRAIN
-
357518172 SCREW, FLANGESCREW, FLANGE
-
363234869 ASM., SCREWASM., SCREW
-
373234484 SET, SCREWSET, SCREW
-
403234868 BLADE, CLUTCH YOKEBLADE, CLUTCH YOKE
-
453235255 KIT, CLUTCH SHAFT ASM.KIT, CLUTCH SHAFT ASM.
-
463234532 BEARING, NEEDLEBEARING, NEEDLE
-
473234903 GEAR, CLUTCH, HIGH, 36TGEAR, CLUTCH, HIGH, 36T
-
483234875 ASM., COLLAR, SHIFINGASM., COLLAR, SHIFING
-
493234872 ASM., SHAFT, CLUTCHASM., SHAFT, CLUTCH
-
503234876 SPACER, PARK/REVERSESPACER, PARK/REVERSE
