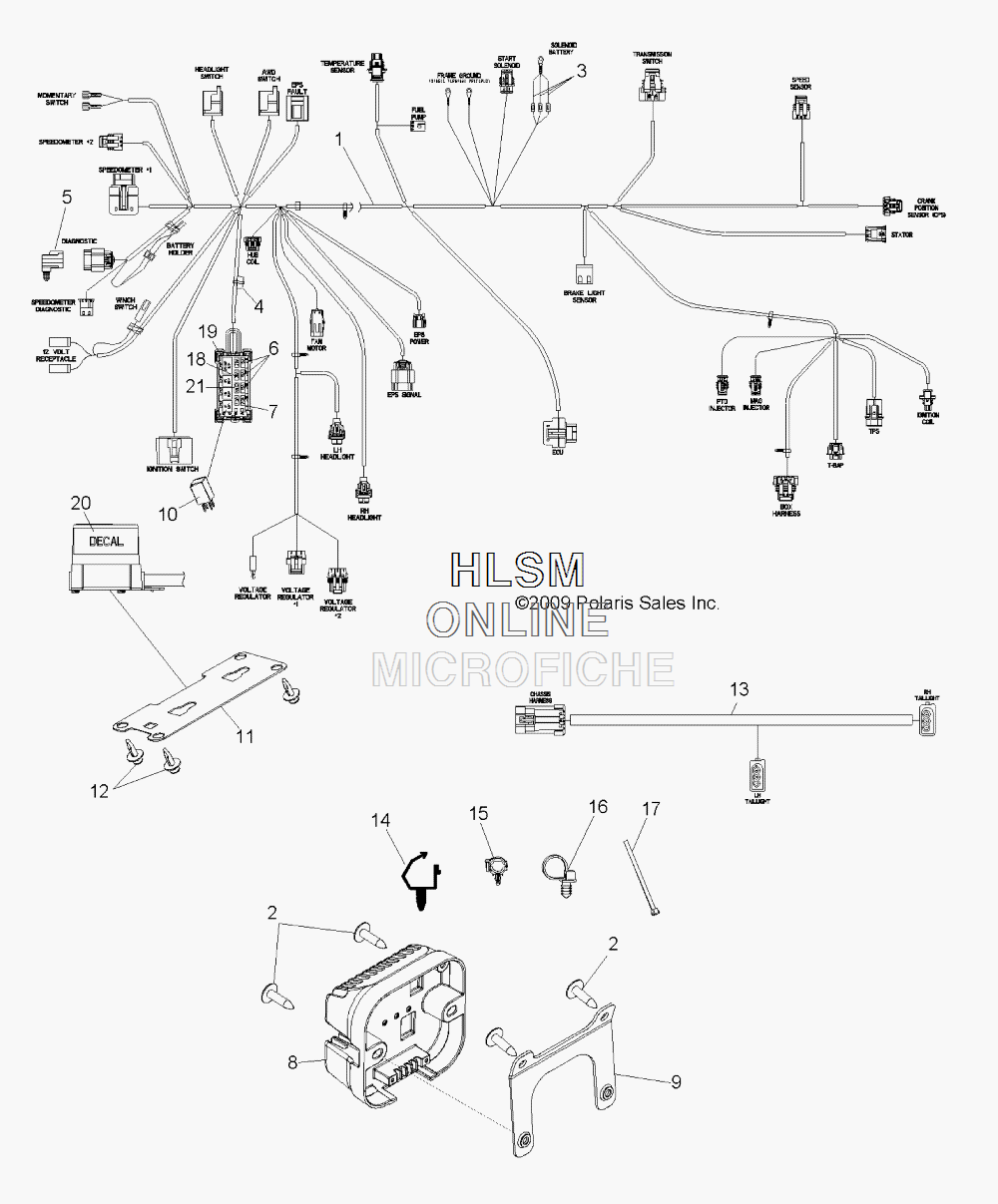

WIRE HARNESS- EPS для Polaris RZR 800 EFI SUNSET RED POWERSTEERING [R10VY76AZ] - 2010 года выпуска

  • №
    Артикул
    Название
  • 1
    2411531 HARNESS, CHASSIS, EPS (INCL. 4-7,10,18-21, ALL KITS)
    HARNESS, CHASSIS, EPS (INCL. 4-7,10,18-21, ALL KITS)
  • 1
    2875542 KIT, HARNESS, T-BAP
    KIT, HARNESS, T-BAP
  • 1
    2878496 KIT, HARNESS, ENGINE TEMP
    KIT, HARNESS, ENGINE TEMP
  • 1
    2203801 KIT, HARNESS, TPS
    KIT, HARNESS, TPS
  • 1
    2878497 KIT, HARNESS, CPS
    KIT, HARNESS, CPS
  • 2
    7517916 SCREW
    SCREW
  • 3
    2202670 KIT, FUSIBLE LINK, 1 MM
    KIT, FUSIBLE LINK, 1 MM
  • 4
    2410881 BREAKER, CIRCUIT, 20 AMP
    BREAKER, CIRCUIT, 20 AMP
  • 5
    4012170 COVER, DIAGNOSTIC W/CLIP
    COVER, DIAGNOSTIC W/CLIP
  • 6
    4010859 FUSE, 15 AMP
    FUSE, 15 AMP
  • 7
    2434017 FUSE, PARK, 20 AMP
    FUSE, PARK, 20 AMP
  • 8
    4012748 REGULATOR
    REGULATOR
  • 9
    5252587 BRACKET, REGULATOR MOUNT
    BRACKET, REGULATOR MOUNT
  • 10
    4011283 RELAY, SEALED
    RELAY, SEALED
  • 11
    5253675 PLATE, FUSE MOUNT
    PLATE, FUSE MOUNT
  • 12
    7661855 RIVET
    RIVET
  • 13
    2411384 HARNESS, BOX
    HARNESS, BOX
  • 14
    7670109 CLIP, ROUTING
    CLIP, ROUTING
  • 15
    4020149 CLIP, ROSEBUD
    CLIP, ROSEBUD
  • 16
    7081334 STRAP, TREE MOUNT, CABLE TIE
    STRAP, TREE MOUNT, CABLE TIE
  • 17
    7080761 CABLE TIE
    CABLE TIE
  • 18
    2434015 FUSE, MAIN, 30 AMP
    FUSE, MAIN, 30 AMP
  • 19
    4011284 RELAY
    RELAY
  • 20
    7176705 DECAL, FUSE/RELAY BLOCK
    DECAL, FUSE/RELAY BLOCK
  • 21
    4012440 RESISTOR, 120 OHM
    RESISTOR, 120 OHM
