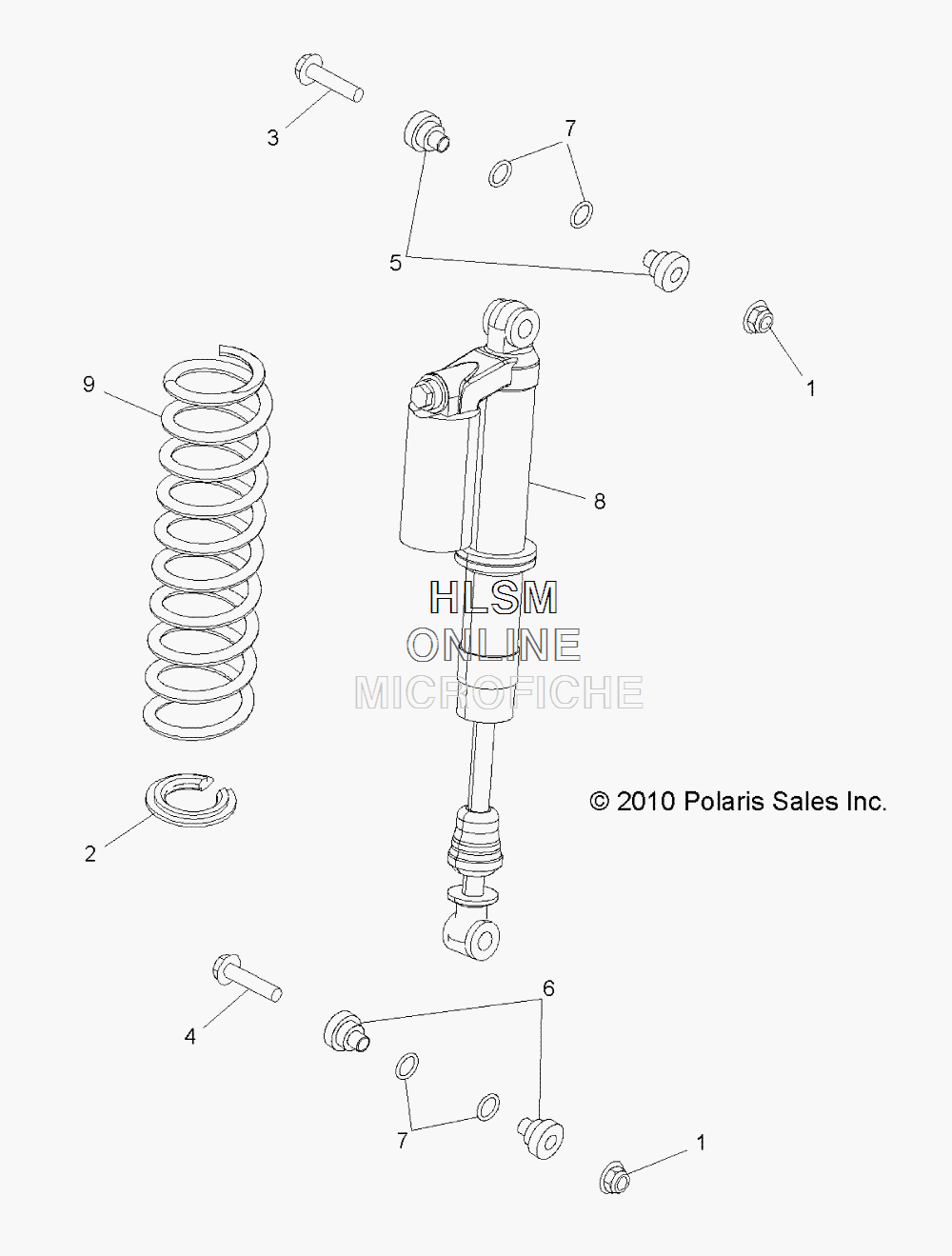

FRONT SHOCK- MOUNTING для Polaris RZR 800 EFI BLACK WALKER EVANS EDITION [R10VH76AI] - 2010 года выпуска

  • №
    Артикул
    Название
  • 1
    7547313 NUT, FLANGED
    NUT, FLANGED
  • 2
    5254385 RETAINER, SPRING
    RETAINER, SPRING
  • 3
    7518474 BOLT
    BOLT
  • 4
    7518468 BOLT
    BOLT
  • 5
    5137275 BUSHING, REDUCER
    BUSHING, REDUCER
  • 6
    5137412 BUSHING, REDUCER
    BUSHING, REDUCER
  • 7
    5412290 O-RING (BUILT 5/02/10 AND BEFORE)
    O-RING (BUILT 5/02/10 AND BEFORE)
  • 7
    5414085 O-RING (BUILT 5/03/10 AND AFTER)
    O-RING (BUILT 5/03/10 AND AFTER)
  • 8
    7043646 SHOCK, FRONT
    SHOCK, FRONT
  • 9
    7043648-133 SPRING, FRONT, WHITE
    SPRING, FRONT, WHITE
