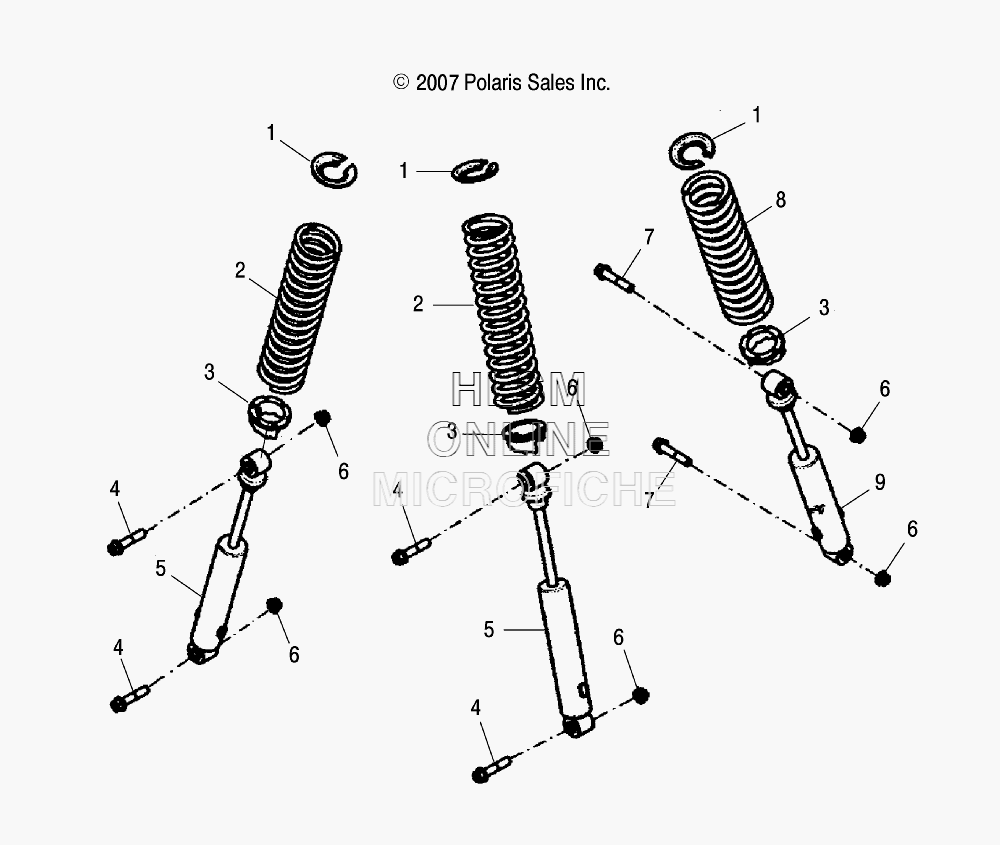

SUSPENSION- SHOCKS для Polaris PHOENIX 200 QUAD (A10PB20EB) (RED) - 2010 года выпуска`
-
№АртикулНазвание
-
10453768 RETAINER, SPRINGRETAINER, SPRING
-
20452996-133 SPRING, SUSP, FRONT (WHITE), 88 LBS/IN (STD)SPRING, SUSP, FRONT (WHITE), 88 LBS/IN (STD)
-
20452652-133 SPRING, SUSP, FRONT (WHITE), 106 LBS/IN (OPT) (HEAVY)SPRING, SUSP, FRONT (WHITE), 106 LBS/IN (OPT) (HEAVY)
-
30453787 COLLAR, ADJUSTMENT, SHOCKCOLLAR, ADJUSTMENT, SHOCK
-
40450820 BOLTBOLT
-
50453788-067 SHOCK, FRONT (BLACK)SHOCK, FRONT (BLACK)
-
60450249 NUTNUT
-
70452649 BOLTBOLT
-
80453769-133 SPRING, SUSPENSION, REAR (RED)SPRING, SUSPENSION, REAR (RED)
-
90453789-067 SHOCK, SUSPENSION, REAR (BLACK)SHOCK, SUSPENSION, REAR (BLACK)
