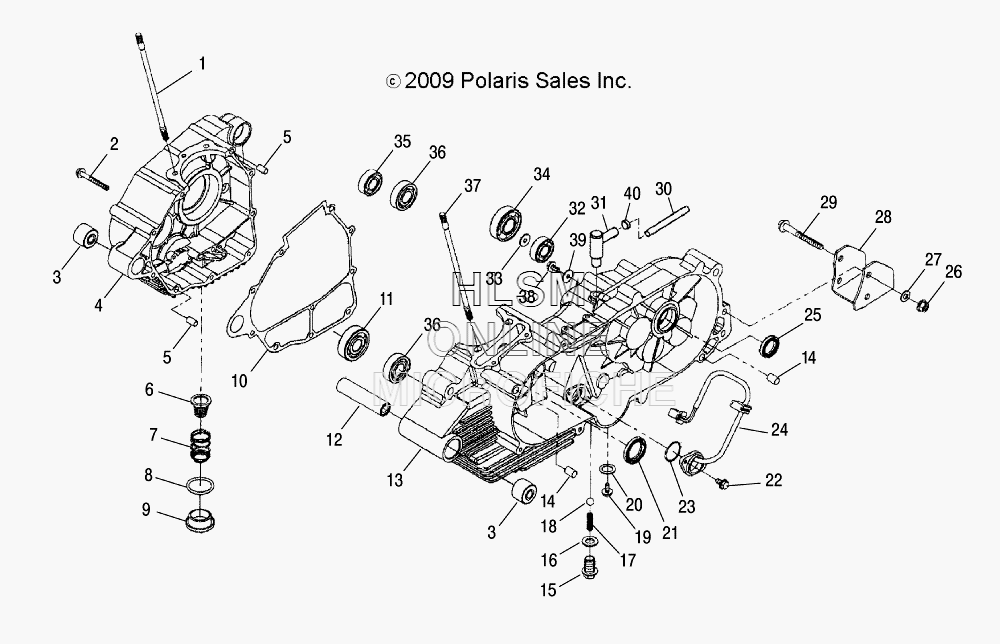

CRANKCASE для Polaris PHOENIX 200 (A10PB20AB) (RED) - 2010 года выпуска`
-
№АртикулНазвание
-
370454112 ASM., ENGINE W/O CARBASM., ENGINE W/O CARB
-
10452335 BOLT, STUDBOLT, STUD
-
20452344 BOLTBOLT
-
30452319 BUSHING, RUBBERBUSHING, RUBBER
-
40452318 CRANKCASE (RIGHT)CRANKCASE (RIGHT)
-
50452342 PIN, DOWELPIN, DOWEL
-
60452369 SCREENSCREEN
-
70452370 SPRING, SCREENSPRING, SCREEN
-
80452371 O-RING, DRAIN PLUGO-RING, DRAIN PLUG
-
90452368 PLUG, DRAIN, OILPLUG, DRAIN, OIL
-
100452321 GASKETGASKET
-
110452345 BEARING, BALLBEARING, BALL
-
120452320 SPACER, COLLARSPACER, COLLAR
-
130454246 CRANKCASE (LEFT)CRANKCASE (LEFT)
-
140450142 PIN, DOWELPIN, DOWEL
-
150452137 BOLTBOLT
-
160452136 WASHER, FLATWASHER, FLAT
-
170452135 SPRING, DETENTSPRING, DETENT
-
180452134 BALL, STEELBALL, STEEL
-
190452132 BOLT, DRAIN PLUGBOLT, DRAIN PLUG
-
200452133 WASHER, FLATWASHER, FLAT
-
210452341 SEAL, OILSEAL, OIL
-
220452138 BOLTBOLT
-
230452129 O-RINGO-RING
-
240452329 SWITCHSWITCH
-
250452340 SEAL, OILSEAL, OIL
-
260450268 NUTNUT
-
270452325 WASHER, FLATWASHER, FLAT
-
280452323 BRACKET, MOTOR MOUNTBRACKET, MOTOR MOUNT
-
290452324 BOLTBOLT
-
300452326 HOSE, VENTHOSE, VENT
-
310452125 BREATHER, CRANKCASE, LOWERBREATHER, CRANKCASE, LOWER
-
320452373 BEARING, NEEDLEBEARING, NEEDLE
-
330452374 WASHER, FLATWASHER, FLAT
-
340452349 BEARING, BALLBEARING, BALL
-
350452156 BEARING, MAIN TRANSMISSION SHAFTBEARING, MAIN TRANSMISSION SHAFT
-
360452348 BEARING, BALLBEARING, BALL
-
370452336 BOLT, STUDBOLT, STUD
-
380452330 BOLTBOLT
-
390452337 WASHER, FLATWASHER, FLAT
-
400450054 CLIPCLIP
