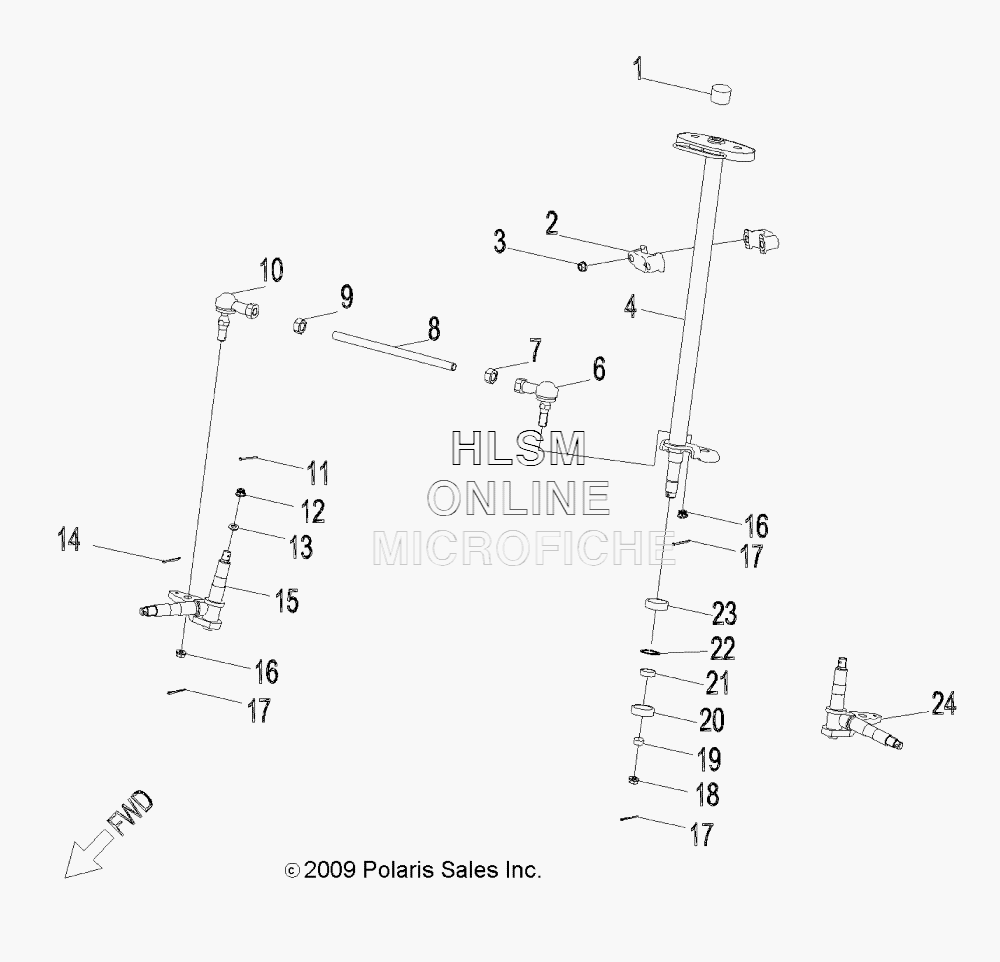

STEERING- STEERING POST AND TIE ROD ASM. для Polaris OUTLAW 50 (A10KA05AD) (PINK) - 2010 года выпуска`
-
№АртикулНазвание
-
10450499 SLEEVE, STEERINGSLEEVE, STEERING
-
20454709 CLAMP, STEERINGCLAMP, STEERING
-
30450268 NUTNUT
-
40451797-067 POST, STEERING (BLACK)POST, STEERING (BLACK)
-
60454746 ROD END (LEFT)ROD END (LEFT)
-
70454749 NUT, TIE ROD (LEFT)NUT, TIE ROD (LEFT)
-
80454748 TIE RODTIE ROD
-
90454750 NUT, TIE ROD (RIGHT)NUT, TIE ROD (RIGHT)
-
100454747 ROD END (RIGHT)ROD END (RIGHT)
-
110450507 PIN, COTTERPIN, COTTER
-
120450502 NUTNUT
-
130453513 WASHERWASHER
-
140450395 PIN, COTTERPIN, COTTER
-
150450916 KNUCKLE (LEFT)KNUCKLE (LEFT)
-
160450276 NUT, LOCKNUT, LOCK
-
170450719 PIN, COTTERPIN, COTTER
-
180450878 NUT, LOCKNUT, LOCK
-
190450390 SPACER, INNERSPACER, INNER
-
200450389 SEAL, OILSEAL, OIL
-
210450493 BEARING, BALLBEARING, BALL
-
220450161 CIRCLIPCIRCLIP
-
230450491 SEAL, OILSEAL, OIL
-
240450917 KNUCKLE (RIGHT)KNUCKLE (RIGHT)
