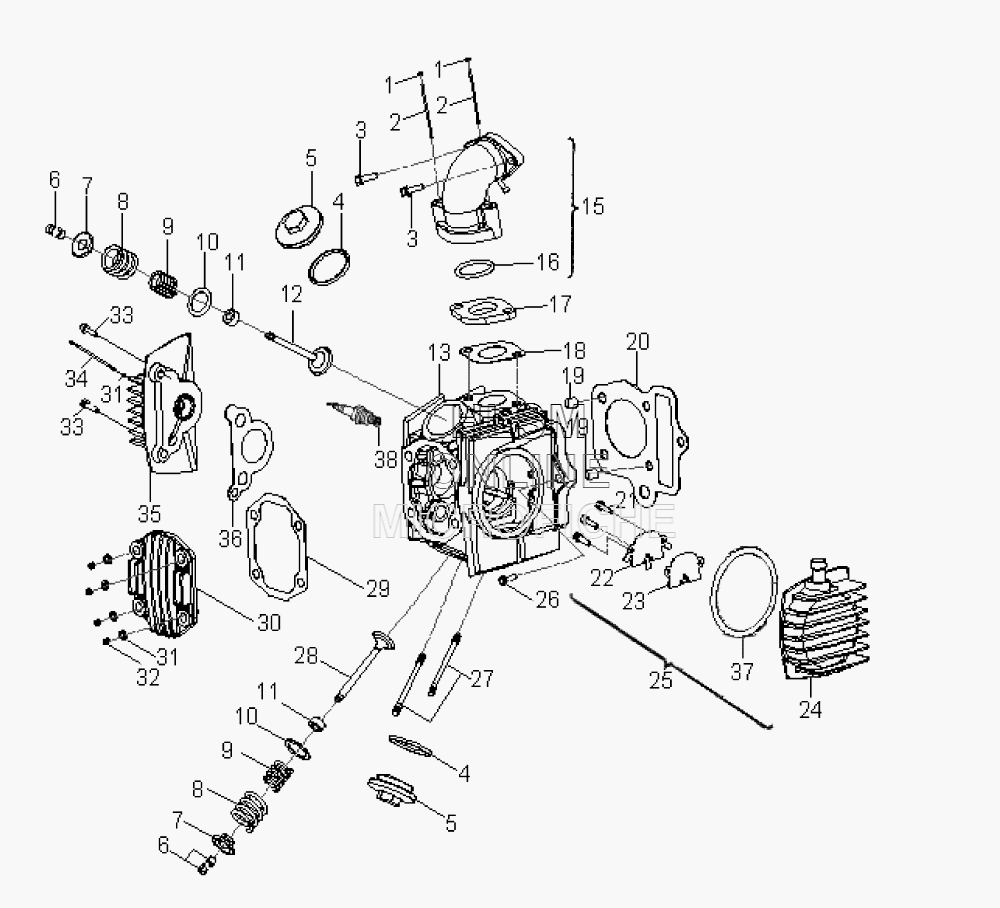

CYLINDER HEAD для Polaris OUTLAW 50 (A10KA05AB) (RED) - 2010 года выпуска
-
№АртикулНазвание
-
240454107 ASM., ENGINE, 4 STROKE, W/O CARBASM., ENGINE, 4 STROKE, W/O CARB
-
10450880 NUTNUT
-
20453573 STUDSTUD
-
30453520 BOLTBOLT
-
40453823 O-RINGO-RING
-
50454675 CAP, VALVE, ADJUSTABLECAP, VALVE, ADJUSTABLE
-
60452389 CLIP, RETAINERCLIP, RETAINER
-
70453443 RETAINER, VALVE SPRINGRETAINER, VALVE SPRING
-
80453442 SPRING, VALVE, INNERSPRING, VALVE, INNER
-
90453441 SPRING, VALVE, OUTERSPRING, VALVE, OUTER
-
100453444 SEAT, VALVE SPRING, OUTERSEAT, VALVE SPRING, OUTER
-
110453426 SEAL, VALVESEAL, VALVE
-
120454017 VALVE, INTAKEVALVE, INTAKE
-
130454676 HEAD, CYLINDERHEAD, CYLINDER
-
150454677 ASM., MANIFOLD, INTAKE (INCL. 17)ASM., MANIFOLD, INTAKE (INCL. 17)
-
160453563 O-RINGO-RING
-
170453898 INSULATOR, MANIFOLDINSULATOR, MANIFOLD
-
180453899 GASKET, MANIFOLDGASKET, MANIFOLD
-
190452342 PIN, DOWELPIN, DOWEL
-
200453900 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
210451766 SCREWSCREW
-
220453581 BREATHER, CRANKCASE, LOWERBREATHER, CRANKCASE, LOWER
-
230453580 GASKET, DIVIDE PLATEGASKET, DIVIDE PLATE
-
240454678 COVER, CYLINDER HEAD, SMALL (LEFT)COVER, CYLINDER HEAD, SMALL (LEFT)
-
250454679 ASM., CYLINDER HEAD COVER, SMALL (LEFT) (INCL. 22-24)ASM., CYLINDER HEAD COVER, SMALL (LEFT) (INCL. 22-24)
-
260453520 BOLTBOLT
-
270453828 STUDSTUD
-
280454018 VALVE, EXHAUSTVALVE, EXHAUST
-
290453578 GASKET, COVERGASKET, COVER
-
300454680 COVER, CYLINDER HEADCOVER, CYLINDER HEAD
-
310453510 WASHERWASHER
-
320453553 NUTNUT
-
330453519 BOLTBOLT
-
340453723 BOLTBOLT
-
350454681 COVER, HEAD (RIGHT)COVER, HEAD (RIGHT)
-
360453539 GASKET, COVER, CYLINDER HEAD (RIGHT)GASKET, COVER, CYLINDER HEAD (RIGHT)
-
370453538 GASKET, COVER, CYLINDER HEAD (LEFT)GASKET, COVER, CYLINDER HEAD (LEFT)
-
380453034 PLUG, SPARKPLUG, SPARK
