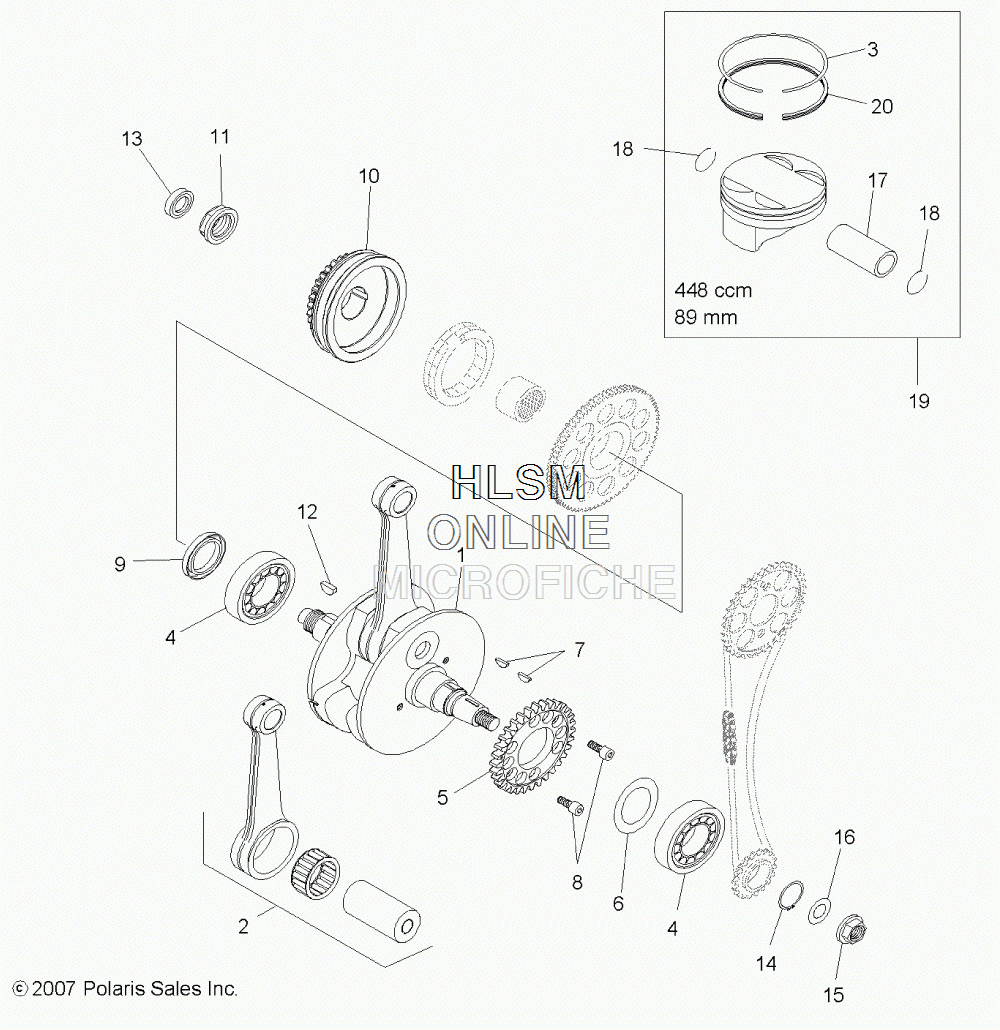

CRANKSHAFT W/ CYLINDER для Polaris OUTLAW 450 S (A10GJ45AA) (INDY RED) - 2010 года выпуска

  • №
    Артикул
    Название
  • 1
    1203516 ASM., CRANKSHAFT
    ASM., CRANKSHAFT
  • 2
    2203406 KIT, CONNECTING ROD
    KIT, CONNECTING ROD
  • 3
    3021982 RING, PISTON
    RING, PISTON
  • 4
    3514569 BEARING, CYLINDER ROLL
    BEARING, CYLINDER ROLL
  • 5
    6230359 GEAR, DRIVE BALANCE SHAFT
    GEAR, DRIVE BALANCE SHAFT
  • 6
    7556392 SHIM, AXIAL CLEARANCE, .10 MM
    SHIM, AXIAL CLEARANCE, .10 MM
  • 6
    7556393 SHIM, AXIAL CLEARANCE, .15MM
    SHIM, AXIAL CLEARANCE, .15MM
  • 6
    7556394 SHIM, AXIAL CLEARANCE, .30MM
    SHIM, AXIAL CLEARANCE, .30MM
  • 7
    7710593 KEY, WOODRUFF
    KEY, WOODRUFF
  • 8
    7518721 SCREW
    SCREW
  • 9
    5413245 SEAL, SHAFT
    SEAL, SHAFT
  • 10
    6230361 GEAR, PRIMARY, 31T
    GEAR, PRIMARY, 31T
  • 11
    7547378 NUT
    NUT
  • 12
    7710595 KEY, WOODRUFF
    KEY, WOODRUFF
  • 13
    5413244 SEAL, SHAFT
    SEAL, SHAFT
  • 14
    7710597 RING, SNAP
    RING, SNAP
  • 15
    7547381 NUT
    NUT
  • 16
    7556413 WASHER, SPRING
    WASHER, SPRING
  • 17
    3021872 PIN, PISTON
    PIN, PISTON
  • 18
    3021875 CIRCLIP
    CIRCLIP
  • 19
    2203621 KIT, PISTON RINGS, 89 MM
    KIT, PISTON RINGS, 89 MM
  • 20
    3021981 RING, PISTON, 89 MM
    RING, PISTON, 89 MM
