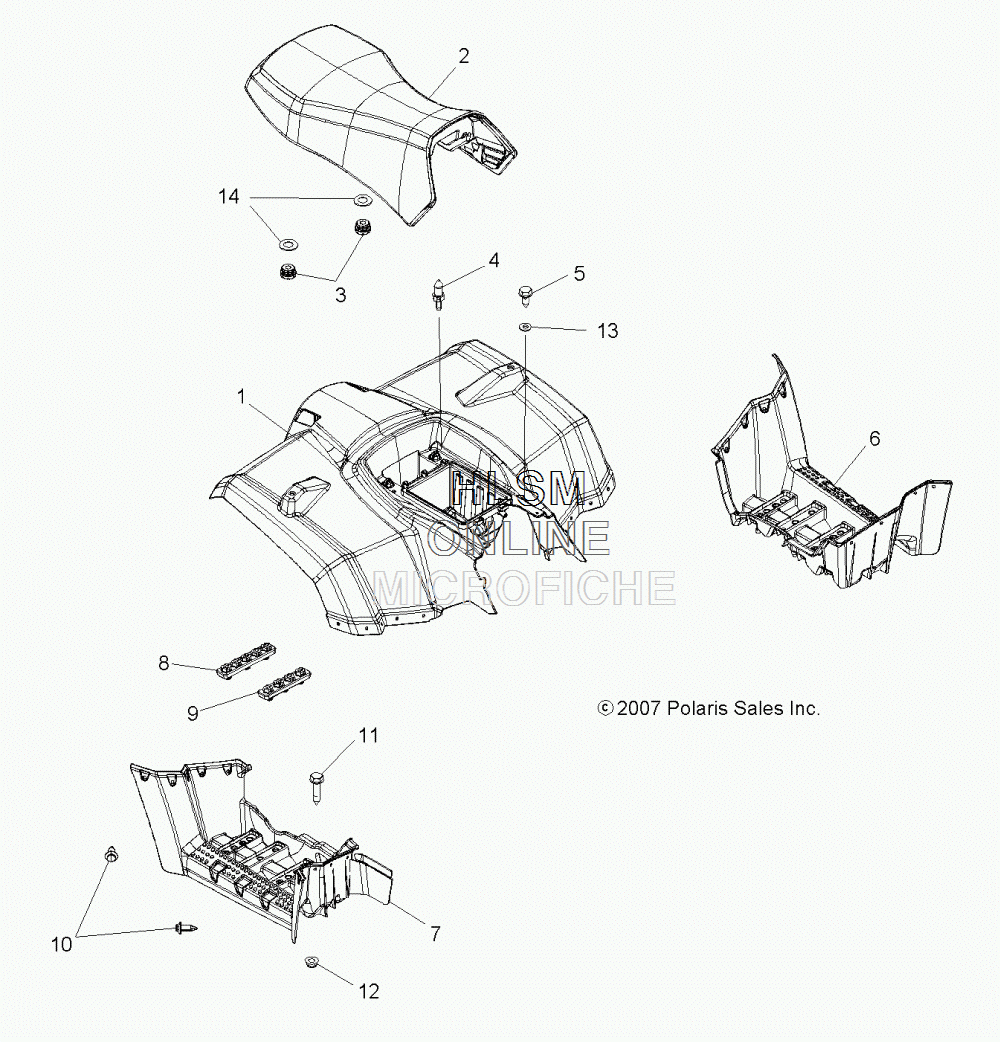

CAB - REAR - SEAT для Polaris HAWKEYE 300 2X4 (A10LB27AA) (INDY RED) - 2010 года выпуска

  • №
    Артикул
    Название
  • 1
    2633512-293 ASM., CAB/FOIL, REAR (INDY RED) (INCL. ALL FOIL FROM BODY, REAR CAB FOIL PAGE)
    ASM., CAB/FOIL, REAR (INDY RED) (INCL. ALL FOIL FROM BODY, REAR CAB FOIL PAGE)
  • 2
    2684216-070 ASM., SEAT, (BLACK) (INCL. 3,14)
    ASM., SEAT, (BLACK) (INCL. 3,14)
  • 2
    2684012-070 COVERING, SEAT (BLACK)
    COVERING, SEAT (BLACK)
  • 3
    5412994 GROMMET, SEAT LATCH
    GROMMET, SEAT LATCH
  • 4
    5910306 PIN, SEAT LATCH
    PIN, SEAT LATCH
  • 5
    7518529 SCREW
    SCREW
  • 6
    5435710-070 FOOTWELL, LEFT HAND (BLACK)
    FOOTWELL, LEFT HAND (BLACK)
  • 7
    5435711-070 FOOTWELL, RIGHT HAND (BLACK)
    FOOTWELL, RIGHT HAND (BLACK)
  • 8
    5413164 PAD, FOOTWELL, LONG
    PAD, FOOTWELL, LONG
  • 9
    5413165 PAD, FOOTWELL, SHORT
    PAD, FOOTWELL, SHORT
  • 10
    7661855 RIVET
    RIVET
  • 11
    7518530 SCREW
    SCREW
  • 12
    7547339 NUT, FLANGE
    NUT, FLANGE
  • 13
    7555859 WASHER, FLAT
    WASHER, FLAT
  • 14
    7555945 WASHER, THRUST
    WASHER, THRUST
